Hose/Tube for General Purposes (Water and Oil)

  • HOME »
  • Hose/Tube for General Purposes (Water and Oil)

(A) Hose/Tube for Water (Hot Water)

Hose and Industrial Pressure Hose for Pumping Water and Hot Water

Generally, hoses are used as applications for transporting water (such as water sprinkling hose and shower hose). However, if you use an inexpensive vinyl hose for a continuous use under harsh conditions, it may be possible to leak, tear, or deteriorate in a short period of time. A pressure-resistant hose, developed for industrial and industrial use, is highly recommended for plant and industrial machinery.

In this application, we recommend E-TB: PRESSURE HOSE. This is a PVC braided hose that stands for long duration with RoHS 2 compliant certificate. Maximum working pressure (up to I.D. 25mm) at 20$^\circ$C is 1 MPa (10 bar). E-TB can be used up to 60$^\circ$C.

(B) Hose/Tube for Industrial Oil

Turbine Oil Hose for Oil Resistant Hose and Hydraulic Oil

When a general-purpose soft PVC hose is used, hose hardening is accelerated by the elution of the plasticizer, resulting in early deterioration.

Oil has many types: from gasoline, kerosene, fuel oil, industrial oil (Operating oil, machine oil, gear oil, turbine oil, etc.), insulating oil to oil. When fuel oil or cleaning oil is poured into a soft PVC hose, the hose hardens and the deterioration becomes faster. (The definition of oil resistance is resistance against mineral oil and lubricating oil.)

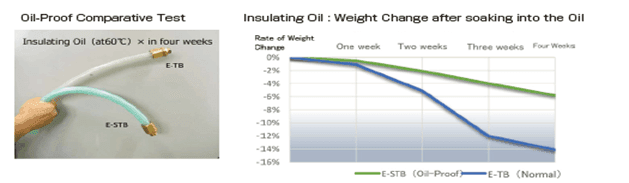

The data shown below are the result of soaking the hose for 4 weeks (at 60$^\circ$C). E-TB (Standard PVC Hose) elutes and becomes hardened. On the other hand, E-STB (Oil Resistance PVC Hose) is still flexible after 4 weeks. HAKKO recommends E-STB: Oil-Proof PRESSURE HOSE, as E-STB is suitable for any application requiring high oil resistance such as coolant oils, vacuum cleaners, oil skimmer and coolant chiller.

general_purposes_img01

Results: E-STB shows better oil resistant performance than E-TB.

If you have a trouble of dew condensation and water droplets from the hose/tube, we have a special made-to-offer for you. Please fill out the following made-to-order inquiry form: https://hakko-eightron.com/design-inquiry/

Major Product List

PRESSURE HOSE [Model Number: E-TB]

image-E-TB01

E-TB

Flexibility
Pressure-Proof
Transparency

Inner Diameter : 4 - 50mm

Oil-Proof PRESSURE HOSE [Model Number: E-STB]

image-E-STB01

E-STB

Flexibility
Pressure-Proof
Transparency
Oil-Proof

Inner Diameter : 6 - 50mm

SPRING HOSE [Model Number: E-SP]

image-E-SP01

E-SP

Flexibility
Vacuum
Transparency
Hard to Break

Inner Diameter : 10 - 50mm

Heat Insulation (Dew Condensation) Hose [Model Number: FOH]

image-Heat Insulation (Dew Condensation) Hose: FOH01

Heat Insulation (Dew Condensation) Hose: FOH

Food-Sanitation
Flexibility
RoHS 2 Free
FDA Compliant
Heat Insulation
Dew Condensation Prevention

Inner Diameter :
