    High-Pressure Air Hose [Model Number: HPA]

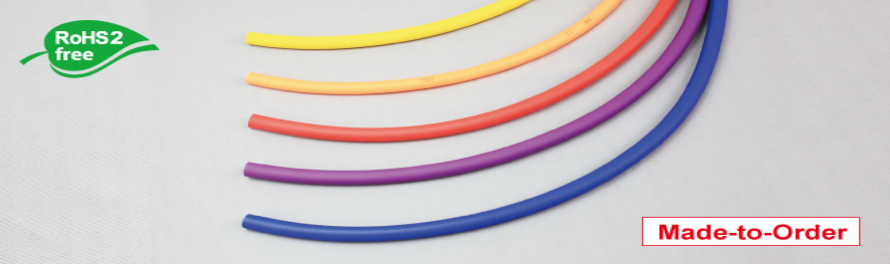

    image_High-Pressure Air Hose: HPA01

    High-Pressure Air Hose | Stand up to 3.0 MPa (30 bar) (435 psi) | High-Quality, Made-in-Japan Air Hose | Long Duration

    Fluids

    icon_eaaair

    Applications

    • For High-Pressure Air Compressor Tools

    Functions

    Flexibility
    Portable Tool
    Light Weight
    RoHS 2 Free
    High Pressure

    Characteristics

    • High Pressure...HPA stands up to 3.0 MPa (30 Bar) (435 psi) and shows a property of smoothness.
    • Pass the Endurance Test...HPA has passed the endurance test conducted by air tool and compressor manufacturers.
    • Softness...PVC air hose is very soft. Thus, HPA is suitable for air tools such as air driver.
    • Lightweight...Compared with an air hose made of rubber, HPA is a light hose, reducing the burdens of your wrestles and arms.
    • Less Tangled...Due to our ways of manufacturing, HPA is less likely to be tangled (twisted) when the pressure is applied. Thus, HPA shows higher levels of usability.
    • Various Colors Available...Depending on your request, we have various color options: blue, purple, yellow, green, orange, pink, red and pink-purple.
    • RoHS Compliant...HPA is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that HPA does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.

    Product Standard

    Made-to-Order Product (Example Sizes)

    Model
    Number
    I.D. $\times$ O.D.Working
    Pressure
    Working
    Pressure
    Minimum
    Bend
    Radius
    20$^\circ$C20$^\circ$C20$^\circ$C
    mmMPaBarmm
    HPA-5$\times$95$\times$90 - 3.00 - 3025
    HPA-6$\times$106$\times$1040
    • Temperature Range : -10 - 50 $^\circ$C (14$^\circ$F - 122$^\circ$F)
    • Color : Various Colors Available
    • Color Availability: Blue, Purple, Yellow, Green, Orange, Red and Pink-Purple

    *Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

    *If you are interested in this Made-to-Order Product, please fill out the following form. (Please note that we can also produce a size that is not listed on the table above.)

    *Also, please note that in order to have a 3.0 MPa (30 bar) (435 psi) working pressure, special fittings are required. Also, we can offer shorter lengths (10m, 20m, 30m, 25ft, 50ft and 100ft) and assemble hose with fittings.

    Made-to-Order Inquiry Form

    ← Anti-Spatter Air Hose [Model Number: ASAH]
    Antimicrobial Hose [Model Number: AM] →
