Hose for Manual Paintings (In Automotive and Motorcycle Industry)

painting01

Paint/Air Hoses and Fittings for Liquid Finishing

In automotive and motorcycle factories, there are a series of painting processes in order to produce the end product (the final plastic parts such as bumper, mirror, wheel cap, car lamp and body). After washing them out by solvents and chemicals, three steps (first coat, second coat and finish coat) of painting are necessary to improve the rust-resistance and the durability. For these three steps of painting, various kinds of paints (such as epoxy resin, urethane, melanin and polyester) are used. Finally, the polishing process (usually by air sander) is applied.

In order to deal with various kinds of paints and applications by LVLP or HVLP spray guns, HAKKO offers various types of paint and air hoses.

Besides our various types of paint and air hoses, HAKKO offers the original fittings (made from brass and SUS) that perfectly fit in well with our hose products.

If you look for a product for robotic painting, please visit this webpage (Robotic Painting).

If you look for a product for powder coating, please visit this webpage (Powder Coating).

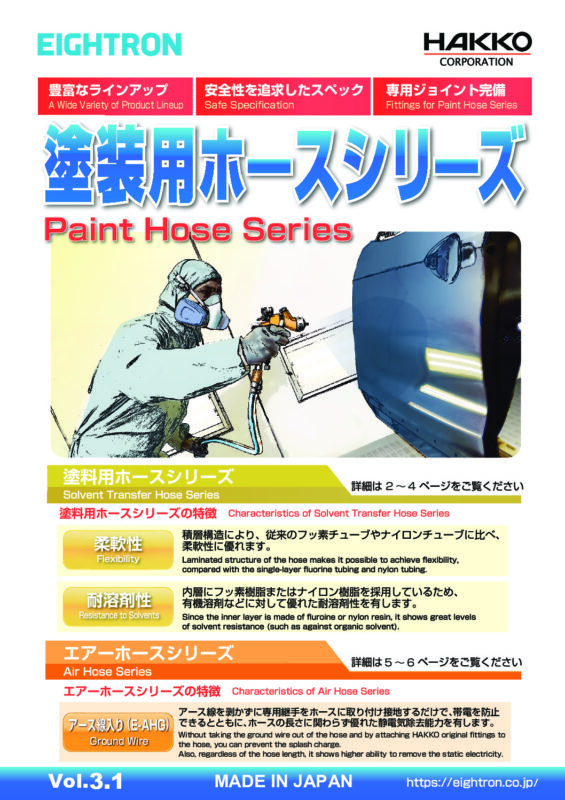

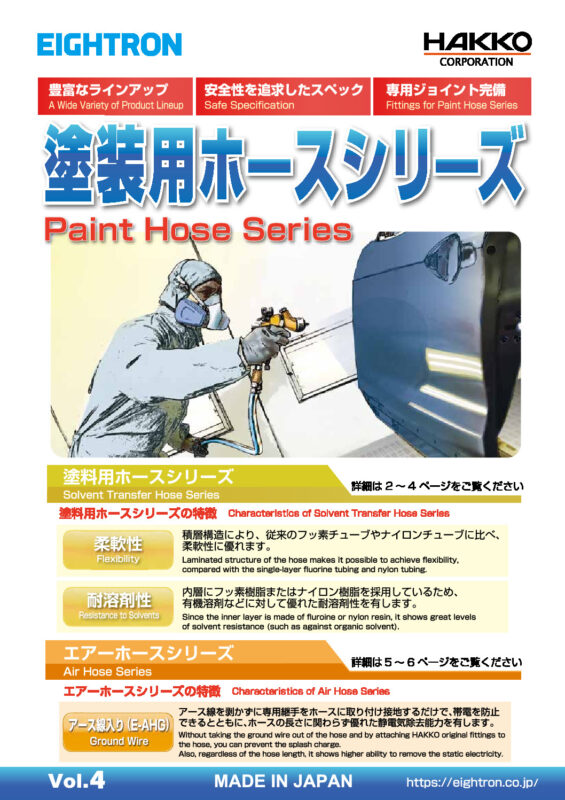

Leaflet Request
◆If you would like to download a product leaflet for HAKKO Paint and Air hose series, please download the leaflet above.
image_Paint-Hose-Series_Vol.3-1

Case Study

Current Problem: Need Measurements against Static Electricity

Situations: Our painting booth uses a lot of paints and thinners. The static electricity has been charged to the spray gun, which has become a very serious issue. So far, we did not take any measurements to deal with static electricity. However, the factory manager was informed that due to the increasing awareness of workplace safety, we have to use a hose that minimizes the charges of static electricity to the spray gun. Thus, we need flexible, anti-static paint and air hose.

Solution for Painting Line: Solvent Transfer Hose [E-SV]

HAKKO CORPORATION introduces Solvent Transfer Hose [E-SV]. E-SV is made of polyamide (nylon), showing resistance against solvent-based paints. E-SV includes a steel fiber and conductive polyurethane line, so E-SV can prevent the static electricity (charged to the spray gun) without taking the ground wire out and attaching it to the fittings. The factory manager was satisfied with E-SV, because a field worker no longer needs to pull out the ground wire, which was a time-consuming task. Also, E-SV can be used for electrostatic spray gun.

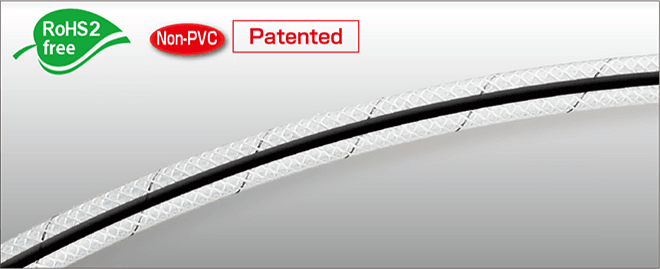

Solvent Transfer Hose [Model Number: E-SV]

image-E-SV01

E-SV

Solvent Resistance
Non-PVC
Pressure-Proof
Transparency
Ground Wire
Prevention of Static Charge

Inner Diameter : 6.5 - 9.5mm

Solution for Air Line: Air Hose (Ground Wire Type) [E-AHG]

HAKKO CORPORATION introduces Air Hose (Ground Wire Type) [E-AHG]. E-AHG is made of polyurethane with a steel fiber and conductive polyurethane line, so E-AHG can prevent the static electricity charged to the spray gun. Thus, since the resistance value of E-AHG remains low, E-AHG can be used as an air hose for electrostatic spray gun and air sander (air grinding) for polishing.

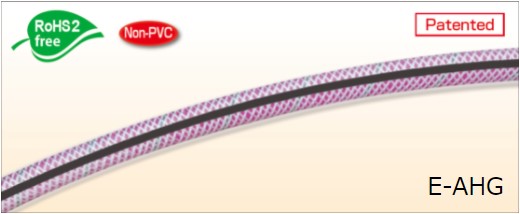

Air Hose (Ground Wire Type) [Model Number: E-AHG]

image-E-AHG

E-AHG

Non-PVC
Pressure-Proof
Ground Wire
Prevention of Static Charge

Inner Diameter : 6.5 - 8.7mm

Three Features:

A. Due to the structure of ground wire and conductive polyurethane line, without taking the ground wire out of the hose and by attaching our original fittings to the hose, you can eliminate the static electricity charged to spray gun.

B. With the ground wire and the conductive line, regardless of hose length, it shows higher ability to remove the static electricity. (Patent Registered)

C. HAKKO paint and air hoses are lightweight hoses. (For instance, the weight of E-SV-6.5 1m is 48 grams and the weight of E-AHG-6.5 1m is 56 grams.) Thus, you can reduce the burdens of your wrestles and arms, making it easy to handle.

Electrical Resitivity Data

Product NameData by Length
1m10m
Paint Flex-Fluorine Hose (Ground Wire Type): E-PFFG-6.570k$\Omega$200k$\Omega$
Solvent Transfer Hose: E-SV-770k$\Omega$200k$\Omega$
Solvent Transfer Hose: E-SV-960k$\Omega$130k$\Omega$
Air-Flex Conductive Hose: E-AFC-6.5200k$\Omega$3m$\Omega$
Air-Flex Conductive Hose: E-AFC-8.9150k$\Omega$3m$\Omega$
Air Hose (Ground Wire Type): E-AHG-6.518k$\Omega$34k$\Omega$
Air Hose (Ground Wire Type): E-AHG-8.532k$\Omega$47k$\Omega$
*Please note that data above are NOT guaranteed values. Also, depending on how you measure the resistance value, fittings and the tester maker, the result will vary. Please check the resistance value in your application. If you request electrical resitivity data of other specific length (such as 3m or 5m), please contact us.

Product Selection Chart for Paints

Product Model NumberI.D SizePaint Resistance of Inner LayerAnti-StaticPrice
E-SJ2mm - 9mm
1/8" - 3/8"
$\times$+++
E-SJAST4mm - 8mm
++++
E-PFF6.5mm$\times$++++
E-PFFG6.5mm+++++
E-PFN6.5mm / 8.9mm$\times$+
E-SV6.5mm - 9.5mm++

Paint Resistance: = Better = Best
Anti-Static: = Yes $\times$ = No
Price: Lowest (+) to Highest (+++++)

Tip 1: Paint Shift: More Environmentally Friendly

Due to the increasing awareness of environmental friendliness, paints used in automobile and motorcycle industry have been shifting from solvent-based paints to water-based paints. Most water-based paints include alcohol, amine and Methyl Ethyl Ketone (MEK). Those pigments make Polyamide hose (such as Solvent Transfer Hose [E-SV] and Paint Flex-Nylon Hose [E-PFN]) swollen, leading to the short duration of hose. Thus, for water-based paints, we recommend Paint Flex-Fluorine Hose [E-PFF], Paint Flex-Fluorine Hose (Ground Wire Type) [E-PFFG] and Flexible Fluorine (ETFE) Resin Tubing [E-SJ].

Tip 2: More Use of Electrostatic Spray Gun

In order to increase the painting efficiency and save the paint consumption, more and more electrostatic spray guns have been adopted. For electrostatic spray guns, the use of paint hose with ground wire is required. For solvent-based paints, we have a nylon-based, Solvent Transfer Hose [E-SV] and for water-based paints, we have ETFE fluorine-based, Paint Flex-Fluorine Hose with Ground Wire [E-PFFG]

Product Selection Chart for Air

Product Model NumberI.D SizeAnti-StaticPrice
E-NF6.5mm - 11mm$\times$+
E-AFC6.5mm - 8.9mm++
E-AHG6.5mm - 8.7mm+++

Anti-Static: = Better = Best $\times$ = No
Price: Lowest (+) to Highest (+++)

Made-to-Order Paint-Air Twin Hose Product

If you look for a twin hose (paint and air hose), please visit this made-to-order product page.

Major Product List

Product List for Solvent-Based Paints

Paint Flex-Nylon Hose [Model Number: E-PFN]

image-E-PFN01

E-PFN

Solvent Resistance
Non-PVC
Chemical Resistance
Pressure-Proof
Transparency

Inner Diameter : 6.5 - 8.9mm

Solvent Transfer Hose [Model Number: E-SV]

image-E-SV01

E-SV

Solvent Resistance
Non-PVC
Pressure-Proof
Transparency
Ground Wire
Prevention of Static Charge

Inner Diameter : 6.5 - 9.5mm

Product List for Solvent-Based and Water-Based Paints

Paint Flex-Fluorine Hose [Model Number: E-PFF]

image-E-PFF01

E-PFF

Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Pressure-Proof
Transparency
Water Based Paints

Inner Diameter : 6.5mm

Paint Flex-Fluorine Hose with Ground Wire [Model Number: E-PFFG]

image-E-PFFG01

E-PFFG

Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Pressure-Proof
Transparency
Water Based Paints
Ground Wire

Inner Diameter : 6.5mm

Flexible Fluorine (ETFE) Resin Tubing [Model Number: E-SJ]

image-E-SJ01

E-SJ

Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Flexibility
Transparency
Oil-Proof
Cold Resistance
Alcohol Resistance

Inner Diameter : 2 - 9 mm & 1/8" - 3/8"

Flexible Fluorine (ETFE) Resin Tubing (Anti-Static Type) [Model Number: E-SJAST]

image-E-SJAST01

E-SJAST

Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Flexibility
Transparency
Oil-Proof
Alcohol Resistance
Prevention of Static Charge

Inner Diameter : 4 - 8 mm

Product List for Air

NEW FLEX Air Hose [Model Number: E-NF]

image-E-NF01

E-NF

Non-PVC
Flexibility
Pressure-Proof
Portable Tool
Cold Resistance
Light Weight

Inner Diameter : 6.5 - 11mm

Air Flex-Conductive Hose [Model Number: E-AFC]

image-E-AFC01

E-AFC

Non-PVC
Flexibility
Pressure-Proof
Portable Tool
Cold Resistance
Light Weight
Prevention of Static Charge

Inner Diameter : 6.5 - 8.9mm

Air Hose (Ground Wire Type) [Model Number: E-AHG]

image-E-AHG01

E-AHG

Non-PVC
Flexibility
Pressure-Proof
Portable Tool
Cold Resistance
Light Weight
Ground Wire
Prevention of Static Charge

Inner Diameter : 6.5 - 8.7mm

Product List for Fittings

Fittings for Paint-Flex Hose Series [Model Number: E-FS/E-FB]

image-E-FS / E-FB01

E-FS / E-FB

Band-less Joints
RoHS 2 Free

Inner Diameter : 6.5 - 8.9mm

Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]

image-E-FSG / E-FBG01

E-FSG / E-FBG

Band-less Joints
RoHS 2 Free

Inner Diameter : 6.5 - 8.9mm

Fittings for Solvent Transfer Hose [Model Number: E-EM]

image-E-EM01

E-EM

Band-less Joints
RoHS 2 Free

Inner Diameter : 7.5, 9.5mm

Fittings for NEW FLEX Air Hose [Model Number: E-EM/E-EO/E-EMU]

image-E-EM / E-EO / E-EMU01

E-EM / E-EO / E-EMU

Band-less Joints
RoHS 2 Free

Inner Diameter : 6.5 - 8.5mm

Made-to-Order Product

Twin Hose (Paint and Air)

image-Paint and Air Twin Hose01

Paint and Air Twin Hose

Solvent Resistance
Non-PVC
Flexibility
Pressure-Proof
Transparency
Ground Wire
Prevention of Static Charge
RoHS 2 Free

Inner Diameter :
