Paint Flex-Nylon Hose [Model Number: E-PFN]
Solvent Transfer and Paint Hose | Flexible Paint Hose for Automobile Paints, Organic Solvents; Long Duration
Fluids
chemicals
ink
paint
flux
air
Applications
- For Manual Painting such as Automobiles, Motorcycles and Auto Parts
- For Manufacturing Equipment Pipes of Solvents and Paints
Functions
Solvent Resistance
Non-PVC
Chemical Resistance
Pressure-Proof
Transparency
Characteristics
- Solvent Resistance…Since the inner layer is made of Nylon resin, it shows greater levels of solvent resistance against paints, organic solvents, thinner, and so on.
- Easy to Cut…Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
- Flexibility…Due to the laminated structure, compared with Nylon tubing, it shows higher levels of flexibility and kink-proof.
- Lightweight…Compared with the conventional paint hose made of rubber, E-PFN is a lightweight paint hose, reducing the burdens of your wrestles and arms.
- Transparency…E-PFN (clear color) enables you to check the fluid very easily.
- Original Fittings…By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.
Certificates and Regulations
- RoHS2…E-PFN is compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2). (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is available on request.
- EU REACH and UK REACH…E-PFN is compliant with REACH SVHC 23rd list (209 substances). Certificate is available on request.
- Non-Use of UV-328…E-PFN does not contain UV-328. Certificate is available on request.

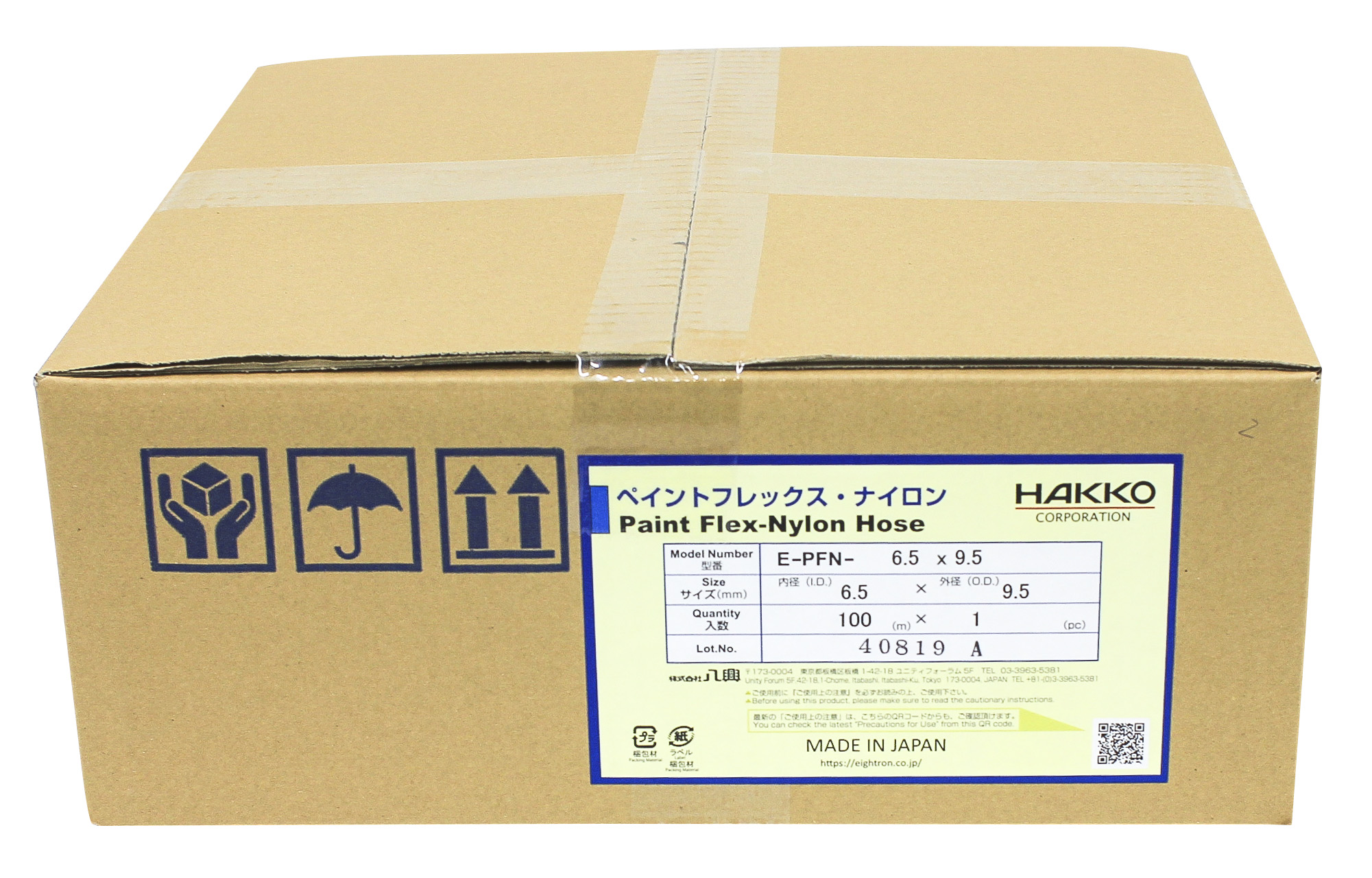

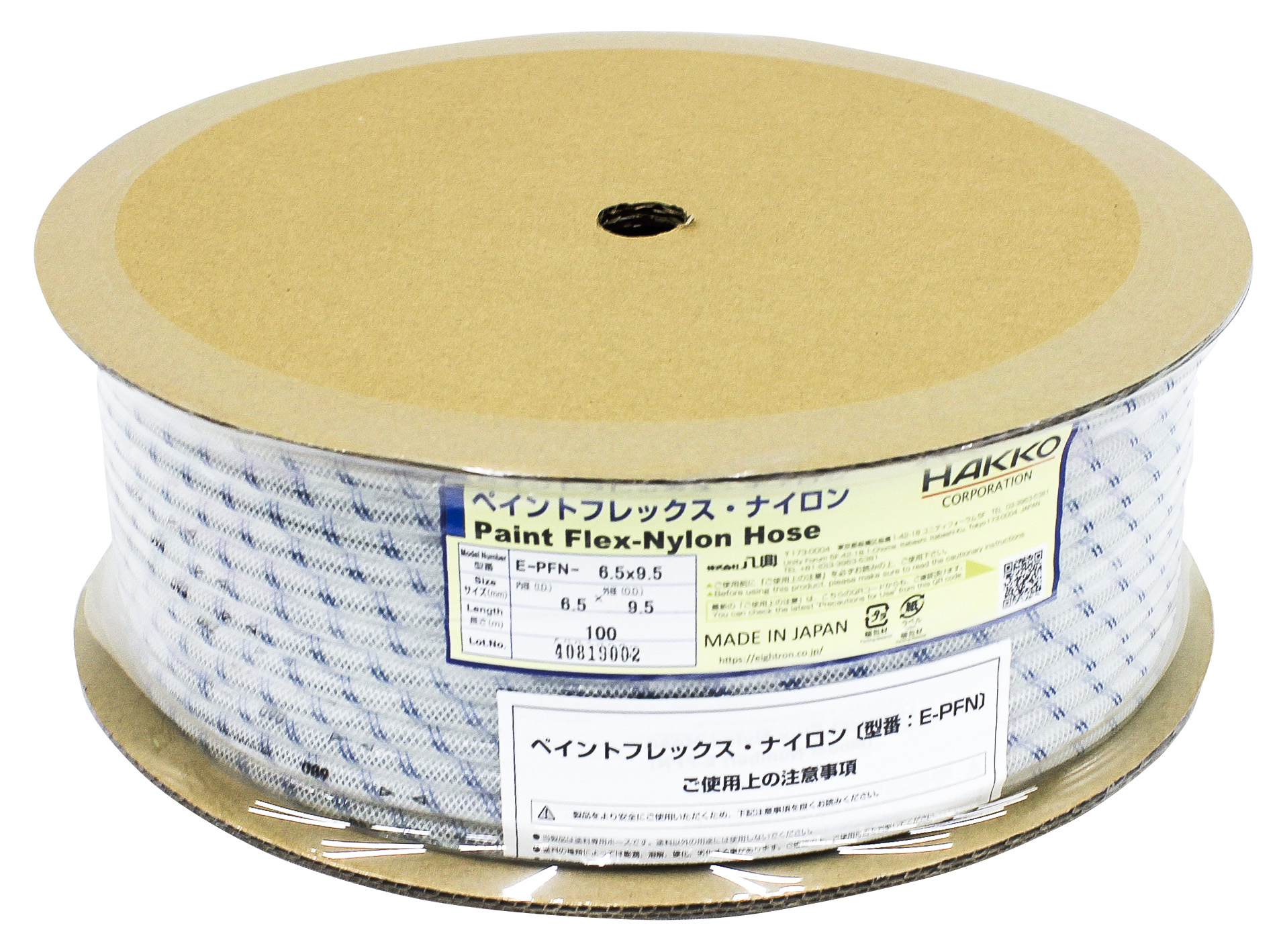

Packing Images
Product Standard
- Temperature Range : -20 – 60 $^\circ$C (-4$^\circ$F – 140$^\circ$F)
- Color : Clear + Blue Line
Leaflet Request

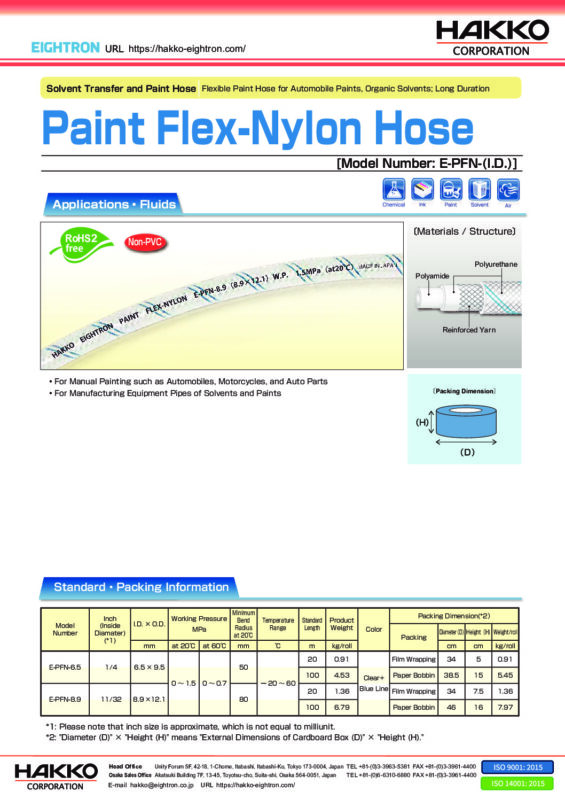

For more information on our Product Standard of E-PFN, please click "Product Leaflet Download" above.
Specification Request

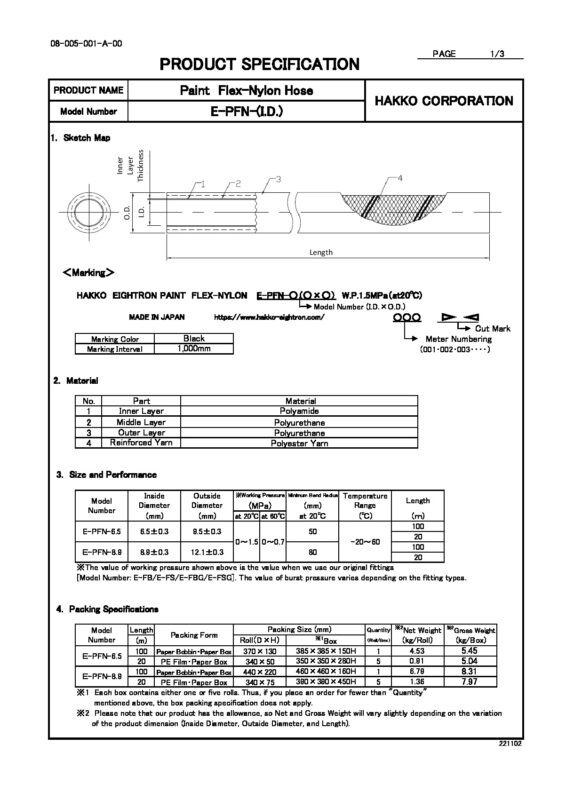

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-PFN, please click "Product Specification Download" above.
Cautions:
- Due to the laminated structure tubing, please use the joints to seal an inner surface of the hose.
- Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
- When you use our products, please refer to “Precautions for Use.” (“The Precautions for Use” is also available at the product specifications of E-PFN, which can be downloadable from here.)
- In terms of chemical resistance, please refer to “Chemical Resistance Data.”

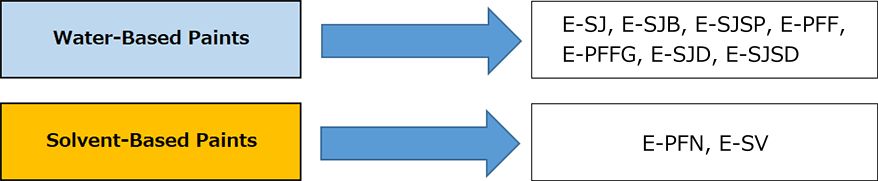

Selection Chart Based on Types of Solvents
Selection Chart for Solvents
Chemical Resistance: = Better = Best
Anti-Static: = Yes $\times$ = No
Vacuum: = Yes $\times$ = No
Technical Information

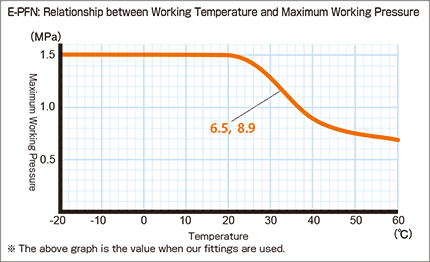

(A) Relationship between Working Temperature and Maximum Working Pressure
(B) Paint Hose Series/Data of Soaking into Paint
Test Procedure
Pieces of dumbbell (inner layer of the Solvent Transfer Series: E-SV) are soaked into respective types of paint in order to determine the post-soaking tensile strength and calculate its tensile strength in the formula below.
Tensile Strength (%) = (Tensile Strength After Soaking / Tensile Strength Before Soaking) × 100
Soaking Time: 50 Days (1,200 Hours)
Smaller percentage means that the material swells and deteriorates against the chemical. ETFE fluorine resin shows higher paint resistance than Nylon Resin.
This data is measured under the certain circumstances. Thus, depending on the using conditions, environments and duration, this data might not be reliable. The results shown above are NOT guaranteed. Please make sure to check under your working conditions.
HAKKO Original Fittings for E-PFN
Product Name | Materials, Characteristics |
Fittings for Paint-Flex Hose Series [Model Number: E-FS/E-FB]] | E-FS:
- Material: SUS304 (Wetted Part), Brass Nickel Plating (Nut)
- RoHS 2 Compliant
- Thread: G1/4 or G3/8
- SUS Mark around ring means E-FS.
E-FB:
- Material: Brass Nickel Plate
- RoHS 2 Compliant
- Thread: G1/4 or G3/8
|
|
Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]] | E-FSG:
- Material: SUS304 (Wetted Part and Hose Guide), Brass Nickel Plating (Nut)
- RoHS 2 Compliant
- Thread: G1/4 or G3/8
- With Hose Guide: prevent kinking
- SUS Mark around ring means E-FSG.
E-FBG:
- Material: Brass Nickel Plate, SUS304 (Hose Guide)
- RoHS 2 Compliant
- Thread: G1/4 or G3/8
- With Hose Guide: prevent kinking
|
|

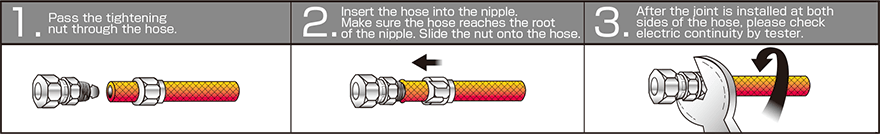

How to Install the Fittings and Fittings’ Selection Advice
