    Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]

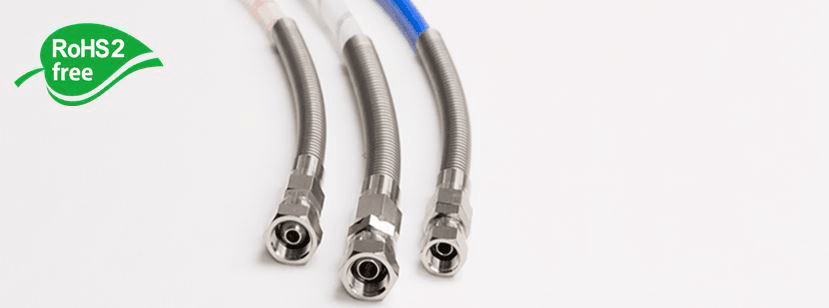

    image_E-FSG / E-FBG01

    HAKKO | Fittings for Paint-Flex Hose Series (E-AFC, E-PFN, E-SV, E-PFF and E-PFFG) [E-FSG/E-FBG]

    With Spring Guards (Bend Restrictor)

    Leaflet Request

    Applications

    • Fittings for Automobile/Motorcycle Painting (including Tire 1 and Tire 2)

    Functions

    Band-less Joints
    RoHS 2 Free

    Characteristics

    • Original Fittings…By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings.
    • Less Kinked and Secure Enough Flow…E-FBG/E-FSG has spring guards, so it is less likely to be kinked, leading to keep enough fluid flow.
    • RoHS2…E-FSG/E-FBG is compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2). (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is available on request.

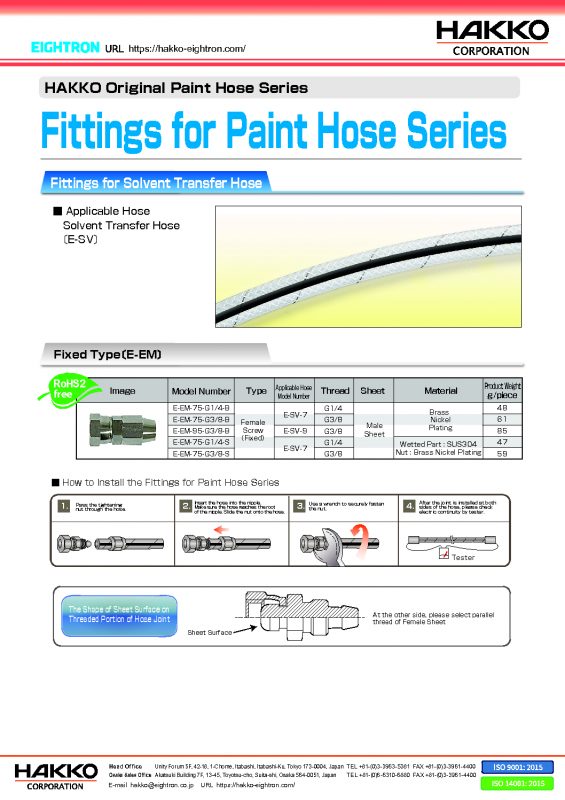

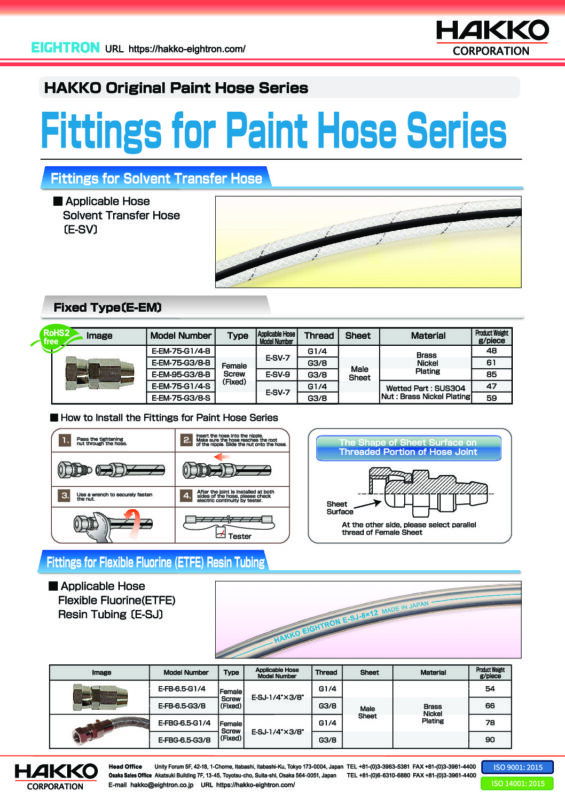

    How to Install the Fittings

    E-FS_E-FB_How to Install the Fittings
    e-fs_e-fb_data02

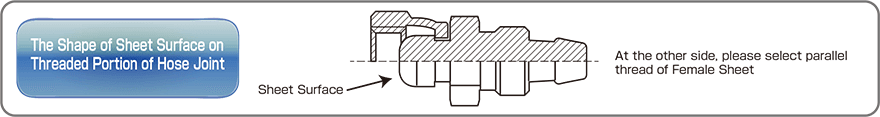

    With/Without Spring Guards

    e-fsg_e-fbg03
    *Without a hose guide

    e-fsg_e-fbg04
    *With a hose guide

    Applicable Hoses

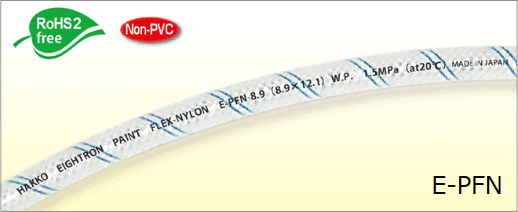

    (A) Paint Flex-Nylon Hose [Model Number: E-PFN]
    e-pfn_image

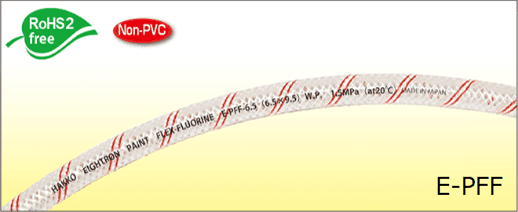

    (B) Paint Flex-Fluorine Hose [Model Number: E-PFF]
    e-pff_image

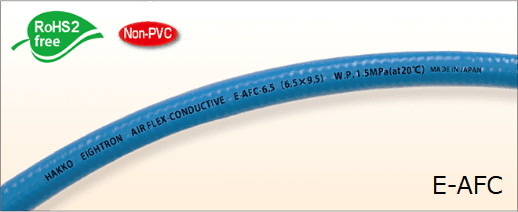

    (C) Air Flex-Conductive Hose [Model Number: E-AFC]
    e-afc_image

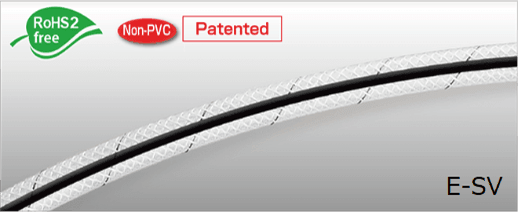

    (D) Solvent Transfer Hose [Model Number: E-SV]
    e-sv_image

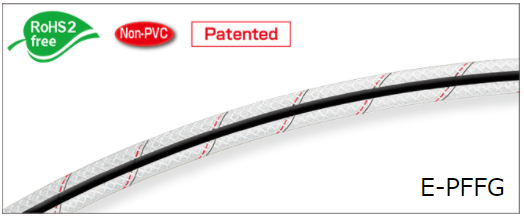

    (E) Paint Flex-Fluorine Hose (Ground Wire Type) [Model Number: E-PFFG]
    e-pffg_image

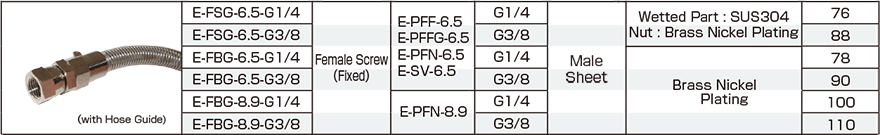

    Product Standard

    Model Number
    Type
    Applicable Hose Model Number
    Thread
    Sheet
    Material
    Product Weight g/Piece
    E-FSG-6.5-G1/4
    Female Screw (Fixed)
    E-PFF-6.5
    E-PFFG-6.5
    E-PFN-6.5
    E-SV-6.5
    E-AFC-6.5
    G1/4
    Male Sheet
    Wetted Part: SUS 304

    Brass Nickel Plating
    76
    E-FSG-6.5-G3/8
    G3/8
    88
    E-FBG-6.5-G1/4
    G1/4
    Brass Nickel Plating
    78
    E-FBG-6.5-G3/8
    G3/8
    90
    E-FBG-8.9-G1/4
    E-PFN-8.9
    E-AFC-8.9
    G1/4
    100
    E-FBG-8.9-G3/8
    G3/8
    110

    Leaflet Request
    For more information on our Product Standard of E-FSG / E-FBG, please click "Product Leaflet Download" above.

    Technical Information

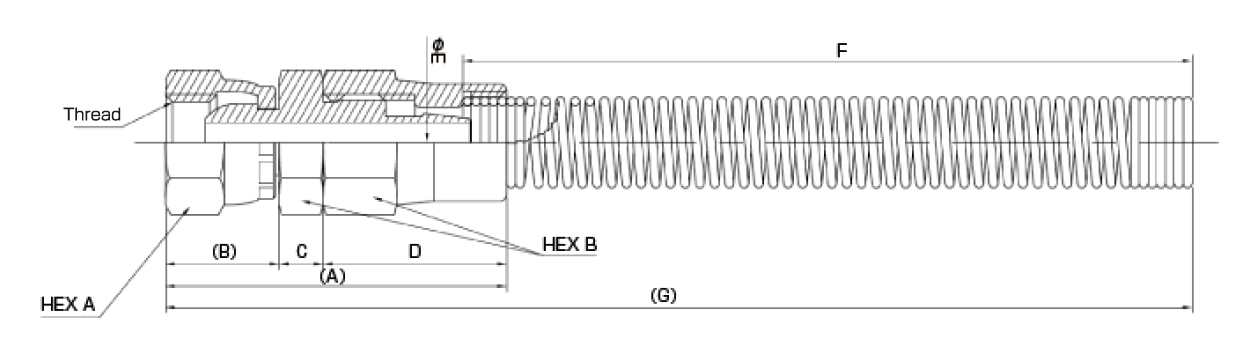

    e-fsg_e-fbg06

    HAKKO Original Fittings for E-FSG / E-FBG

    Product NameMaterials, Characteristics
    Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]]

    E-FSG:

    • Material: SUS304 (Wetted Part and Hose Guide), Brass Nickel Plating (Nut)
    • RoHS 2 Compliant
    • Thread: G1/4 or G3/8
    • With Hose Guide: prevent kinking
    • SUS Mark around ring means E-FSG.

    E-FBG:

    • Material: Brass Nickel Plate, SUS304 (Hose Guide)
    • RoHS 2 Compliant
    • Thread: G1/4 or G3/8
    • With Hose Guide: prevent kinking
    image-E-FSG / E-FBG
