Air Flex-Conductive Hose [Model Number: E-AFC]

Conductive Air Hose | PU (Polyurethane) Air Hose; Possible to eliminate Static Electricity; Lightweight, Flexible and Long Duration

Sample Request Leaflet Request Specification Request

Fluids

air

Applications

For Air Hose at the Painting Equipment and for Spray Gun
For Air Machine Tools requiring measurements against static electricity
For Air Hose for Air Inflator and Air Compressor
For Air Hose for Building Painting, Air Duster and Woodworking

Functions

Non-PVC

Flexibility

Pressure-Proof

Portable Tool

Cold Resistance

Light Weight

Prevention of Static Charge

Characteristics

Conductive…The inner layer is made of conductive urethane resin. Thus, if the hose is attached to our original fittings, it eliminates static electricity of the spray gun, preventing spark discharge. Electrical Resistivity Data is available under the section of Technical Information.
Duration…Polyurethane resin is strong in abrasion resistance. Thus, E-AFC is suitable for air tools such as air driver.
Cold Resistance…Polyurethane resin is great at cold resistance. Thus, even though temperature reaches around minus 20$^\circ$C, E-AFC does not get harden, keeping the work efficiency.
Lightweight…Compared with rubber and PVC hoses, E-AFC is a light hose, reducing the burdens of your wrestles and arms.
Easy to Cut…Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Original Fittings…By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS2…E-AFC is compliant with RoHS2 requirements (Directive: (EU) 2015/863). (RoHS 2 Compliant means that E-AFC does not contain RoHS 2 10 restricted substances or it does not exceed the upper threshold of RoHS 2 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH…E-AFC is compliant with REACH SVHC 23rd list (209 substances). Certificate is available on request.
Non-Use of UV-328…E-AFC does not contain UV-328. Certificate is available on request.

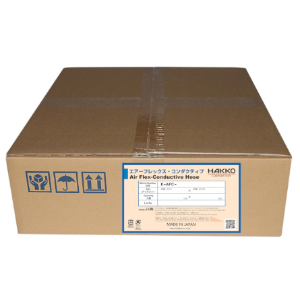

Packing Images

Product Standard

Hose Only

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-AFC-6.5	20	6.5$\times$ 9.5	0 - 1.5	0 - 15	50
	100
E-AFC-8.9	20	8.9 $\times$ 12.1			80
	100

Temperature Range : -20 – 60 $^\circ$C (-4$^\circ$F – 140$^\circ$F)
Color : Blue

Hose with Fittings (Made-to-Order Product)

Model Number	Hose Model Number	Fittings' Model Number	Fittings' Model Number	Total Length (m)
AFC-6.5-G1/4$\times$G1/4-B-10m	E-AFC-6.5	E-FB-6.5-G1/4	E-FB-6.5-G1/4	10
AFC-6.5-G3/8$\times$G3/8-B-10m		E-FB-6.5-G3/8	E-FB-6.5-G3/8
AFC-6.5-G1/4$\times$G1/4-BG-10m		E-FBG-6.5-G1/4	E-FBG-6.5-G1/4
AFC-6.5-G3/8$\times$G3/8-BG-10m		E-FBG-6.5-G3/8	E-FBG-6.5-G3/8
AFC-8.9-G1/4$\times$G1/4-B-10m	E-AFC-8.9	E-FB-8.9-G1/4	E-FB-8.9-G1/4
AFC-8.9-G3/8$\times$G3/8-B-10m		E-FB-8.9-G3/8	E-FB-8.9-G3/8
AFC-8.9-G1/4$\times$G1/4-BG-10m		E-FBG-8.9-G1/4	E-FBG-8.9-G1/4
AFC-8.9-G3/8$\times$G3/8-BG-10m		E-FBG-8.9-G3/8	E-FBG-8.9-G3/8

*If you are interested in E-AFC with fittings, please inform us of your requested part number and quantity on the following form. (We can change the total length into your preferred length.)

Inquiry Form

Leaflet Request

For more information on our Product Standard of E-AFC, please click "Product Leaflet Download" above.

Specification Request

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-AFC, please click "Product Specification Download" above.

Cautions:

Due to the yarn-reinforced hose, please use the joints to seal an inner surface of the hose.
Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
When you use our products, please refer to “Precautions for Use.” (“The Precautions for Use” is also available at the product specifications of E-AFC, which can be downloadable from here.)

Selection Chart for Air Hose

Product Name	I.D Size	Anti-Static	Color
E-NF	6.5mm/8.5mm/11mm	$\times$	Orange
E-SNF	6.5mm/8.5mm	$\times$	Pink Purple
E-SV	6.5mm/7.5mm/9.5mm		Clear
E-AFC	6.5mm/8.9mm		Blue

Anti-Static: = Better , = Best , $\times$ = No

Technical Information

(A) Relationship between Working Temperature and Maximum Working Pressure

e-afc_Relationship between Working Temperature and Maximum Working Pressure

(B) Electrical Resistivity Data

Test Sample	Resistance Value Data	Resistance Value Data	Resistance Value Data
Length	1m	5m	10m
E-AFC-6.5	85K$\Omega$	395K$\Omega$	795K$\Omega$
E-AFC-8.9	51K$\Omega$	236K$\Omega$	475K$\Omega$

Measurement method: HAKKO original fittings are attached to both ends, and the resistance value between the fittings is measured by an insulation resistance meter. (However, in order to accurately measure the resistance value for a product with conductive line layers, please do not attach the lead rods on the line layer.)

Notes: The data above are the test values and are not guaranteed values. Also, depending on how you measure the resistance value, fittings and the tester maker, the result will vary. Please check the resistance value in your application. If you request electrical resistivity data of other specific length (such as 3m), please contact us.

HAKKO Original Fittings for E-AFC

Product Name	Materials, Characteristics
Fittings for Paint-Flex Hose Series [Model Number: E-FS/E-FB]]	E-FS: Material: SUS304 (Wetted Part), Brass Nickel Plating (Nut) RoHS 2 Compliant Thread: G1/4 or G3/8 SUS Mark around ring means E-FS. E-FB: Material: Brass Nickel Plate RoHS 2 Compliant Thread: G1/4 or G3/8

Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]]	E-FSG: Material: SUS304 (Wetted Part and Hose Guide), Brass Nickel Plating (Nut) RoHS 2 Compliant Thread: G1/4 or G3/8 With Hose Guide: prevent kinking SUS Mark around ring means E-FSG. E-FBG: Material: Brass Nickel Plate, SUS304 (Hose Guide) RoHS 2 Compliant Thread: G1/4 or G3/8 With Hose Guide: prevent kinking
