    Fittings for NEW FLEX Air Hose [Model Number: E-EM/E-EO/E-EMU]

    image_E-EM / E-EO / E-EMU01

    HAKKO | Fittings for NEW FLEX Air Hose [E-NF]

    youtube
    youtube button
    Leaflet Request

    Applications

    • Fittings for Automobile/Motorcycle Maintenance (including Tier 1 and Tier 2)
    • Fittings for Air Compressor, Woodwork and Factory Facilities

    Functions

    Band-less Joints
    RoHS 2 Free

    Characteristics

    • Original Fittings…By using our original fittings for E-NF, you can avoid mismatches which are caused by incorrect choices of hose and fittings.
    • RoHS2…E-EMU/E-EM/E-EO are compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2). (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is available on request.
    • Non-Use of UV-328…E-EMU/E-EM/E-EO do not contain UV-328. Certificate is available on request.

    Product Standard

    Model Number
    Type
    Applicable Hose Model Number
    Thread
    Sheet
    Material
    Product Weight g/Piece
    E-EMU-65-G1/4
    Female Adaptor (Rotary)
    E-NF-6.5
    G1/4
    Flat (with Packing)
    Brass Nickel Plating
    62
    E-EMU-85-G1/4
    E-NF-8.5
    84
    E-EM-65-G1/4
    Female Screw (Fixed)
    E-NF-6.5
    G1/4
    Male Sheet 30°
    54
    E-EM-85-G3/8
    E-NF-8.5
    G3/8
    Brass
    85
    E-EO-65-R1/4
    Male Screw (Fixed)
    E-NF-6.5
    R1/4
    ---
    Brass Nickel Plating
    46
    E-EO-85-R3/8
    E-NF-8.5
    R3/8
    ---
    77

    Leaflet Request

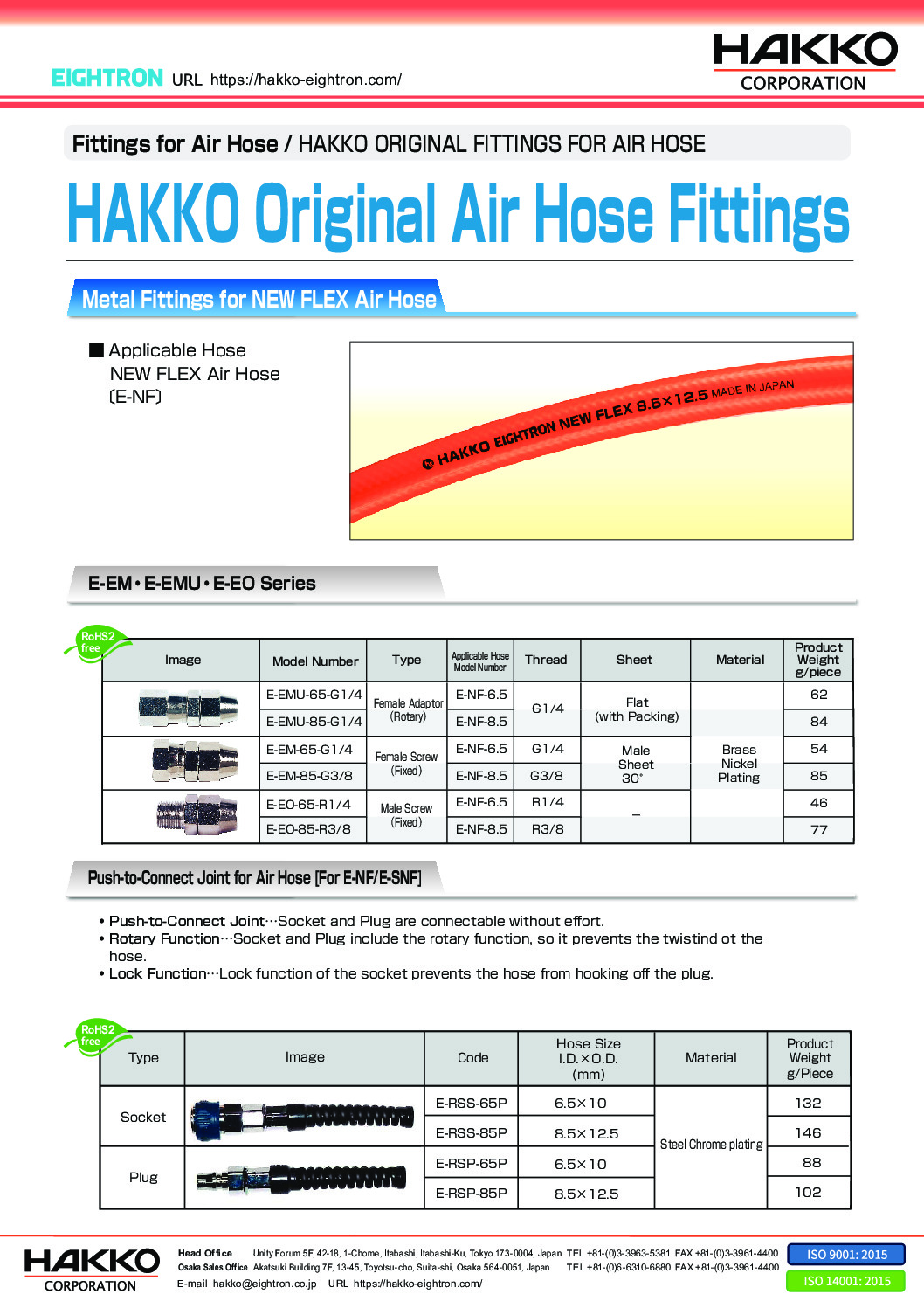

    For more information on our Product Standard of E-EM / E-EO / E-EMU, please click "Product Leaflet Download" above.

    Technical Information

    How to Install the Fittings

    E-EM_E-EO_E-EMU_How to Install the Fittings

    Applicable Hose

    NEW FLEX Air Hose [Model Number: E-NF]
    e-rss_e-rsp10_E-NF

    HAKKO Original Fittings for E-EM / E-EO / E-EMU

    Product NameMaterials, Characteristics
    Fittings for NEW FLEX Air Hose [Model Number: E-EM/E-EO/E-EMU]]

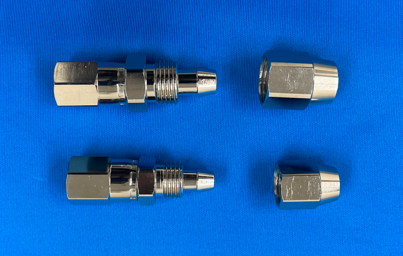

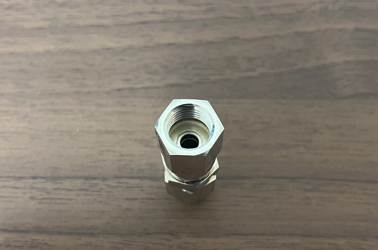

    E-EMU:

    • Metal Fittings for E-NF
    • Female Adaptor Rotary Type
    • Thread: G1/4
    • Material: Brass Nickel Plate

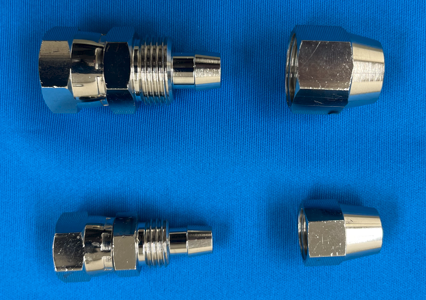

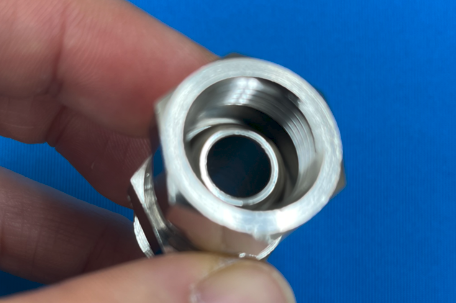

    E-EM:

    • Metal Fittings for E-NF
    • Female Screw Fixed Type
    • Thread: G1/4 or G3/8
    • Material: Brass Nickel Plate or Brass

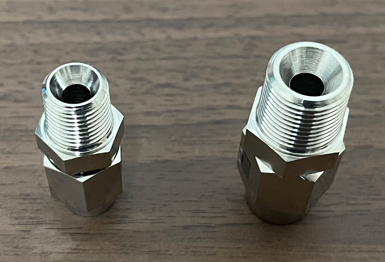

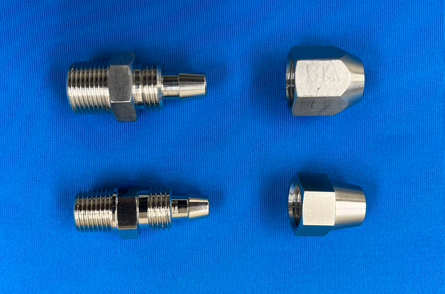

    E-EO:

    • Metal Fittings for E-NF
    • Male Screw Fixed Type
    • Thread: R1/4 or R3/8
    • Material: Brass Nickel Plate
    image-E-EM / E-EO / E-EMU
