    PVC Air Hose [Model Number: PVAH]

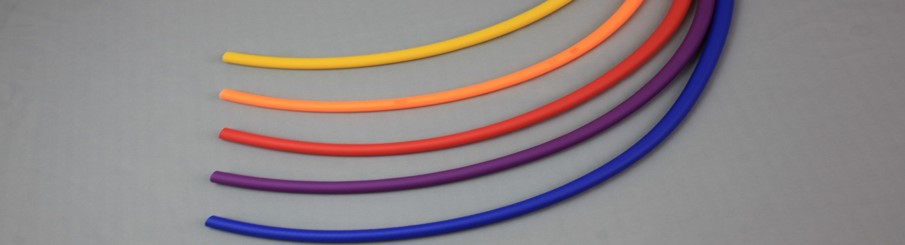

    image_E-PVAH01

    Air Hose | Lightweight | Soft | Made-In-Japan, High Quality PVC Air Hose | Long Duration

    Fluids

    icon_eaaair

    Applications

    • For Air Tool at Automobile Body Shop
    • For Air Hose for Air Inflator and Air Compressor
    • For Air Hose for Building Painting, Air Duster and Woodworking

    Functions

    Flexibility
    Pressure-Proof
    Portable Tool
    Light Weight
    RoHS 2 Free

    Characteristics

    • Softness…PVC air hose is very soft. Thus, PVAH is suitable for air tools such as air driver.
    • Lightweight…Compared with an air hose made of rubber, PVAH is a light hose, reducing the burdens of your wrestles and arms.
    • Various Colors Available…Depending on your request, we have various color options: blue, purple, yellow, green, orange, pink, red and pink-purple.
    • RoHS2…PVAH is compliant with RoHS2 requirements (Directive: (EU) 2015/863). (RoHS 2 Compliant means that PVAH does not contain RoHS 2 10 restricted substances or it does not exceed the upper threshold of RoHS 2 10 restricted substances.) Certificate is available on request.

    Product Standard

    Made-to-Order Product (Example Sizes)

    Model
    Number
    I.D. $\times$ O.D.Working
    Pressure
    Working
    Pressure
    Minimum
    Bend
    Radius
    20$^\circ$C20$^\circ$C20$^\circ$C
    mmMPaBarmm
    PVAH-6.56.5$\times$ 100 - 1.50 - 1560
    PVAH-8.58.5$\times$ 12.50 - 1.50 - 1570
    • Temperature Range : -10 – 50 $^\circ$C (14$^\circ$F – 122$^\circ$F)
    • Color : Various Colors Available
    • Color Availability: Blue, Purple, Yellow, Green, Orange, Red and Pink-Purple

    *If you are interested in this Made-to-Order Product, please fill out the following form. (Please note that we can also produce a size that is not listed on the table above.) Also, we can offer shorter lengths (10m, 20m, 30m, 25ft, 50ft and 100ft) and assemble hose with fittings.
