    Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose Black [Model Number: SJB-BK]

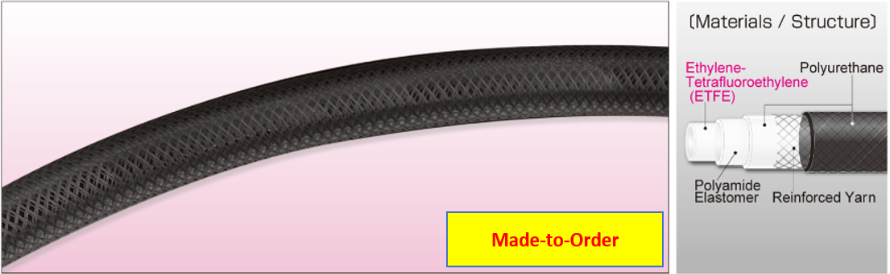

    image_SJB-BK01

    Hose for UV Paints and Inks / Chemical Resistance Hose | Single-layer teflon hose is hard and easy to break. Our Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose Black is an alternative hose for a teflon hose.

    Fluids

    icon_yakuhinchemicals
    icon_incink
    icon_toryoupaint
    icon_youzaiflux
    icon_UVtoryouUVpaint
    icon_UVincUVink

    Applications

    • For Transferring UV-Based Organic Solvents of the Painting Equipment and Paints
    • For Transferring UV-Based Chemicals used in Laboratory Equipment
    • For Filling Line of Paints and Adhesives

    Functions

    Solvent Resistance
    Non-PVC
    Chemical Resistance
    UV Cut
    Pressure-Proof
    Cold Resistance
    Water Based Paints
    RoHS 2 Free

    Characteristics

    • UV Cut…By shielding ultraviolet, SJB-BK is suitable for transferring UV-based paints, adhesives and inks.
    • Chemical Resistance…Since the inner layer is made of ETFE fluorine resin, SJB-BK is resistant to most of the chemical substances.
    • Flexibility…Due to the laminated structure, compared with a single-layer fluorine tubing, SJB-BK is superior in flexibility. This improves your work efficiency.
    • Hard to Break…Unlike a single-layer fluorine tubing, E-SJB-BK is hard to break. (Even if it breaks, you can restore its shape to some extent.)
    • Non-Adhesiveness…Since fluorine resin is superior in water-proof and non-adhesiveness, you can wash out the fluids very easily.
    • Abrasion Resistance…Fluorine resin (inner layer) shows high levels of abrasion resistance. Thus, you can even transfer chemical slurry.
    • High Purity…Fluorine resin does not contain any additives such as plasticizer, so SJB-BK is suitable for transferring high purity chemical fluids.
    • RoHS2…SJB-BK is compliant with RoHS2 requirements (directive 2011/65/EU:RoHS2). (RoHS 2 Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is available on request.

    Product Standard

    Made-to-Order Product (Example Sizes)

    Model
    Number
    I.D. $\times$ O.D.Working
    Pressure
    Working
    Pressure
    Minimum
    Bend
    Radius
    20$^\circ$C20$^\circ$C20$^\circ$C
    mmMPaBarmm
    SJB-9-BK9$\times$150 - 1.00 - 1065
    SJB-12-BK12$\times$1885
    SJB-15-BK15$\times$22105
    SJB-19-BK19$\times$26135
    • Temperature Range : -20 – 80 $^\circ$C (-4$^\circ$F – 176$^\circ$F)
    • Color : Black

    *If you are interested in this Made-to-Order Product, please fill out the following form. (Please note that we can also produce a special size that is not listed on the table above.)
