Resin Hose Manufacturer in Japan

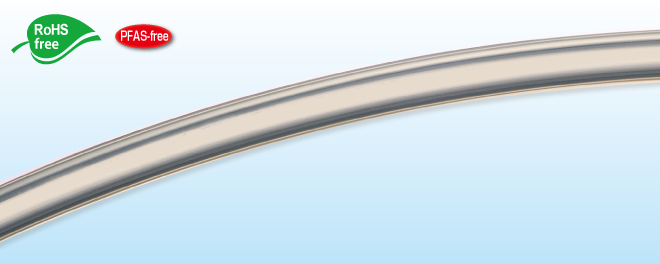

Special Olefin Tubing Clear [Model Number: SO-CL]

Chemical Resistant, Low-Elution Tubing / SO-CL is suitable for medical/food-grade applications.

Fluids

chemicals

food

drink

cosmetics

oil

Applications

For Transferring Food, Beverage, Liquor and Brewing
For Transferring Alcohol, Cosmetics and Fragrance
For Transferring High Purity Chemicals such as Fine Chemical
For Transferring Cooling Water for Supercomputer and Semiconductor Device
For Chemical Piping such as Acid and Alkali

Functions

Non-PVC

Chemical Resistance

Low Elution

Flexibility

Transparency

Oil-Proof

Alcohol Resistance

RoHS 2 Free

Characteristics

Low Elution...Compared with the standard Olefin tubing, the elution levels of metal ions are low. Also, the outgassing (volatile gases) is low. Thus, SO-CL is recommended for transferring food, beverage and cosmetics.
Flexibility...Compared with other non-PVC tubing, SO-CL shows higher levels of flexibility. This greatly improves work efficiency.
Non-PVC...SO-CL is an eco-friendly tubing, which is made of Olefin Resin Elastomer.
Plasticizer-Free...SO-CL does not contain plasticizer (an elution material) at all. SO-CL is an oil-free tubing.
Moderate Chemical Resistance...Since SO-CL is made of Olefin Resin, it shows moderate levels of chemical resistance.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Transparency...SO-CL (natural color) enables you to check the fluid very easily.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...SO-CL is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that SO-CL does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...SO-CL is compliant with REACH SVHC 31st list (242 substances). Certificate is available on request.
Non-Use of UV-328...SO-CL does not contain UV-328. Certificate is available on request.
Non-Use of PFAS...SO-CL does not contain PFAS substances. Certificate is available on request.
Regulation (EC) No 1935/2004 and (EU) No 10/2011...The material of SO-CL is compliant with (EC) No 1935/2004 and (EU) No 10/2011.
Regulation GB 4806.01-2016 (China)...The material of SO-CL is compliant with GB 4806.01-2016.

Product Standard

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	mm	MPa	Bar	mm
SO-4$\times$6-CL	4$\times$6	0 - 0.4	0 - 4	45

Temperature Range : 0 - 70 $^\circ$C (32$^\circ$F - 158$^\circ$F)
Color : Clear
One Roll Length: 100m

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

*If you are interested in the size that is not available on the table above, please fill out the following form.

Made-to-Order Inquiry Form

Cautions:

In case you have to use your fittings other than our original fittings, due to the laminated structure tubing, please use the joints to seal an inner surface of the tubing. Please do not use the joints to seal an outer surface of the tubing. This may result in the bursting or coming off from the tubing.
When you use our products, please refer to "Precautions for Use."
In terms of chemical resistance, please refer to "Chemical Resistance Data." If you cannot find the chemical name or the fluid name, please contact us from this link.

Technical Information

(A) Product Comparative Data

Test Sample	Minimum Bend Radius (mm)	Amount of Deflection (mm)	Kink Resistance (mm)	Bending Stress (N)
SO-4$\times$6-CL	45	-	20	-
E-SJ-4$\times$6	25	28	10	1.5
E-SJUS-4$\times$6	50	31	20	0.6
PTFE Tubing (4$\times$6)	20	7	11	3
PFA Tubing (4$\times$6)	23	6	11	3

Weight: 50g

Results: "Bending Stress" is one indication of flexibility. Flexibility varies depending on tubing. The smaller the bending stress is, the more flexible the tubing is.

HAKKO Original Fittings for SO-CL

Product Name	Materials, Characteristics
Fittings for Multi-Layer Tubing [Model Number: E-FTS-F]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.

PEEK (Carbon Reinforced) Nut Type Fittings [Model Number: AL]]	Material: PEEK Lightweight...Fitting weight is less than one-fifth, compared to same-size SUS joints, leading to overall weight reduction of equipment. Great Heat Resistance...PEEK material has excellent heat resistance among resins. Chemical Resistance...PEEK material has excellent resistance to a wide range of chemicals including acids, alkalis and organic solvents. Mechanical Strength...Carbon fiber is added to the engineering plastic of PEEK, which is strong in tensile and impact resistance.
