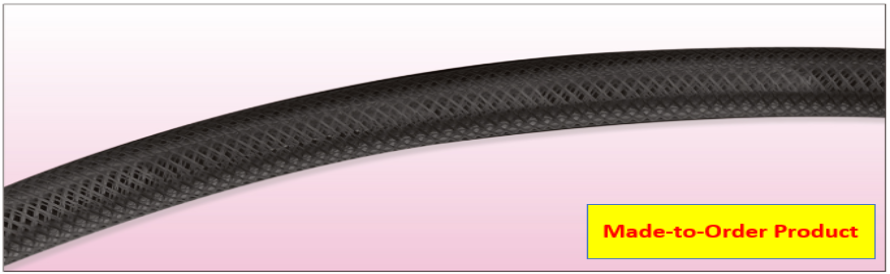

    Conductive Fluorine Hose [Model Number: CFH]

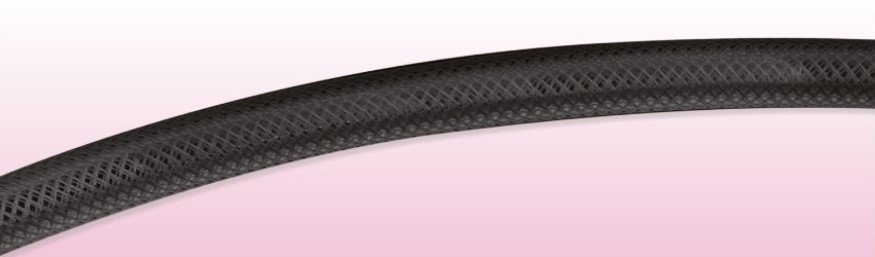

    image_Conductive Fluorine Hose: CFH01

    Chemical Resistant Conductive Hose | Since an outer layer is made of conductive PVC and an inner layer is made of ETFE Fluorine Resin, you can safely transfer chemicals and reduce the generation of the static electricity.

    Fluids

    icon_yakuhinchemicals
    icon_incink
    icon_toryoupaint
    icon_youzaiflux
    icon_UVtoryouUVpaint

    Applications

    • For Any Measurements against the Generation of Static Electricity
    • For Transferring Paints, Solvents and Adhesives
    • For Transferring Chemicals used in Laboratory Equipment
    • For Transferring Chemicals used in Semiconductor-Related Devices and Flat Panel Display (FPD) Manufacturing Devices
    • For Transferring Chemical and Industrial Wastes
    • For Transferring Chemicals used in Medical Equipment, Endoscope and so on

    Functions

    Solvent Resistance
    Non-Adhesiveness
    Chemical Resistance
    Flexibility
    UV Cut
    Prevention of Static Charge
    RoHS 2 Free

    Characteristics

    • Conductivity...Since the outer layer is made of conductive PVC, you can reduce the generation of the static electricity.
    • High Chemical Resistance...Since the inner layer is made of ETFE fluorine resin, CFH is resistant to most of the chemical substances.
    • Flexibility...Due to the laminated structure, compared with a single-layer fluorine hose, CFH is superior in flexibility. This improves your work efficiency.
    • RoHS Compliant...CFH is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that CFH does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.

    Product Standard

    Made-to-Order Product (Example Sizes)

    Model
    Number
    I.D. $\times$ O.D.Working
    Pressure
    Working
    Pressure
    Minimum
    Bend
    Radius
    20$^\circ$C20$^\circ$C20$^\circ$C
    mmMPaBarmm
    CFH-1919$\times$260 - 1.00 - 10135
    CFH-2525$\times$33175
    • Temperature Range : 0 - 60 $^\circ$C (32$^\circ$F - 140$^\circ$F)
    • Color : Black
    • Volume Resistance Value : 109 to 1010 (Data from Material Manufacturer)

    *Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

    *If you are interested in this Made-to-Order Product, please fill out the following form. (Please note that we can also produce a size that is not listed on the table above.)

    Made-to-Order Inquiry Form

    *Please note that this product does not prevent flow electrification. If you are looking for a hose with preventing flow electrification, please refer to "Flexible Fluorine (ETFE) Resin Hose Series (Dissipative Type)".
