    Sleeve for EIGHTLOCK Fittings [Model Number: E-EL]

    image_E-EL01
    e-els07

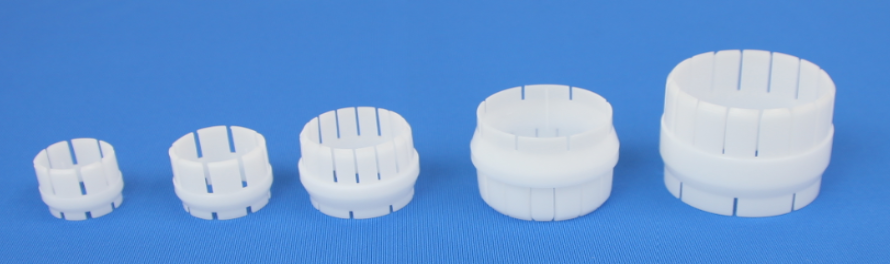

    HAKKO Original Sleeve Made of POM | Sleeve for HAKKO EIGHTLOCK Fittings (E-ELS, E-ELB, E-ELF and E-ELF-PFA)

    Applications

    • Replacement POM Sleeve for E-ELS, E-ELB, E-ELF and E-ELF-PFA

    Functions

    RoHS 2 Free

    Characteristics

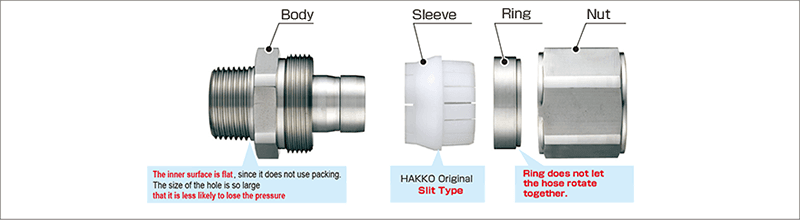

    • Original Slit...Having this original slit, HAKKO EIGHTLOCK Fittings can securely tighten the hose, leading to the guaranteed value of working pressure.
    • Possible to Purchase Sleeve Solely...HAKKO sells sleeve separately, so you can purchase sleeve as a spare part for HAKKO EIGHTLOCK Fittings.
    • RoHS Compliant...E-EL is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-EL does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.

    Product Standard

    Model Number
    Weight per Sleeve
    Applicable Fittings: E-ELS
    Applicable Fittings: E-ELB
    Applicable Fittings: E-ELF
    Applicable Fittings: E-ELF-PFA
    E-EL-12-SL
    1.9g
    E-ELS-12-R1/2
    E-ELB-12-R1/2
    ---
    ---
    E-EL-15-SL
    2.6g
    E-ELS-15-R1/2
    E-ELB-15-R/2
    ---
    ---
    E-EL-19-SL
    4.6g
    E-ELS-19-R3/4
    E-ELB-19-R3/4
    E-ELF-19-F15A
    E-ELF-19-F1S
    E-ELF-19-F15A-PFA
    E-ELF-19-F1S-PFA
    E-EL-25-SL
    6.9g
    E-ELS-25-R1
    E-ELB-25-R1
    E-ELF-25-F1S
    E-ELF-25-F1S-PFA
    E-EL-32-SL
    10.4g
    E-ELS-32-R1・1/4
    E-ELB-32-R1・1/4
    E-ELF-32-F1.5S
    E-ELF-32-F1.5S-PFA

    Material: POM

    HAKKO Original Fittings for E-EL

    Product NameMaterials, Characteristics
    EIGHTLOCK S Fittings [Model Number: E-ELS]]
    • Material: SUS304 (SS304) (Body, Ring, Nut), POM (Sleeve)
    • Our Nut Type Original Made-in-Japan Fittings
    • Since the inner layer of the fitting is flat and does not use the rubber packing, fluid accumulation is unlikely to occur. Thus, it is easy to wash out.
    • Since you do not need hose clamp and the controlling torque value, you can standardize how to install the fitting.
    image-E-ELS
    EIGHTLOCK B Fittings [Model Number: E-ELB]]
    • Material: BSBM (Body, Ring, Nut), POM (Sleeve)
    • Our Nut Type Original Made-in-Japan Fittings
    • Since the inner layer of the fitting is flat and does not use the rubber packing, fluid accumulation is unlikely to occur. Thus, it is easy to wash out.
    • Since you do not need hose clamp and the controlling torque value, you can standardize how to install the fitting.
    image-E-ELB
    EIGHTLOCK Ferrule Fittings [Model Number: E-ELF]]
    • Material: Body: SCS16, Nut and Ring: SCS13 (Sleeve: POM)
    • You can replace a hose even though the hose needs replacement, since EIGHTLOCK Ferrule Fitting is a nut ferrule fitting. You can install and detach the fitting on site.
    • You can make use of a wide range of usages such as pipes for chemicals, food, beverage and alcohol.
    • The nipple end is less likely to accumulate fluids, so you do not have to worry about contamination very much.
    image-E-ELF
    EIGHTLOCK Ferrule Fittings with PFA Lining [Model Number: E-ELF-PFA]]
    • Material:Body: SCS16, Wetted Part: PFA Lining, Nut and Ring: SCS13 (Sleeve: POM)
    • Due to PFA Lining, you can transfer fluids that are not possible for metal fittings.
    • You can replace a hose even though the hose needs replacement, since EIGHTLOCK Ferrule Fitting is a nut ferrule fitting. You can install and detach the fitting on site.
    • You can make use of a wide range of usages such as pipes for chemicals, food, beverage and alcohol.
    • The nipple end is less likely to accumulate fluids, so you do not have to worry about contamination very much.
    image-E-ELF-PFA
