Resin Hose Manufacturer in Japan

NEW FLEX Air Hose [Model Number: E-NF]

Air Hose | Lightweight, Flexible, Long Duration, PU (Polyurethane) Air Hose

Sample Request Leaflet Request Specification Request

Fluids

air

Applications

For Air Tool at Automobile Body Shop
For Air Hose for Air Inflator and Air Compressor
For Air Hose for Building Painting, Air Duster and Woodworking

Functions

Non-PVC

Flexibility

Pressure-Proof

Portable Tool

Cold Resistance

Light Weight

Characteristics

Duration...Polyurethane resin is strong in abrasion resistance. Thus, E-NF is suitable for air tools such as air driver.
Cold Resistance...Polyurethane resin is great at cold resistance. Thus, even though temperature reaches around minus 20$^\circ$C, E-NF does not get harden, keeping the work efficiency.
Lightweight...Compared with rubber and PVC hoses, E-NF is a light hose, reducing the burdens of your wrestles and arms.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. (Size Availability...6.5mm & 8.5mm) For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-NF is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-NF does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-NF is compliant with REACH SVHC 23rd list (209 substances). Certificate is available on request.
Non-Use of UV-328...E-NF does not contain UV-328. Certificate is available on request.

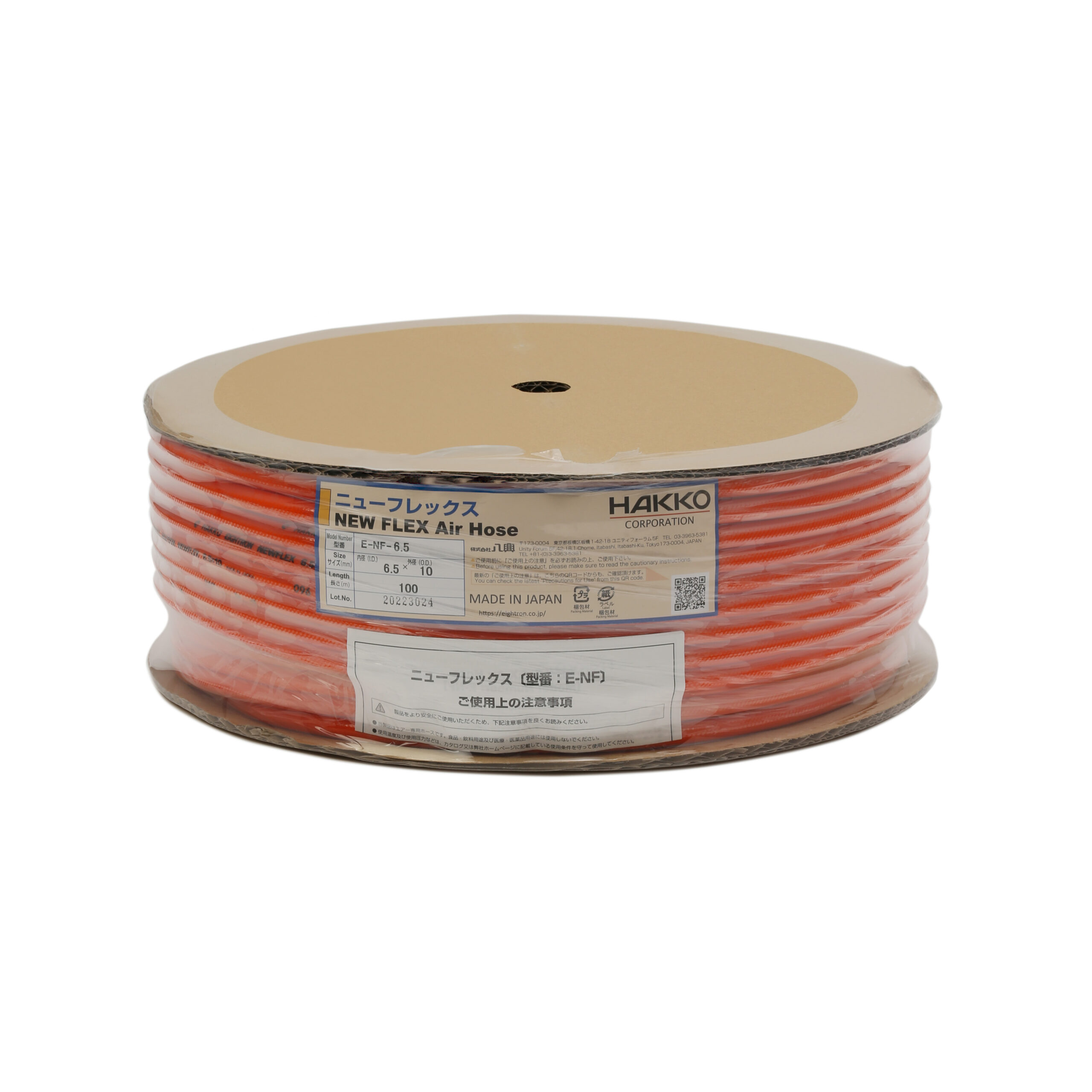

Packing Images

Product Standard

Hose only

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-NF-6.5	10	6.5 $\times$ 10	0 - 1.5	0 - 15	40
	20
	30
	50
	100
E-NF-8.5	10	8.5$\times$12.5			55
	20
	30
	50
	100
E-NF-11	100	11$\times$15.5			66

Temperature Range : -20 - 60 $^\circ$C (-4$^\circ$F - 140$^\circ$F)
Color : Orange

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

*If you need a different size (such as I.D. 3/8") or a different color air hose (such as blue, green or red), we can offer as a made-to-order product. Please fill out a Made-to-Order Inquiry form below and specify your preferred color and purchasing quantity.

Made-to-Order Inquiry Form

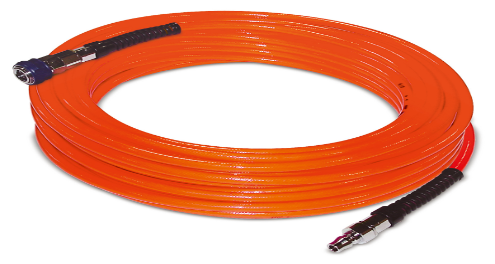

Hose with Bend Restrictor Fittings

Model Number	Hose Size [I.D.$\times$O.D. (mm)]	Length (m)	Fittings
E-NF-6.5-RC-10m	6.5$\times$10	10	E-RSS-65P (Socket) + E-RSP-65P (Plug)
E-NF-6.5-RC-20m		20
E-NF-6.5-RC-30m		30
E-NF-8.5-RC-10m	8.5$\times$12.5	10	E-RSS-85P (Socket) + E-RSP-85P (Plug)
E-NF-8.5-RC-20m		20
E-NF-8.5-RC-30m		30

Hose with Fittings (Made-to-Order Product)

Model Number	Hose Model Number	Fittings' Model Number	Fittings' Model Number	Total Length (m)
NF-6.5-G1/4$\times$G1/4-B-10m	E-NF-6.5	E-EM-65-G1/4	E-EM-65-G1/4	10
NF-8.5-G3/8$\times$G3/8-B-10m	E-NF-8.5	E-EM-85-G3/8	E-EM-85-G3/8	10

*If you are interested in E-NF with fittings, please inform us of your requested part number and quantity on the following form. (We can change the total length into your preferred length.)

Inquiry Form

Leaflet Request

For more information on our Product Standard of E-NF, please click "Product Leaflet Download" above.

Specification Request

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-NF, please click "Product Specification Download" above.

Cautions:

When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" is also available at the product specifications of E-NF, which can be downloadable from here.)

Frequently Asked Question

Question: Is it okay to transfer water to E-NF?
Answer: No, we do not recommend you to transfer water to E-NF, since it is made of polyurethane (PU). When you transfer the water, hydrolysis might occur, leading to the crack onto the hose. For transferring water, please refer to "Industrial and General Purpose Hose Series."

Technical Information

(A) Relationship between Working Temperature and Maximum Working Pressure

e-nf_Relationship between Working Temperature and Maximum Working Pressure

HAKKO Original Fittings for E-NF

Product Name	Materials, Characteristics
Push-to-Connect Fittings for Air Hose Series [Model Number: E-RSS/E-RSP]]	Socket and Plug are connectable without effort. The spring part prevents the twisting of the hose due to the rotary function. Lock function of the socket prevents the hose from hooking off the plug.

Fittings for NEW FLEX Air Hose [Model Number: E-EM/E-EO/E-EMU]]	E-EMU: Metal Fittings for E-NF Female Adaptor Rotary Type Thread: G1/4 Material: Brass Nickel Plate E-EM: Metal Fittings for E-NF Female Screw Fixed Type Thread: G1/4 or G3/8 Material: Brass Nickel Plate or Brass E-EO: Metal Fittings for E-NF Male Screw Fixed Type Thread: R1/4 or R3/8 Material: Brass Nickel Plate
