Flexible Fluorine (PVDF) Resin Tubing Clear [Model Number: E-PD]

Multi-Purpose / Chemical Resistance Tube | Single-layer teflon tubing is hard and easy to break. Our Flexible Fluorine (PVDF) Resin Tubing is an alternative tubing for a teflon tubing.

Sample Request Food Grade Certificate Request Leaflet Request Specification Request

Fluids

chemicals

ink

food

drink

alcohol

oil

water

powder

Applications

For Industrial Water-based Ink-Jet Printers (For Ink-Supplying Pipes)
For Transferring Chemicals used in Laboratory Equipment
For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
For Transferring Beverage and Food
For Transferring Alcohol, Cosmetics and Chemicals
For Transferring Chemicals used in Medical Equipment, Endoscope and so on
For Transferring Chemicals used in Manufacturing Fuel Cell and Pure Water
For Transferring Air at Clean Room

Functions

Non-PVC

Non-Adhesiveness

Chemical Resistance

Low Elution

Food-Sanitation

Flexibility

Gas Barrier

Transparency

Oil-Proof

Cold Resistance

Alcohol Resistance

Characteristics

Chemical Resistance...Since the inner layer is made of PVDF fluorine resin, E-PD is resistant to most of the chemical substances. (Please note that E-PD does not stand proof against organic solvents such as Amine and Ketones, so we recommend you to use E-SJ.) For more information, please refer to chemical resistance data.
Flexibility...Due to the laminated structure, compared with a single-layer fluorine tubing, E-PD is superior in flexibility. This improves your work efficiency.
Gas Barrier...The inner layer of PVDF fluorine has a higher level of gas barrier property, which is suitable for the fluid with high volatility.
Hard to Break...Unlike a single-layer fluorine tubing, E-PD is hard to break. (Even if it breaks, you can restore its shape to some extent.)
Non-Adhesiveness...Since fluorine resin is superior in water-proof and non-adhesiveness, you can wash out the fluids very easily.
Plasticizer-Free...E-PD does not contain plasticizer (an elution material) at all. E-PD is an oil-free tubing.
Non-PVC...E-PD is made of a non-PVC material.
Low Elution and Low Odor...Since E-PD contains very low levels of elution and odor, it is highly recommended for use in transfers of food, beverage and cosmetics.
High Purity...Fluorine resin does not contain any additives such as plasticizer, so E-PD is suitable for transferring high purity chemical fluids.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Transparency...E-PD enables you to check the fluid very easily.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-PD is compliant with RoHS2 requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-PD does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-PD is compliant with REACH SVHC 26th list (223 substances). Certificate is available on request.
Non-Use of UV-328...E-PD does not contain UV-328. Certificate is available on request.
UL94HB Equivalent...According to the third-party institution test, E-PD is confirmed as equivalent to UL94HB (Flame Retardancy Test UL94HB Horizontal Combustion Test). Certificate is available on this webpage.
Food Sanitation...E-PD conforms to the Food Sanitation Law No.370 (No.370 of the Ministry of Health and Welfare for Food Sanitation). (Conformity to N-Heptane). [Regarding the conformity of “Partial Revision of the Food Sanitation Law” (Effective on June 1, 2020) and Positive List System (PL), please download here.]

Packing Images

Product Standard

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-PD-2$\times$4	20	2$\times$4	0 - 0.6	0 - 6	15
	100
E-PD-4$\times$6	20	4$\times$6			25
	100
E-PD-6$\times$8	20	6$\times$8	0 - 0.4	0 - 4	50
	100
E-PD-6$\times$9	20	6$\times$9	0 - 0.6	0 - 6	35
	100
E-PD-8$\times$12	20	8$\times$12			50
	100

Temperature Range : -20 - 80 $^\circ$C (-4$^\circ$F - 176$^\circ$F)
Color : Clear

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

Leaflet Request

For more information on our Product Standard of E-PD, please click "Product Leaflet Download" above.

Specification Request

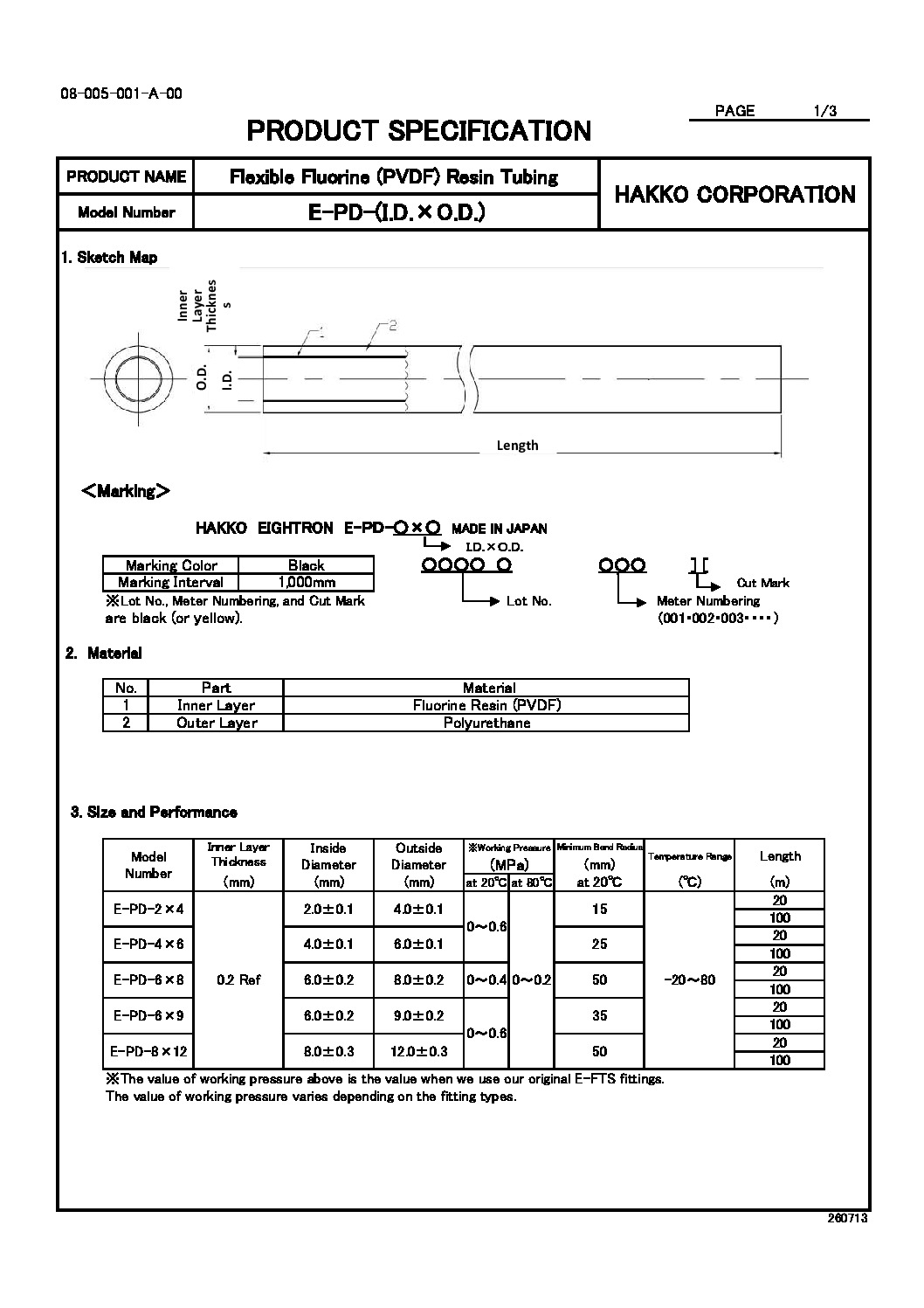

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-PD, please click "Product Specification Download" above.

Cautions:

In case you have to use your fittings other than our original fittings, due to the laminated structure tubing, please use the joints to seal an inner surface of the tubing.
Please do not use the joints to seal an outer surface of the tubing. This may result in the bursting or coming off from the tubing.
When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" is also available at the product specifications of E-PD, which can be downloadable from here.)
In terms of chemical resistance, please refer to "Chemical Resistance Data."
Although the inner layer is made of PVDF fluorine, please make sure whether or not E-PD is usable for high purity fluids before you use.
Although the inner layer is resistant to fluids, depending on working environments, the fluids would be permeated through the inner layer, resulting in the danger of swelling and degradation of the middle or outer layer.

Technical Information

(A) Relationship Graph between Working Temperature and Maximum Working Pressure

E-PD_Relationship between Working Temperature and Maximum Working Pressure

(B) Flexibility Comparative Data

Test Sample	Minimum Bend Radius	Amount of Deflection (mm)
E-PD-4$\times$6	23 (Catalog Value: 25)	28
PTFE Tubing (4$\times$6)	20	7
PFA Tubing (4$\times$6)	23	6

Results: "Amount of Deflection" is one indication of flexibility. Flexibility varies depending on hose (tubing). The larger the amount of deflection is, the more flexible the hose (tubing) is. The lower the minimum bend radius value is, the harder the hose (tubing) is. Thus, E-PD is much more flexible than PTFE and PFA tubing.

(C) Non-Adhesiveness Comparison Data

Resins	Critical Surface Tension (dyne/cm)	Contact Angle for Water ($\theta$)
ETFE Fluorine	22	96
PVDF Fluorine	25	82
High Density Polyethylene	31	73
Hard Vinyl Chloride	39	68
PET	43	-
Nylon	46	54

Results: Non-adhesiveness and smoothness, which are peculiar to fluorine resin, make it easier to wash out the fluid. You can check the data about critical surface tension and contact angle against water.

Critical Surface: The surface tension of the assumed fluid which has the contact angle of zero against solid.

(D) Comparative Data on Gas Barrier Property

	Transmission Coefficient (cc/mm/sec・cm²・cmHg)	Transmission Coefficient (cc/mm/sec・cm²・cmHg)
Type of Gas	Polyvinylidene Fluoride	Polyethylene
Oxygen	2.4$\times$10^-12	5900$\times$10^-12
Nitrogen	5.5$\times$10^-12	330$\times$10^-12
Carbonic Acid Gas	9$\times$10^-12	28000$\times$10^-12

HAKKO Original Fittings for E-PD

Product Name	Materials, Characteristics
Fittings for Multi-Layer Tubing [Model Number: E-FTS-F]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.

Fittings for Multi-Layer Tubing (with Tubing Guide) [Model Number: E-FTS-GN]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.
