Flexible Fluorine (ETFE) Resin Tubing Black [Model Number: E-SJ-BK]

Multi-Purpose | Chemical Resistance Tube | For customers who transfer UV inks, UV-based paints which become harden inside the tube or who have trouble in changing ink viscosity.

Sample Request Leaflet Request Specification Request

Fluids

chemicals

flux

UVpaint

UVink

Applications

For Industrial Ink-Jet Printers (For UV Ink Supplying Pipes)
For Transferring UV-based Paints and Solvents of the Painting Equipment
For Transferring UV-curable Inks
For Transferring Chemicals used in Laboratory Equipment
For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
For Pipe for Printing Head
For Filling Line of UV Paints and UV-based Adhesives

Functions

Solvent Resistance

Non-PVC

Non-Adhesiveness

Chemical Resistance

Low Elution

Flexibility

UV Cut

Oil-Proof

Cold Resistance

Alcohol Resistance

Characteristics

UV Cut...By shielding ultraviolet, E-SJ-BK is suitable for transferring UV-based paints, adhesives and inks.
Chemical Resistance...Since the inner layer is made of ETFE fluorine resin, E-SJ-BK is resistant to most of the chemical substances. For more information, please refer to chemical resistance data.
Flexibility...Due to the laminated structure, compared with a single-layer fluorine tubing, E-SJ-BK is superior in flexibility. This improves your work efficiency.
Hard to Break...Unlike a single-layer fluorine tubing, E-SJ-BK is hard to break. (Even if it breaks, you can restore its shape to some extent.)
Higher Non-Adhesiveness...Since ETFE fluorine resin is superior in terms of water-proof, you can wash out the fluids very easily.
Plasticizer-Free...E-SJ-BK does not contain plasticizer (an elution material) at all. E-SJ-BK is an oil-free tubing.
Non-PVC...E-SJ-BK is made of a non-PVC material.
High Purity...Fluorine resin does not contain any additives such as plasticizer, so E-SJ-BK is suitable for transferring high purity chemical fluids.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-SJ-BK is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-SJ-BK does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-SJ-BK is compliant with REACH SVHC 25th list (219 substances). Certificate is available on request.
Non-Use of UV-328...E-SJ-BK does not contain UV-328. Certificate is available on request.
TSCA (Toxic Substance Control Act) Compliance...E-SJ-BK does not use decaBDE, PIP(3:1), 2,4,6-TTBT, PCTP and HCBD. Certificate is available on request.
UL94HB Equivalent...According to the third-party institution test, E-SJ-BK is confirmed as equivalent to UL94HB (Flame Retardancy Test UL94HB Horizontal Combustion Test). Certificate is available on this webpage.

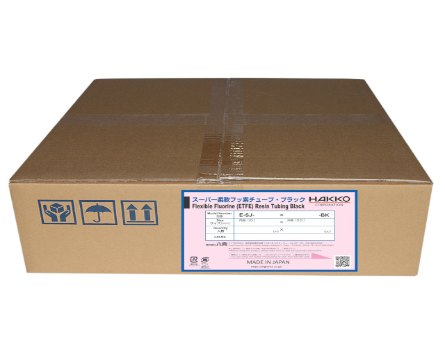

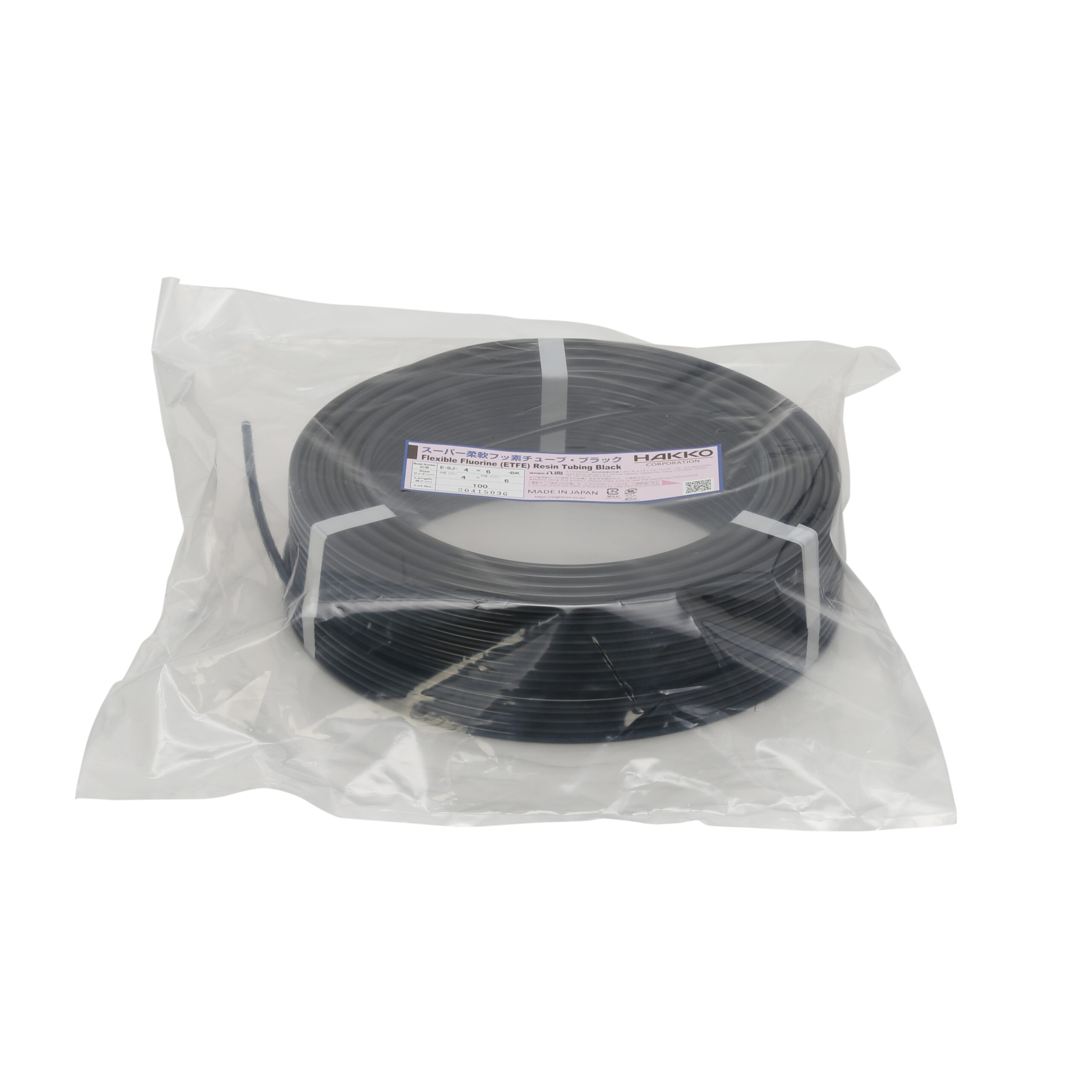

Packing Images

Product Standard

Standard Size (mm size)

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-SJ-2$\times$4-BK	20	2$\times$4	0 - 0.6	0 - 6	15
	100
E-SJ-3$\times$5-BK	20	3$\times$5			20
	100
E-SJ-4$\times$6-BK	20	4$\times$6			25
	100
E-SJ-4.3$\times$6.4-BK	20	4.3$\times$6.4			30
	100
E-SJ-5$\times$7-BK	20	5$\times$7	0 - 0.5	0 - 5	40
	100
E-SJ-6$\times$8-BK	20	6$\times$8	0 - 0.4	0 - 4	50
	100
E-SJ-8$\times$10-BK	20	8$\times$10	0 - 0.4	0 - 4	90
	100
E-SJ-8$\times$12-BK	20	8$\times$12	0 - 0.6	0 - 6	50
	100

Standard Size (inch size)

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-SJ-1/8" $\times$ 1/4"-BK	20	3.18$\times$6.35	0 - 0.6	0 - 6	20
	100
E-SJ-1/4" $\times$ 3/8"-BK	20	6.35$\times$9.53	0 - 0.6	0 - 6	45
	100

Made-to-Order Size Example

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	mm	MPa	Bar	mm
SJ-1$\times$3-BK	1$\times$3	0 - 1.0	0 - 10	10
SJ-1.5$\times$3-BK	1.5$\times$3	0 - 0.6	0 - 6	10
SJ-2.5$\times$4-BK	2.5$\times$4	0 - 0.6	0 - 6	25
SJ-3$\times$4-BK	3$\times$4	0 - 0.6	0 - 6	30
SJ-5$\times$8-BK	5$\times$8	0 - 0.6	0 - 6	30
SJ-7$\times$10-BK	7$\times$10	0 - 0.4	0 - 4	50
SJ-9$\times$12-BK	9$\times$12	0 - 0.5	0 - 5	65
SJ-1/16" $\times$ 1/8"-BK	1.59$\times$3.18	0 - 0.6	0 - 6	10
SJ-3/32" $\times$ 5/32"-BK	2.38$\times$3.97	0 - 0.3	0 - 3	25
SJ-3/16" $\times$ 5/16"-BK	4.76$\times$7.94	0 - 0.5	0 - 5	30
SJ-3/8" $\times$ 1/2"-BK	9.53$\times$12.7	0 - 0.4	0 - 4	70

Temperature Range : -20 - 80 $^\circ$C (-4$^\circ$F - 176$^\circ$F)
Color : Black

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

*If you are interested in Made-to-Order size, please fill out the following form. (We can also produce a special size that is not listed on the table above. Please note that MOQ applies for made-to-order size.)

Made-to-Order Inquiry Form

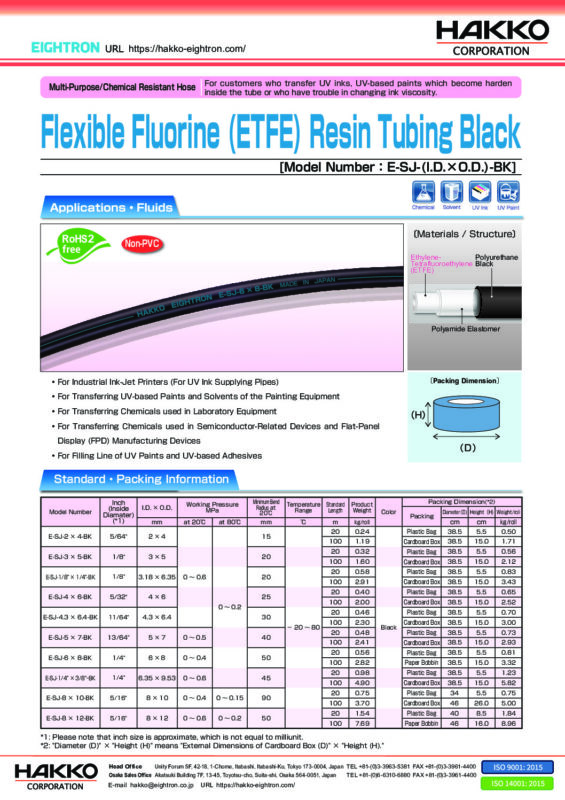

Leaflet Request

For more information on our Product Standard of E-SJ-BK, please click "Product Leaflet Download" above.

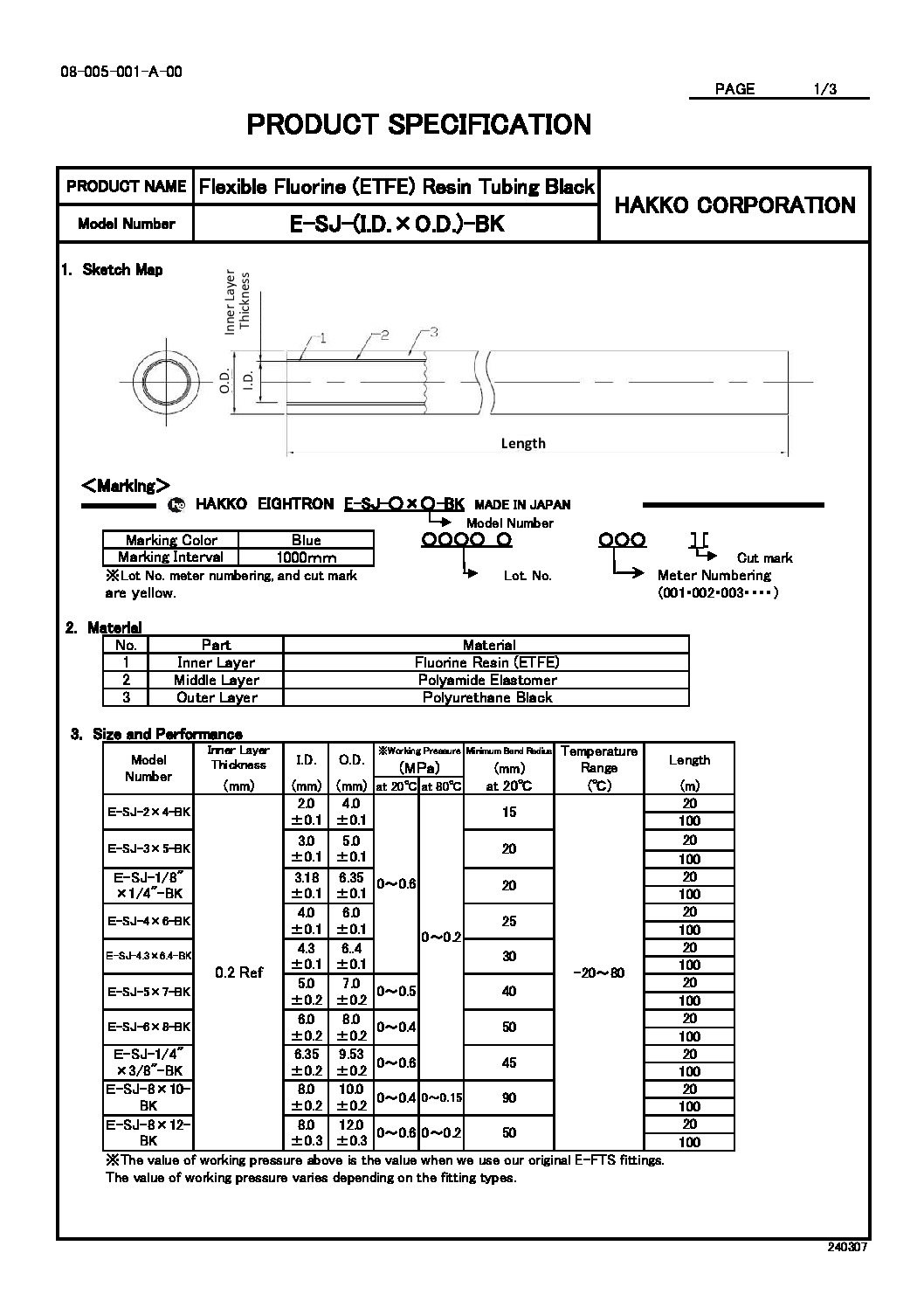

Specification Request

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-SJ-BK, please click "Product Specification Download" above.

Cautions:

We do not have our original fittings for E-SJ-4.3$\times$6.4-BK, E-SJ-8$\times$10-BK and all inch sizes.
In case you have to use your fittings other than our original fittings, due to the laminated structure tubing, please use the joints to seal an inner surface of the tubing. Please do not use the joints to seal an outer surface of the tubing. This may result in the bursting or coming off from the tubing.
When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" of E-SJ-BK is also downloadable here.)
In terms of chemical resistance, please refer to "Chemical Resistance Data."
Although the inner layer is made of ETFE fluorine, please make sure whether or not E-SJ-BK is usable for high purity fluids before you use.
Although the inner layer is resistant to fluids, depending on working environments, the fluids would be permeated through the inner layer, resulting in the danger of swelling and degradation of the middle or outer layer.

Case Study

Problem: A Single-Layer Teflon Tube is stiff and easy to break.

An UV ink-jet printing manufacturer (called "Company A" hereinafter) was looking for a flexible fluorine tubing for better handling and easy installation. The bending radius should be smaller and hard to break.

HAKKO Solution:

HAKKO proposed E-SJ-BK: Flexible Fluorine (ETFE) Resin Tubing Black and provided a sample. E-SJ-BK is made of three layers: the inner layer is made of ETFE fluorine, the middle layer is made of polyamide and the outer layer is made of polyurethane black. The inner layer shows higher levels of ink resistance. The outer layer is made of polyurethane black, which makes the tubing softer and more flexible. As a result, compared with a teflon tubing, E-SJ-BK is flexible and hard to break. Also, E-SJ-BK can cut the ultraviolet rays, so UV inks do not get harden. After Company A evaluates our E-SJ-BK, E-SJ-BK passed their criteria. Company A decided to use.

Frequently Asked Question

Question: E-SJ-BK is a multi-layer tubing. Is it easier to peel off the layer?
Answer: No. Even though E-SJ-BK consists of multi-layers, the inner layer and the outer layer are greatly adhered each other. Thus, you do not have to worry about delamination.

Question: E-SJ-BK is harder than I expected. I need a softer product.
Answer: If you have already known a teflon tube, you must have realized that E-SJ-BK is much softer than a teflon tube. Due to a multi-layer structure, E-SJ-BK is much more flexible than a teflon tube. However, if you still need a softer tubing than E-SJ-BK, we also have E-SJUS-BK: Flexible Fluorine (ETFE) Resin Tubing Black (Ultra Soft Type).

Technical Information

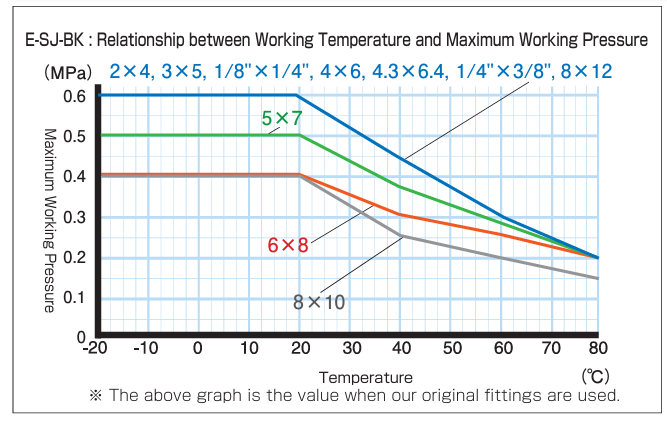

(A) Relationship Graph between Working Temperature and Maximum Working Pressure

E-SJ-BK_Relationship between Working Temperature and Maximum Working Pressure

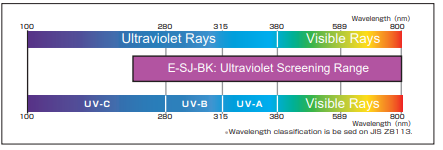

(B) UV Screening Data

Test Sample: E-SJ-4×6-BK
UV Penetration Range: 240nm to 800nm
Test Machine: Spectrophotometer U-4100 (Hitachi, Ltd)

Result: Ultraviolet Screening 99%

(C) Flexibility Comparative Data

Test Sample	Minimum Bend Radius (mm)	Amount of Deflection (mm)
E-PD-4$\times$6	23 (Catalog Value: 25)	28
E-SJ-4$\times$6	23 (Catalog Value: 25)	31
PTFE Tubing (4$\times$6)	20	7
PFA Tubing (4$\times$6)	23	6

Results: "Amount of Deflection" is one indication of flexibility. Flexibility varies depending on hose (tubing). The larger the amount of deflection is, the more flexible the hose (tubing) is. The lower the minimum bend radius value is, the harder the hose (tubing) is. Thus, E-SJ and E-PD are much flexible than PTFE and PFA tubing.

(D) Non-Adhesiveness Comparison Data

Resins	Critical Surface Tension (dyne/cm)	Contact Angle for Water ($\theta$)
ETFE Fluorine	22	96
PVDF Fluorine	25	82
High Density Polyethylene	31	73
Hard Vinyl Chloride	39	68
PET	43	-
Nylon	46	54

Critical Surface Tension: The surface tension of the assumed fluid which has the contact angle of zero against solid.

Results: Since the lower value of "Critical Surface Tension" and higher value of "Contact Angle for Water" show higher non-adhesivenss, ETFE fluorine material shows the highest non-adhesiveness.

HAKKO Original Fittings for E-SJ-BK

Product Name	Materials, Characteristics
Fittings for Multi-Layer Tubing [Model Number: E-FTS-F]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.

PEEK (Carbon Reinforced) Nut Type Fittings [Model Number: AL]]	Material: PEEK Lightweight...Fitting weight is less than one-fifth, compared to same-size SUS joints, leading to overall weight reduction of equipment. Great Heat Resistance...PEEK material has excellent heat resistance among resins. Chemical Resistance...PEEK material has excellent resistance to a wide range of chemicals including acids, alkalis and organic solvents. Mechanical Strength...Carbon fiber is added to the engineering plastic of PEEK, which is strong in tensile and impact resistance.

Fittings for Multi-Layer Tubing (with Tubing Guide) [Model Number: E-FTS-GN]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.
