Soft NEW FLEX Air Hose (Red Color) [Model Number: E-SNF-RED]

Air Hose | Lightweight, Flexible, Long Duration, soft PU (Polyurethane) Air Hose

Sample Request Leaflet Request

Fluids

air

Applications

For Air Tool at Automobile Body Shop
For Air Hose for Air Inflator and Air Compressor
For Air Hose for Building Construction, Painting, Automotive Sheet Metal, Air Duster, Maintenance Shops and Woodworking

Functions

Non-PVC

Flexibility

Pressure-Proof

Portable Tool

Cold Resistance

Light Weight

Smoothness

Characteristics

High Flexibility...Due to the use of soft PU, E-SNF-RED is a professional air hose which is very flexible and easy to handle.
Smoothness...The surface of the hose is smooth and the hose is less likely to get stuck anywhere. This greatly improves your work efficiency.
No Bounce Back...E-SNF-RED is less likely to curl and bounce up. As a result, E-SNF-RED will not get caught on your feet.
Duration...Polyurethane resin is strong in abrasion resistance. Thus, E-SNF-RED is suitable for air tools such as air driver.
Cold Resistance...Polyurethane resin is great at cold resistance. Thus, even though temperature reaches around minus 20$^\circ$C, E-SNF-RED does not get harden, keeping the work efficiency.
Lightweight...Compared with a rubber hose, E-SNF-RED is a lightweight hose, reducing the burdens of your wrestles and arms.
Safety...Even under the dim area, a hose color (red color) stands out. Do not worry about being caught by foot.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
RoHS Compliant...E-SNF-RED is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant products mean that they do not contain or below the threshold of 10 substances.) Certificate is available on request.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings.

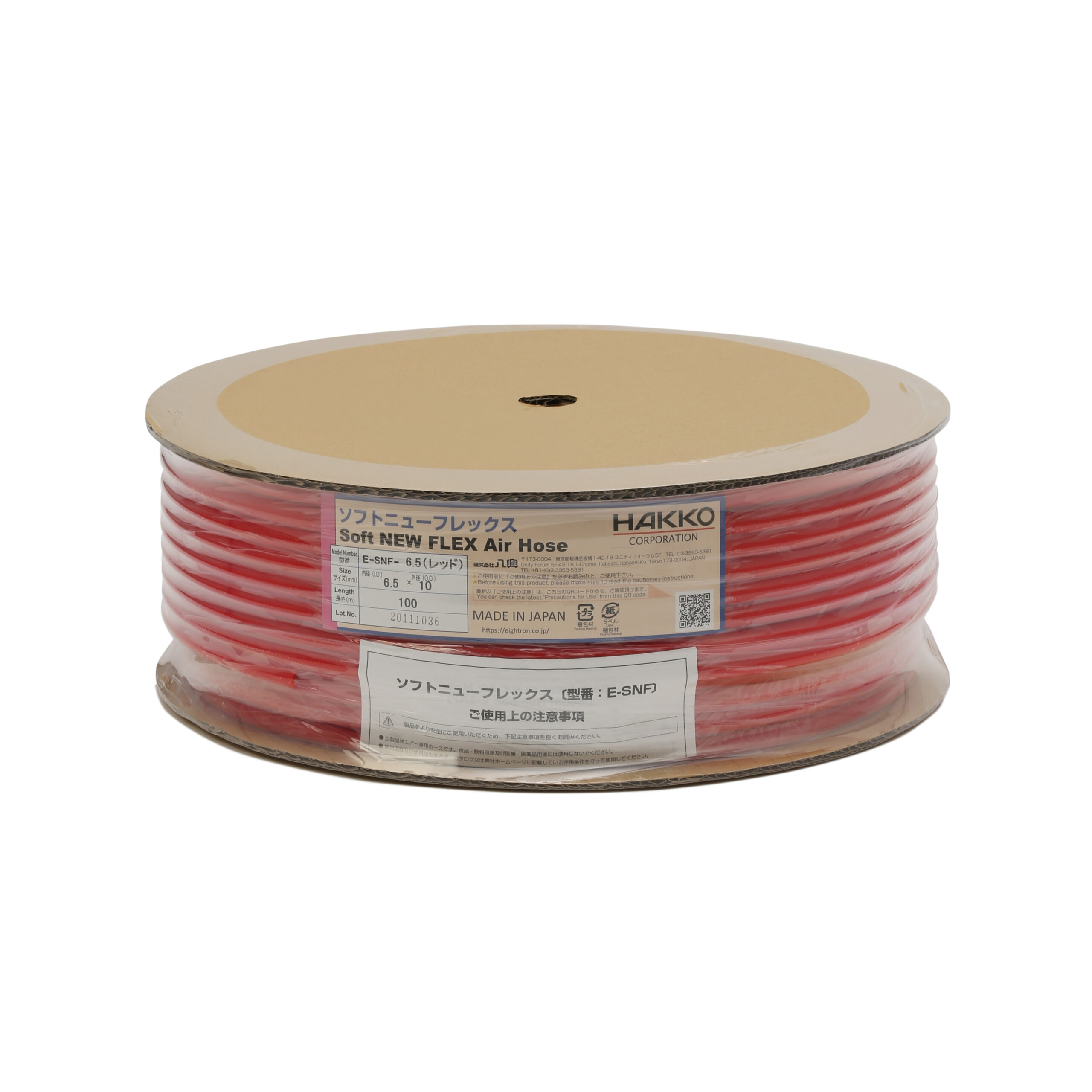

Packing Images

Product Standard

Standard Size

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	Standard Length	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-SNF-6.5-RED	100	6.5$\times$ 10	0 - 1.5	0 - 15	40
E-SNF-8.5-RED	100	8.5$\times$ 12.5	0 - 1.5	0 - 15	55

Made-to-Order Size (Hose Only)

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	mm	MPa	Bar	mm
SNF-3/8$\times$9/16	9.53$\times$14.29	0 - 1.5	0 - 15	60

Temperature Range : -20 - 60 $^\circ$C (-4$^\circ$F - 140$^\circ$F)
Color : Red

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Bending Stress Value" in the section of Technical Information or request the sample.

Made-to-Order: Hose with Bend Restrictor Fittings

Model Number	Hose Size [I.D.$\times$O.D. (mm)]	Length (m)	Fittings
E-SNF-6.5-RED-RC 10m	6.5$\times$10	10	E-RSS-65P (Socket) + E-RSP-65P (Plug)
E-SNF-6.5-RED-RC 20m		20
E-SNF-6.5-RED-RC 30m		30
E-SNF-8.5-RED-RC 10m	8.5$\times$12.5	10	E-RSS-85P (Socket) + E-RSP-85P (Plug)
E-SNF-8.5-RED-RC 20m		20
E-SNF-8.5-RED-RC 30m		30

*If you need a different size (such as I.D. 3/8") or a different color air hose (such as blue, green, orange), we can offer as a made-to-order product. Please fill out a Made-to-Order Inquiry form below and specify your preferred color and purchasing quantity.

Made-to-Order Inquiry Form

Leaflet Request

For more information on our Product Standard of E-SNF-RED, please click "Product Leaflet Download" above.

Cautions:

Due to the yarn-reinforced hose, please use the joints to seal an inner surface of the hose.
Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
When you use our products, please refer to "Precautions for Use."

Frequently Asked Question

Question: What is the difference between E-SNF and E-SNF-RED?
Answer: This is just a color difference. Other than this, the product specifications remain the same. We recommend you to use E-SNF (or E-SNF-RED), because it is easier to use without being caught around the corner. However, since E-SNF is a very soft polyurethane air hose, please make sure to use our original fittings: E-RSS and E-RSP.

Technical Information

(A) Relationship between Working Temperature and Maximum Working Pressure

e-snf_Relationship between Working Temperature and Maximum Working Pressure

(B) Comparative Weight Chart between E-SNF and Rubber Hose in the Market

Model Number	I.D. $\times$ O.D.	Weight per Meter
E-SNF-6.5	6.5 mm$\times$10 mm	55 g
E-SNF-8.5	8.5 mm$\times$12.5 mm	76 g
Rubber Hose A	6.3 mm$\times$13.0 mm	160 g
Rubber Hose B	7.9 mm$\times$15.0 mm	190 g

(C) Flexibility Comparative Data (E-NF vs. E-SNF-RED)
e-snf_Flexibility Test Data

Test Method:

1: The sample is heated in a thermostatic chamber, which makes it straight.

2: Remove the sample from the chamber and leave it for 1 hour until it reaches the test temperature (23$^\circ$C ± 3$^\circ$C).

3: Set the tensile testing machine as shown above. Bend the sample into a U-shape. The "d" distance is 80mm for E-NF-6.5 and E-SNF-6.5 and 110mm for E-NF-8.5 and E-SNF-8.5.

Results:

Model Number	Bending Stress Value (N)
E-NF-6.5	3.28
E-SNF-6.5-RED	2.08
E-NF-8.5	3.60
E-SNF-8.5-RED	2.36

The bending stress value of E-SNF-RED is about two-thirds as large as that of E-NF. Thus, we confirm that E-SNF-RED is much softer and easy to use.

(D) Flexibility Difference Image (E-NF vs. E-SNF)

HAKKO Original Fittings for E-SNF-RED

Product Name	Materials, Characteristics
Push-to-Connect Fittings for Air Hose Series [Model Number: E-RSS/E-RSP]]	Socket and Plug are connectable without effort. The spring part prevents the twisting of the hose due to the rotary function. Lock function of the socket prevents the hose from hooking off the plug.
