Air Hose (Ground Wire Type) [Model Number: E-AHG]

Ground Wire PU (Polyurethane) Air Hose; Possible to eliminate Static Electricity Charged to the Spray Gun; Lightweight, Flexible and Long Duration

Sample Request Leaflet Request Specification Request

Fluids

air

Applications

For Air Hose at the Painting Equipment and for Electrostatic Spray Gun
For Air Machine Tools requiring measurements against static electricity
For Air Hose for Air Inflator and Air Compressor
For Air Hose for Building Painting, Air Duster and Woodworking

Functions

Non-PVC

Flexibility

Pressure-Proof

Portable Tool

Cold Resistance

Light Weight

Ground Wire

Prevention of Static Charge

Characteristics

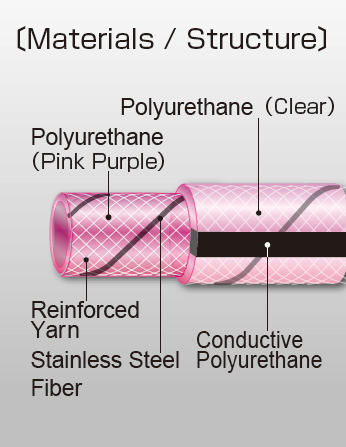

Ground Wire...Without taking the ground wire out of the hose and by attaching our original fittings to the hose, you can prevent the splash charge. Electrical Resistivity Data is available under the section of Technical Information.
Remove Static Electricity...With the ground wire and the conductive line, regardless of hose length, it shows higher ability to remove the static electricity. (Patent Registered）
Duration...Polyurethane resin is strong in abrasion resistance. Thus, E-AHG is suitable for air tools such as air driver.
Cold Resistance...Polyurethane resin is great at cold resistance. Thus, even though temperature reaches around minus 20 degrees Celsius, E-AHG does not get harden, keeping the work efficiency.
Lightweight...Compared with rubber and PVC hoses, E-AHG is a light hose, reducing the burdens of your wrestles and arms.
Easy to Cut...Since we print the cut mark on the hose every one meter, it is easy to cut and check how many meters you have used.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-AHG is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-AHG does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-AHG is compliant with REACH SVHC 23rd list (209 substances). Certificate is available on request.
Non-Use of UV-328...E-AHG does not contain UV-328. Certificate is available on request.

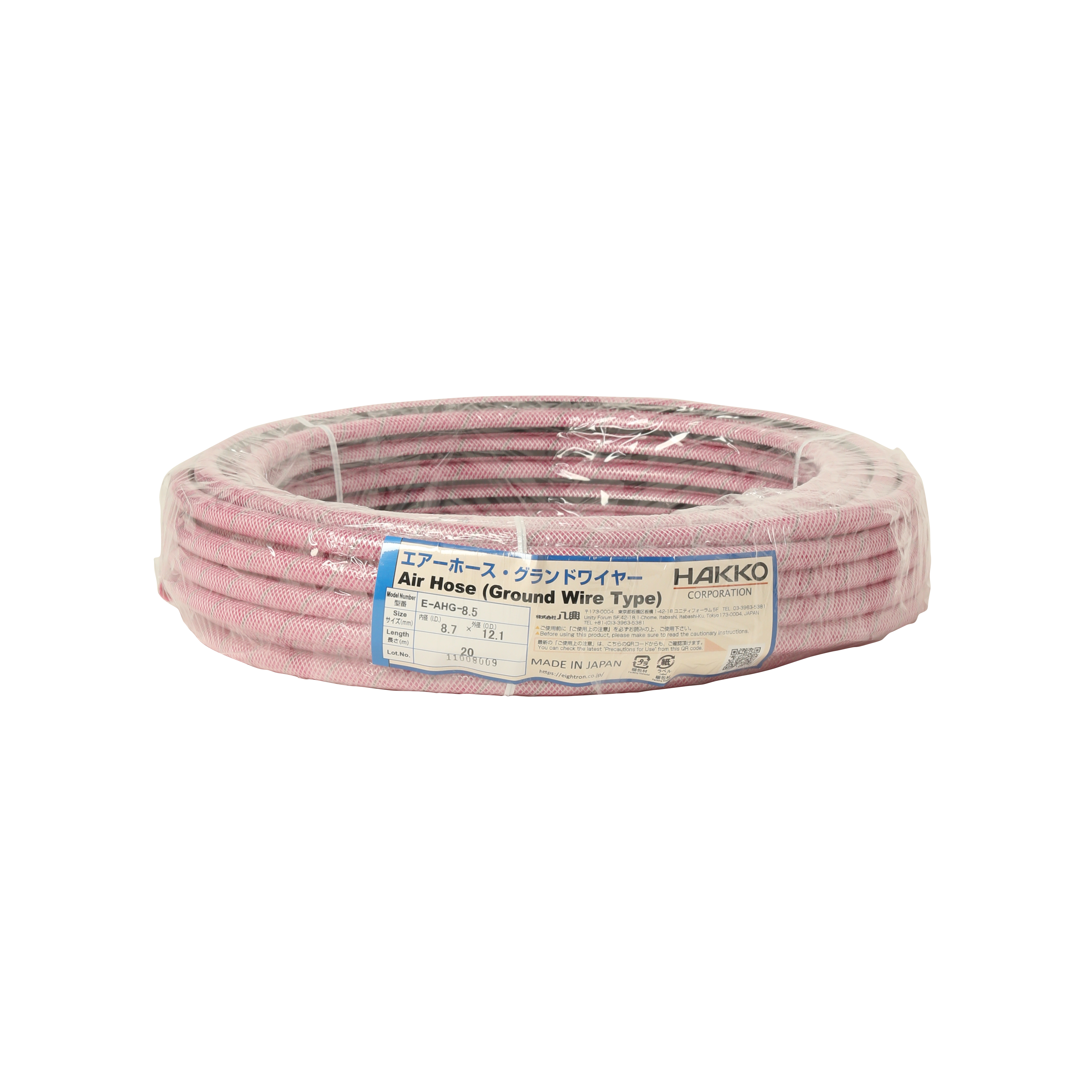

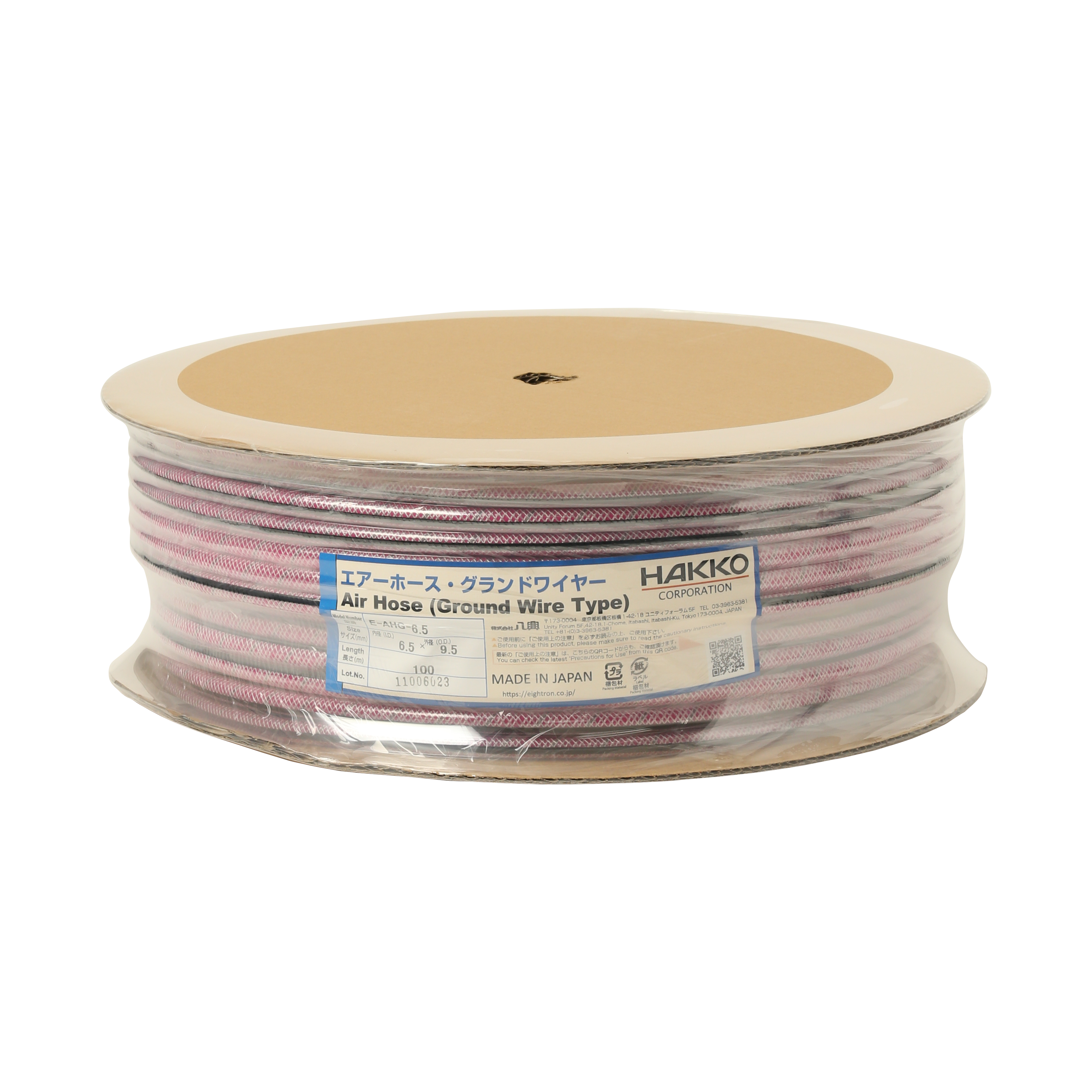

Packing Images

Product Standard

Hose Only

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-AHG-6.5	20	6.5$\times$ 9.5	0 - 1.5	0 - 15	50
	100
E-AHG-8.5	20	8.7 $\times$ 12.1			80
	100

Temperature Range : -20 - 60 $^\circ$C (-4$^\circ$F - 140$^\circ$F)
Color : Pink Purple

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

Hose with Fittings (Made-to-Order Product)

Model Number	Hose Model Number	Fittings' Model Number	Fittings' Model Number	Total Length (m)
AHG-6.5-G1/4$\times$G1/4-B-10m	E-AHG-6.5	E-FB-6.5-G1/4	E-FB-6.5-G1/4	10
AHG-6.5-G3/8$\times$G3/8-B-10m		E-FB-6.5-G3/8	E-FB-6.5-G3/8
AHG-6.5-G1/4$\times$G1/4-BG-10m		E-FBG-6.5-G1/4	E-FBG-6.5-G1/4
AHG-6.5-G3/8$\times$G3/8-BG-10m		E-FBG-6.5-G3/8	E-FBG-6.5-G3/8
AHG-8.5-G1/4$\times$G1/4-B-10m	E-AHG-8.5	E-FB-8.9-G1/4	E-FB-8.9-G1/4
AHG-8.5-G3/8$\times$G3/8-B-10m		E-FB-8.9-G3/8	E-FB-8.9-G3/8
AHG-8.5-G1/4$\times$G1/4-BG-10m		E-FBG-8.9-G1/4	E-FBG-8.9-G1/4
AHG-8.5-G3/8$\times$G3/8-BG-10m		E-FBG-8.9-G3/8	E-FBG-8.9-G3/8

*If you are interested in E-AHG with fittings, please inform us of your requested part number and quantity on the following form. (We can change the total length into your preferred length.)

Inquiry Form

Leaflet Request

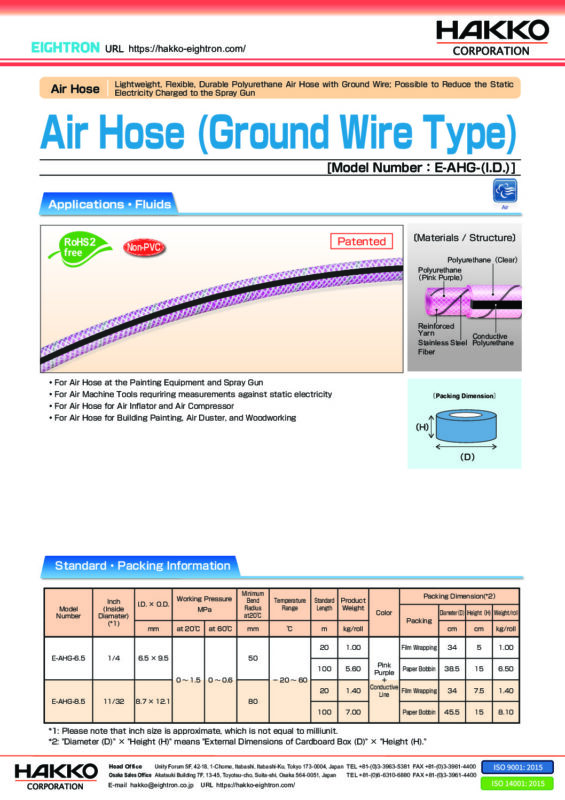

For more information on our Product Standard of E-AHG, please click "Product Leaflet Download" above.

Specification Request

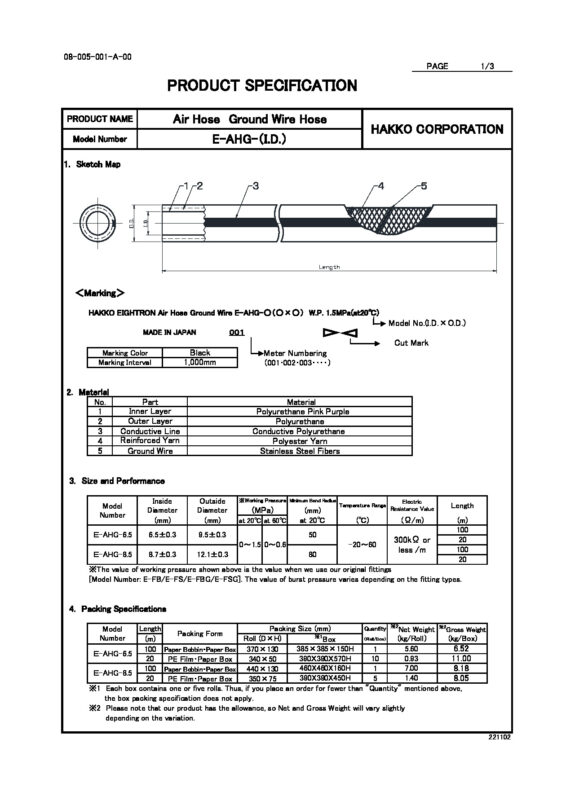

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-AHG, please click "Product Specification Download" above.

Cautions:

Due to the yarn-reinforced hose, please use the joints to seal an inner surface of the hose.
Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" is also available at the product specifications of E-AHG, which can be downloadable from here.)
In terms of E-AHG-8.5 (The First 5 Digits of Production Lot Number: 11008), the size marking on the hose is incorrect. However, the hose is properly manufactured as stated in the product leaflet and product specifications (I.D. 8.7mm $\times$ O.D. 12.1mm).

Selection Chart for Air Hose

Product Name	I.D Size	Anti-Static	Color
E-NF	6.5mm/8.5mm/11mm	$\times$	Orange
E-SNF	6.5mm/8.5mm	$\times$	Pink Purple
E-SV	6.5mm/7.5mm/9.5mm		Clear
E-AFC	6.5mm/8.9mm		Blue
E-AHG	6.5mm/8.7mm		Pink Purple

Anti-Static: = Better , = Best , $\times$ = No

Technical Information

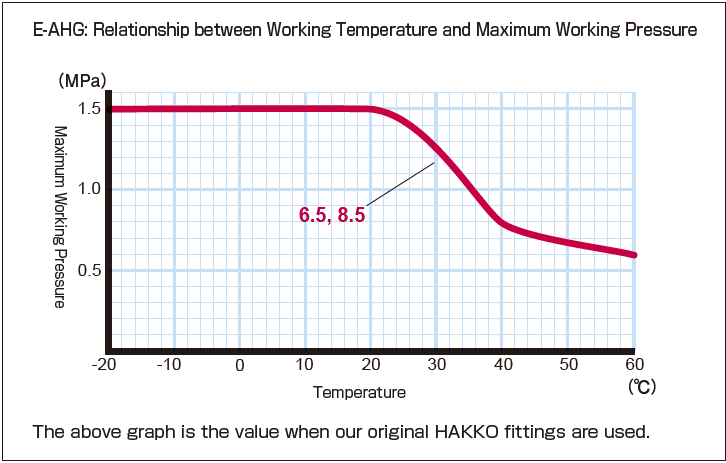

(A) Relationship between Working Temperature and Maximum Working Pressure

e-ahg_Relationship between Working Temperature and Maximum Working Pressure

(B) Electrical Resistivity Data

Test Sample	Resistance Value Data	Resistance Value Data	Resistance Value Data	Resistance Value Data
Length	1m	5m	10m	20m
E-AHG-6.5	18K$\Omega$	30K$\Omega$	34K$\Omega$	40K$\Omega$
E-AHG-8.5	32K$\Omega$	40K$\Omega$	47K$\Omega$	52K$\Omega$

Measurement method: HAKKO original fittings are attached to both ends, and the resistance value between the fittings is measured by an insulation resistance meter. (However, in order to accurately measure the resistance value for a product with conductive line layers, please do not attach the lead rods on the line layer.)

Notes: The data above are the test values and are not guaranteed values. Also, depending on how you measure the resistance value, fittings and the tester maker, the result will vary. Please check the resistance value in your application. If you request electrical resistivity data of other specific length (such as 3m), please contact us.

[POINT!]

Since E-AHG includes a ground wire and a conductive PU line [unlike other air hoses (only with a ground wire)], you do not have to pull out the ground wire. This is due to the fact that the metal fiber and the conductive line resin layer are coiled as spiral. Also, these are contacted with regular intervals, regardless of the hose length. For the hose which only includes carbon, the electrical resistivity goes up in proportion to the hose length. By only attaching our original fittings to the hose, you can eliminate the static electricity charged to equipment such as spray gun. You can reduce the effort to pull out a ground wire.

*For how to measure the resistance value correctly, please take a look at the short video clip below.

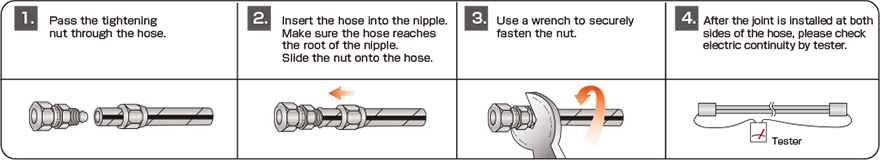

HAKKO Original Fittings for E-AHG

Product Name	Materials, Characteristics
Fittings for Paint-Flex Hose Series [Model Number: E-FS/E-FB]]	E-FS: Material: SUS304 (Wetted Part), Brass Nickel Plating (Nut) RoHS Compliant Thread: G1/4 or G3/8 SUS Mark around ring means E-FS. E-FB: Material: Brass Nickel Plate RoHS Compliant Thread: G1/4 or G3/8

Fittings for Paint-Flex Hose Series [Model Number: E-FSG/E-FBG]]	E-FSG: Material: SUS304 (Wetted Part and Hose Guide), Brass Nickel Plating (Nut) RoHS Compliant Thread: G1/4 or G3/8 With Hose Guide: prevent kinking SUS Mark around ring means E-FSG. E-FBG: Material: Brass Nickel Plate, SUS304 (Hose Guide) RoHS Compliant Thread: G1/4 or G3/8 With Hose Guide: prevent kinking
