Flexible Fluorine (ETFE) Resin Tubing (Ultra Soft Type) [Model Number: E-SJUS]

Multi-Purpose, Very Soft Tube | Chemical Resistance Tube | Single-layer teflon tubing is hard (stiff) and easy to break. Our Flexible Fluorine (ETFE) Resin Tubing (Ultra Soft Type) is an alternative, soft tubing for a teflon tubing.

Sample Request Leaflet Request Specification Request

Fluids

chemicals

ink

paint

flux

food

drink

cosmetics

alcohol

Applications

For Industrial Ink-Jet Printers (For Ink-Supplying Pipes)
For Transferring Solvent-Based Inks
For Transferring Paints, Solvents and Adhesives
For Transferring Chemicals used in Laboratory Equipment
For Transferring Chemicals used in Semiconductor-Related Devices and Flat Panel Display (FPD) Manufacturing Devices
For Transferring Fatty Acid Ester such as Biofuel (BDF)
For Transferring Chemical and Industrial Wastes
For Transferring Alcohol, Cosmetics and Chemicals
For Transferring Chemicals used in Medical Equipment, Endoscope and so on
For Transferring Chemicals used in Manufacturing Fuel Cell and Pure Water
For Printing Head, Wide-Format Ink-Jet Printers, Textile Printers, Ceramic Tile Printers, 3D Printers
For Filling Line of Paints and Adhesives
For Filling Line of Fragrance, Colorant and Additive
For Air Supplying Pipes at Clean Room

Functions

Solvent Resistance

Non-PVC

Non-Adhesiveness

Chemical Resistance

Low Elution

Food-Sanitation

Flexibility

Oil-Proof

Cold Resistance

Alcohol Resistance

Ultra Soft

Characteristics

Chemical Resistance...Since the inner layer is made of ETFE fluorine resin, E-SJUS is resistant to most of the chemical substances. For more information, please refer to chemical resistance data.
Flexibility and Easy Handling...Due to the laminated structure, compared with a single-layer fluorine tubing, E-SJUS is superior in flexibility. This improves your work efficiency.
Easy Fitting Installation...Since E-SJUS is very flexible, it is easier to install the tubing into the fittings.
Hard to Break...Unlike a single-layer fluorine tubing, E-SJUS is less likely to break. (Even if it breaks, you can restore its shape to some extent.)
Higher Non-Adhesiveness...Since ETFE fluorine resin is superior in terms of water-proof, you can wash out the fluids very easily.
Abrasion Resistance...Fluorine resin (inner layer) shows high levels of abrasion resistance. Thus, you can even transfer chemical slurry.
Plasticizer-Free...E-SJUS does not contain plasticizer (an elution material) at all. E-SJUS is an oil-free tubing.
Non-PVC...E-SJUS is made of non-PVC materials.
Low Elution and Low Odor...Since E-SJUS contains very low levels of elution and odor, it is highly recommended for use in transfers of cosmetics.
High Purity...Fluorine resin does not contain any additives such as plasticizer, so E-SJUS is suitable for transferring high purity chemical fluids.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Transparency...E-SJUS enables you to check the fluid very easily.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-SJUS is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-SJUS does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-SJUS is compliant with REACH SVHC 25th list (219 substances). Certificate is available on request.
Non-Use of UV-328...E-SJUS does not contain UV-328. Certificate is available on request.
Food Sanitation...E-SJUS conforms to the Food Sanitation Law No.370 (No.370 of the Ministry of Health and Welfare for Food Sanitation). (Conformity to N-Heptane). [Regarding the conformity of “Partial Revision of the Food Sanitation Law” (Effective on June 1, 2020) and Positive List System (PL), please download here.]
Regulation (EC) No 1935/2004 and (EU) No 10/2011...An inner layer of E-SJUS is compliant with (EC) No 1935/2004 and (EU) No 10/2011.

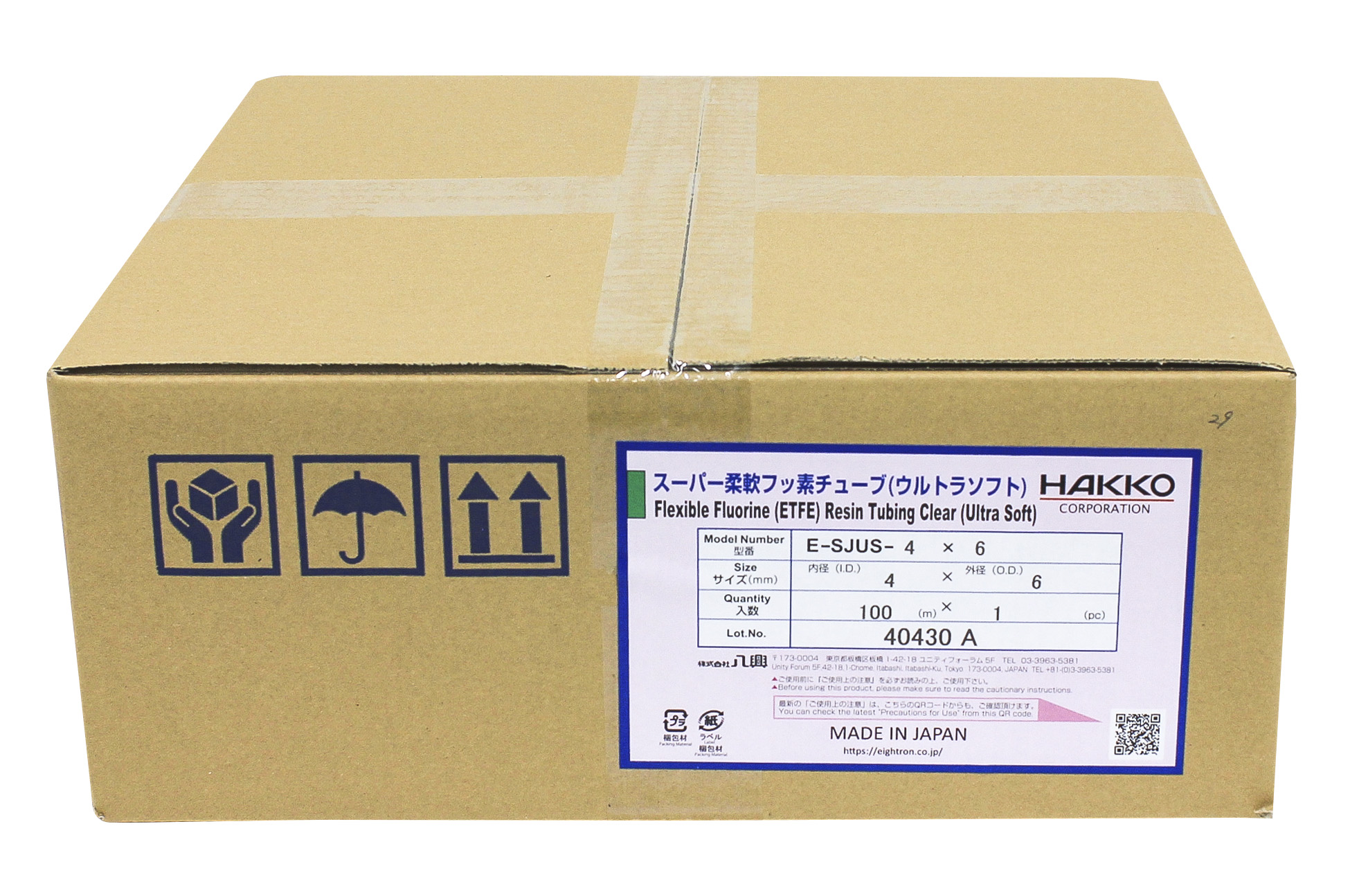

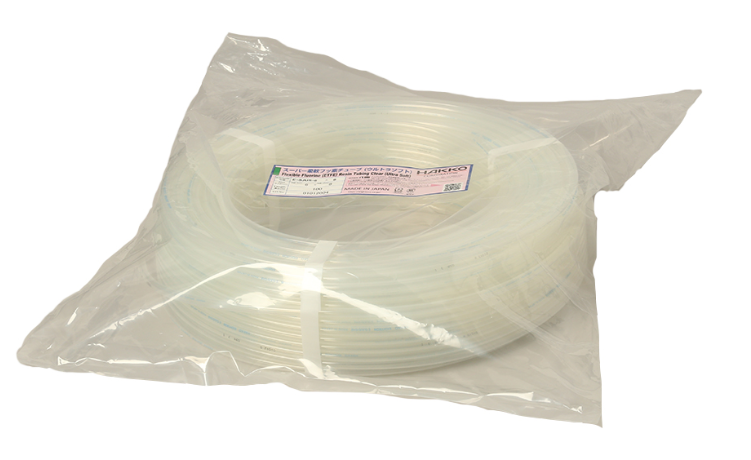

Packing Images

Product Standard

Standard Size

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-SJUS-2$\times$4	20	2$\times$4	0 - 0.5	0 - 5	30
	100
E-SJUS-3$\times$5	20	3$\times$5	0 - 0.5	0 - 5	35
	100
E-SJUS-4$\times$6	20	4$\times$6	0 - 0.4	0 - 4	50
	100
E-SJUS-4.3$\times$6.4	20	4.3$\times$6.4	0 - 0.4	0 - 4	50
	100
E-SJUS-6$\times$8	20	6$\times$8	0 - 0.3	0 - 3	75
	100
E-SJUS-8$\times$10	20	8$\times$10	0 - 0.15	0 - 1.5	100
	100
E-SJUS-1/8"$\times$1/4"	20	3.18$\times$6.35	0 - 0.5	0 - 5	50
	100
E-SJUS-1/4"$\times$3/8"	20	6.35$\times$9.53	0 - 0.4	0 - 4	80
	100

Made-to-Order Size

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	mm	MPa	Bar	mm
SJUS-1/16"$\times$1/8"	1.58$\times$3.18	0 - 0.5	0 - 5	30
SJUS-2$\times$3	2$\times$3	0 - 0.4	0 - 4	50
SJUS-2.5$\times$4	2.5$\times$4	0 - 0.5	0 - 5	50

Temperature Range : -20 - 80 $^\circ$C (-4$^\circ$F - 176$^\circ$F)
Color : Clear

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

*If you are interested in non-standard, made-to-order size, please fill out the following form. (We can also produce a special size that is not listed on the table above. Please note that MOQ applies for made-to-order size.)

Made-to-Order Inquiry Form

Leaflet Request

For more information on our Product Standard of E-SJUS, please click "Product Leaflet Download" above.

Specification Request

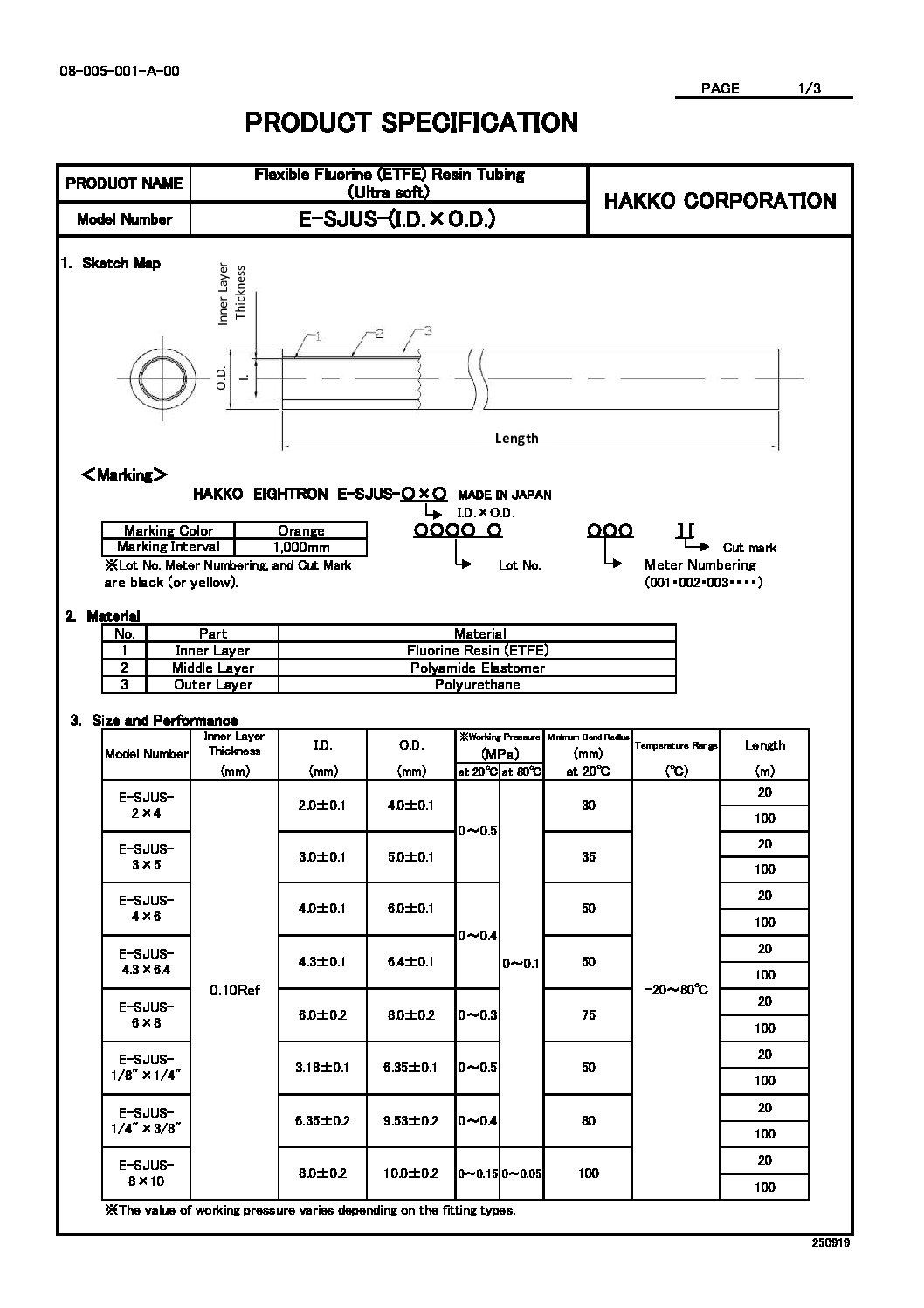

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-SJUS, please click "Product Specification Download" above.

Cautions:

We do not have our original fittings for E-SJUS-4.3$\times$6.4 and E-SJUS-8$\times$10.
We do not have our original fittings for E-SJUS-1/8"$\times$1/4" and E-SJUS-1/4"$\times$3/8". If you need our technical support in selecting the suitable fittings for these sizes, please fill out this form.
In case you have to use your fittings other than our original fittings, due to the laminated structure tubing, please use the joints to seal an inner surface of the tubing. Please do not use the joints to seal an outer surface of the tubing. This may result in the bursting or coming off from the tubing.
When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" is also available at the product specifications of E-SJUS, which can be downloadable from here.)
In terms of chemical resistance, please refer to "Chemical Resistance Data."
Although the inner layer is made of ETFE fluorine, please make sure whether or not E-SJUS is usable for high purity fluids before you use.
Although the inner layer is resistant to fluids, depending on working environments, the fluids would be permeated through the inner layer, resulting in the danger of swelling and degradation of the middle or outer layer.
White powder (Low Molecular Weight in Resin) might come out on the tubing during storage. This white powder conforms to the "Positive List System of the Revised Food Sanitation Law" (effective on June 1, 2020), so there is no safety problem. Please wipe it off before use.

Case Study

Situation: We look for a softer fluorine product like a fluorine rubber tubing.

An ink-jet printing manufacturer (called "Company A" hereinafter) was looking for a flexible fluorine tubing like a fluorine rubber tubing for better handling and confined-space installation. So far, Company A has adopted a fluorine rubber tubing, but due to the product supply shortage, Company A had to look for the alternative product.

HAKKO Solution:

HAKKO proposed E-SJUS: Flexible Fluorine (ETFE) Resin Tubing (Ultra Soft Type) and provided a sample. Company A was surprised that E-SJUS, a non-rubber fluorine tubing, is so soft. Company A conducted the ink matching test, and it turned out that the result of E-SJUS is better than that of fluorine rubber tubing. They decided to use E-SJUS for their ink-jet printing machine.

Frequently Asked Question

Question: E-SJUS is a multi-layer tubing. Is it easier to peel off the layer?
Answer: No. Even though E-SJUS consists of multi-layers, the inner layer and the outer layer are greatly adhered each other. Thus, you do not have to worry about delamination.

Technical Information

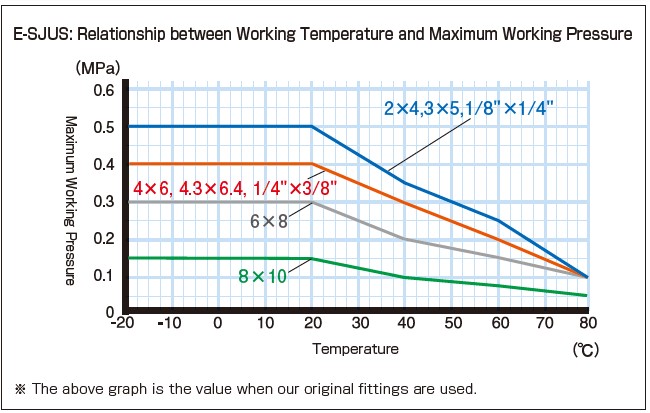

(A) Relationship Graph between Working Temperature and Maximum Working Pressure

E-SJUS_Relationship between Working Temperature and Maximum Working Pressure

(B) Flexibility, Minimum Bend Radius, Kink Resistance and Amount of Deflection Data

Test Sample	Bending Stress Data (N/50mm)	Minimum Bend Radius (mm)	Kink Resistance (mm)	Amount of Deflection (mm)
E-SJUS-4$\times$6	0.8	50	20	30
E-SJ-4$\times$6	3.5	25	11	17
Fluorine Tube I.D. 4 mm $\times$ O.D. 6mm (Produced by Other Company)	-	23	11	5

Results: "Bending Stress Value" is one indication of flexibility. The smaller the value of bending stress is, the more flexible the hose (tubing) is. E-SJUS is much more flexible than E-SJ. On the other hand, E-SJUS values of minimum bend radius and kink resistance are larger than E-SJ values. This suggests that minimum bend radius has nothing to do with the flexibility.

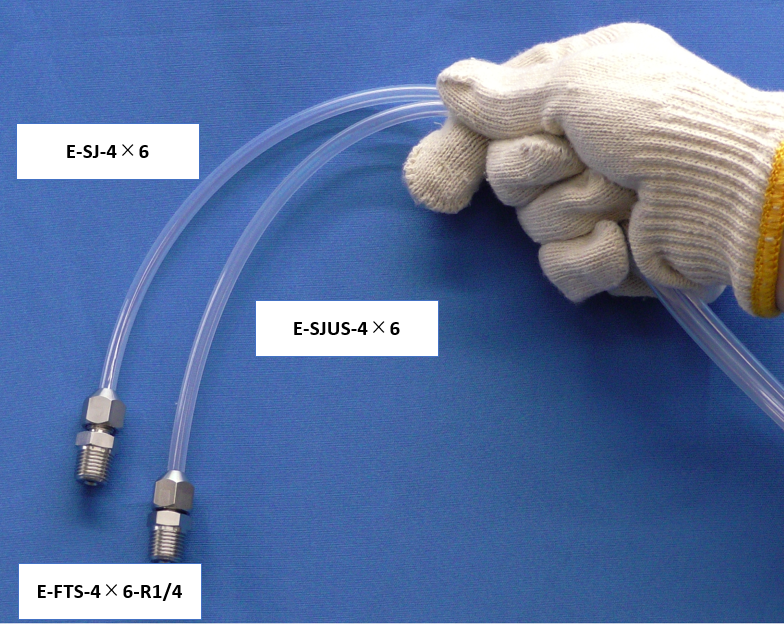

(C) Flexibility Difference Image (E-SJUS vs. E-SJ)

(D) Outer Layer Surface Smoothness Test (E-SJUS vs. E-SJ)

Background: Polyurethane resin has a feature of great abrasion resistance, but it has a feature of grip feeling. Thus, work efficiency becomes lower due to the adhesion of a tubing.

Testing Methods: Tie a tubing of E-SJ and E-SJUS, make its radius to 100mm, and then hold with an air chuck at both ends. After holding, measure the resistance value when the air chuck is pulled at the certain speed. Please see the picture below. (Please note that at the below picture, the test was conducted with E-SJUS-BK and E-SJ-BK.)

Results: The outer layer resistance value of E-SJUS is about one-fifth smaller than that of E-SJ. This indicates that E-SJUS shows higher outer layer smoothness than E-SJ, which greatly improves the work efficiency. This is due to the fact that an outer layer of E-SJUS uses a soft, smooth grade of polyurethane.

Test Sample	Smoothness Data (N)
E-SJUS-4$\times$6	2 - 2.5N
E-SJ-4$\times$6	10 - 13N

(E) Non-Adhesiveness Comparison Data

Resins	Critical Surface Tension (dyne/cm)	Contact Angle for Water ($\theta$)
ETFE Fluorine	22	96
PVDF Fluorine	25	82
High Density Polyethylene	31	73
Hard Vinyl Chloride	39	68
PET	43	-
Nylon	46	54

Critical Surface Tension: The surface tension of the assumed fluid which has the contact angle of zero against solid.

Results: Since the lower value of "Critical Surface Tension" and higher value of "Contact Angle for Water" show higher non-adhesivenss, ETFE fluorine material shows the highest non-adhesiveness.

HAKKO Original Fittings for E-SJUS

Product Name	Materials, Characteristics
Fittings for Multi-Layer Tubing [Model Number: E-FTS-F]]	Material: SUS316L (SS316L) (Body) and SUS304 (SS304) (Nut) It is designed by HAKKO tubing products, so you do not have to worry about fluid leakages and coming off. Specify temperature range and working pressure for each product. It is excellent in corrosion resistance [Body: SUS316L (SS316L)]. Since it is made of stainless steel (Passivation Treatment), you can transfer a wide variety of fluids.

PEEK (Carbon Reinforced) Nut Type Fittings [Model Number: AL]]	Material: PEEK Lightweight...Fitting weight is less than one-fifth, compared to same-size SUS joints, leading to overall weight reduction of equipment. Great Heat Resistance...PEEK material has excellent heat resistance among resins. Chemical Resistance...PEEK material has excellent resistance to a wide range of chemicals including acids, alkalis and organic solvents. Mechanical Strength...Carbon fiber is added to the engineering plastic of PEEK, which is strong in tensile and impact resistance.
