Resin Hose Manufacturer in Japan

Foods and Cosmetics

  • TOP »
  • Foods and Cosmetics

(A) For Food/Beverage/Alcohol Hose

For transporting foods and beverages, we recommend that you use the HAKKO Food Grade Hose Series. It is not a wise decision to select a hose only with flexibility, temperature range, the pressure, and the food sanitation law. Followings are frequently asked questions for food grade hoses.

syokuhin_img01

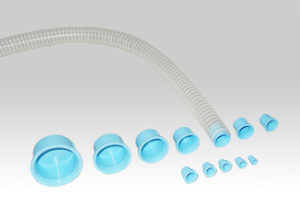

A hose cap, made of PE, prevents foreign matter (such as dirt) contamination at both ends of the hose.

Five Frequently Asked Questions!

  1. Does the resin odor of the hose move to fluid (Food and beverages)?
  2. For soft PVC, does the plasticizer affect fluid?
  3. Is it hard to get dirt on the inside of the hose, such as colored dirt of the fluid?
  4. Does the hose deteriorate with chemical cleaning and hot water cleaning?
  5. Is there enough transparency to visually check the hose after cleaning?

When you select a hose for transporting food/beverage/alcohol, we strongly recommend you to choose non-PVC (plasticizer-free) food grade hose. Plasticizer, which is contained in PVC hose, will elute to the fluid, which badly affects the fluid. For visual image of this, please click below.

(B) For Cosmetics (Flagrance)

When you transport cosmetics, the hose should be one with high sanitation, low odor, and low elution.
This is because cosmetics directly touch skin. Also, some cosmetics such as lotion have a high viscosity property, so hoses require cleanness, high chemical resistance, and transparency (to check whether or not any stains are left). In the past, PVC hoses were widely used for transporting cosmetics since they were soft and cost-saving, but these days, customers choose a hose which keeps high purity of the fluid.

Adoption Example

Current Problem: We are concerned about the transfer of resin odor to cosmetics.

Situations: Company A, which has been manufacturing cosmetics, receives complaints from the end user. So, Company A investigated the cause of smell in the manufacturing process.
As a result of investigation, the PVC hose, which was used for transporting cosmetics, might be the cause of smell. Then, Company A decided to consult with HAKKO CORPORATION.

HAKKO Solutions:

KY SUNFOODS HOSE [Model Number: E-KYS]
Flexible Fluorine (ETFE) Resin SUS Spring Wire Hose [Model Number: E-SJSP]

We explain that PVC hoses contain low molecular weight components such as plasticizer and stabilizer. Those components react with alcohol and chlorine-based chemicals, giving out the odor. Thus, we recommend a non-PVC hose for transporting cosmetics. KY SUNFOODS HOSE [Model Number: E-KYS] and Flexible Fluorine (ETFE) Resin SUS Spring Wire Hose [Model Number: E-SJSP] do not contain any plasticizer. The levels of elution are very low and the odor to the fluid is very limited. Company A is satisfied with these two products.

Major Product List

SUNFOODS HOSE [Model Number: E-SF]

image-E-SF01

E-SF

Food-Sanitation
Flexibility
Pressure-Proof
Transparency
Oil-Proof
Non-Phthalic Acid

Inner Diameter : 6 - 50mm

KY SUNFOODS HOSE [Model Number: E-KYS]

image-E-KYS01

E-KYS

Non-PVC
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Pressure-Proof
Alcohol Resistance

Inner Diameter : 6 - 50mm

KY TUBE [Model Number: E-KYT]

image-E-KYT01

E-KYT

Non-PVC
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Flexibility
Alcohol Resistance

Inner Diameter : 2 - 8mm

KY COIL HOSE [Model Number: E-KYC]

image-E-KYC01

E-KYC

Non-PVC
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Vacuum
Hard to Break
Alcohol Resistance

Inner Diameter : 12 - 19mm

KY SOFT BRAID HOSE [Model Number: E-OHB]

image-E-OHB01

E-OHB

Non-PVC
Low Elution
Low Odor
Food-Sanitation
Flexibility
Pressure-Proof
Alcohol Resistance

Inner Diameter : 25 - 50mm

Flexible Fluorine (PVDF) Resin Tubing Clear [Model Number: E-PD]

image-E-PD01

E-PD

Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Food-Sanitation
Flexibility
Gas Barrier
Transparency
Oil-Proof
Cold Resistance
Alcohol Resistance

Inner Diameter : 2 - 8mm

Flexible Fluorine (PVDF) Resin Yarn Reinforced Hose [Model Number: E-PDB]

image-E-PDB01

E-PDB

Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Food-Sanitation
Pressure-Proof
Gas Barrier
Transparency
Oil-Proof
Cold Resistance
Alcohol Resistance

Inner Diameter : 9 - 50mm

Flexible Fluorine (ETFE) Resin SUS Spring Wire Hose [Model Number: E-SJSP]

image-E-SJSP01

E-SJSP

Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Vacuum
Transparency
Oil-Proof
Hard to Break
Cold Resistance
Alcohol Resistance

Inner Diameter : 12 - 38mm

* For more information on each product, please click the product name above.

* If you prefer a size or color that is not in the standard, please fill out the following form.
