Flexible Fluorine Resin Hose Series with Ferrule Fittings (Swage Type)
HAKKO Ferrule Fittings (Swage Type) / Fluids are less likely to remain inside the nipple, contributing to a reduction in your cleaning time
Can be used in a wide range of applications such as food, chemicals and solvents
Flexible Fluorine Resin Hose Series
Original fittings with less fluid accumulation at the nipple edge
Ferrule-Shaped Swage Fittings
Following problems will be solved.
- Hose comes off from the fittings.
- The edge of the nipple is not clean.
- It takes a lot of time to clean the inside of the hose.
Four Types of “Flexible Fluorine Resin Hose Series” $\times$ Ferrule Fittings (Swage Normal Type) are available for you to choose.
* If you are interested in other types of “Flexible Fluorine Resin Hose Series” $\times$ Ferrule Fittings, please click below.
- Plant Equipment (as a Sight Glass)
- Semiconductor-related Devices and FPD Manufacturing Devices
- Manufacturing Facilities for Food, Cosmetics and Pharmaceuticals
- Production Facilities for Power Plants, Chemicals, Waste Oils and Waste Fluids
- For Transferring Electrode Slurry and Cathode Slurry used in Lithium-ion Battery (LIB)
RoHS 2 Free
Ferrule Fittings, designed by HAKKO CORPORATION, are swaged. At the time of shipment, we conduct pressure-proof and leak tests for all products. Since the product is fastened by HAKKO CORPORATION, it is secure without fluid leakage and/or disconnection from the fittings. Ferrule Fittings are easier to install, leading to increase the work efficiency and be able to standardize the job.

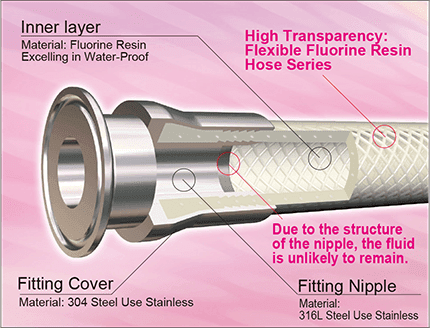

2. Sanitary Fittings with Less Fluid Accumulation at the Nipple Edge
Because of a nipple shape with less fluid accumulation, it is possible to transfer fluids in a sanitary way. The material of the fitting body is made of SUS316L, known as a corrosion-resistant material. Thus, this is also suitable for chemical cleaning inside the hose.
3. Hose shows high transparency, chemical resistance, hygiene and washability.
Flexible Fluorine Resin Hose Series show high transparency, so you can check the fluids with secure. Since the inner layer of Flexible Fluorine Resin Hose Series is made of fluorine, they have excellent chemical resistance and can stand against most of the chemicals. For more information, please refer to the chemical resistance data available on our website. Moreover, the inner layer shows properties of water-repellent and non-adhesiveness, making it less likely to remain the fluids. Thus, it is easier to clean up. Flexible Fluorine Resin Hose Series meet the standards of the Food Sanitation Law (No. 370 of the Ministry of Health and Welfare, 1959).[Please contact us regarding the conformity of “Partial Revision of the Food Sanitation Law” (Effective on June 1, 2020) and Positive List System (PL) from here.]
Problem 1: Cosmetics manufacturing factory requires longer time in washing the hoses and fittings.
Company A, manufacturing various kinds of cosmetics, has been using Olefin hose with nut-type fittings (fittings without hose clamps). However, longer washing time becomes a problem, as it lowers the productivity. Thus, to improve the productivity, Company A is looking for the alternative types of hose and fitting.
HAKKO Solution 1:
HAKKO proposed E-SJB-F: Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose with Ferrule Fittings (Swage Type). An inner layer of E-SJB-F is made of ETFE Fluorine, known as non-adhesiveness feature. E-SJB-F is a ferrule fitting type, the fluid is less likely to remain near the fittings. As a result, cleaning time is reduced and Company A is satisfied with the productivity improvement.
Problem 2: Solvent-Transfer Piping as an Alternative of SUS (Stainless Steel) Flange Ferrule Pipe
In their plant, company A has been using SUS (Stainless Steel) flange ferrule pipes for transferring solvents. However, due to the limited space, some pipes require the flexibility. Besides, the engineer requests a transparent hose. Thus, Company A has to look for an alternative hose.
HAKKO Solution 2:
HAKKO proposed E-SJSP-F: Flexible Fluorine (ETFE) Resin SUS Spring Wire Hose with Ferrule Fittings (Swage Type). An inner layer of E-SJSP-F is made of ETFE Fluorine that is resistant to solvents. The engineer confirms that E-SJSP-F is a transparent and flexible hose. Also, the both ends are tightened by ferrule fittings that fit in well with the existing equipment. As a result, Company A decides to use E-SJSP-F.

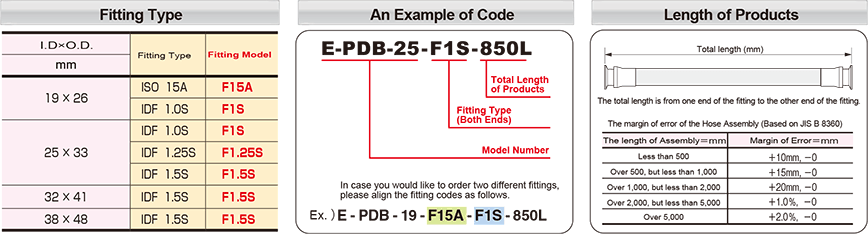

How to choose hoses and ferrule fittings

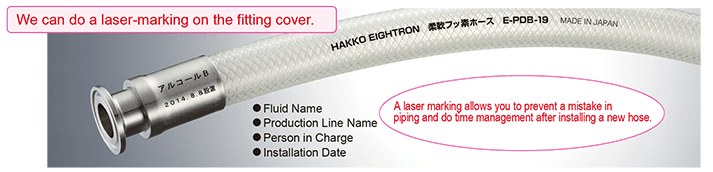

Free of Charge: Laser-Marking Service
How to place an order of Ferrule Fittings (Swage Type)
A: Decide Hose Model Number: Choose the best hose (hose sizes) for your applications and fitting model you selected.
B: Decide Fitting Model: Either F15A, F1S, F1.25S or F1.5S
C (Optional) Decide you will have the optional processing: Either OSF, PFA or EP
D: Decide the Total Length: Please refer to the table, “Length of Products” above and determine the total length.
E. (Optional) Write down the statement that is engraved on the fitting cover (Laser-marking service)
*Regarding your inquiry of ferrule fittings, please fill out the form below. Please make sure to review “How to Choose Hoses and Ferrule Fittings” and specify the part number (Example: E-SJSP-19-F15A-1,000L), quantity and any other requests under “Your Message” Section.
