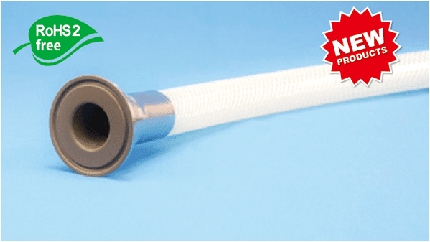

Flexible Fluorine Resin Hose Series Ferrule Fittings (Swage Type) with PFA Lining
Three Types of “Flexible Fluorine Resin Hose Series” $\times$ Ferrule Fittings (Swage PFA Lining Type) are available for you to choose.
- Flexible Fluoirine (PVDF) Resin Yarn Reinforced Hose with Ferrule Fittings [Model Number: E-PDB-F-PFA]
- Flexible Fluoirine (ETFE) Resin Yarn Reinforced Hose with Ferrule Fittings [Model Number: E-SJB-F-PFA]
- Flexible Fluoirine (ETFE) Resin Yarn SUS Spring Wire Hose with Ferrule Fittings [Model Number: E-SJSP-F-PFA]
* If you are interested in other types of “Flexible Fluorine Resin Hose Series” $\times$ Ferrule Fittings, please click below.
Applications
- Semiconductor-related Devices, Flat Panel Display (FPD), Manufacturing Devices
- Food, Cosmetics, Medical Manufacturing Equipment
- Manufacturing Equipment for Chemicals and Organic Solvents
Functions
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Sanitary Fittings
Washability

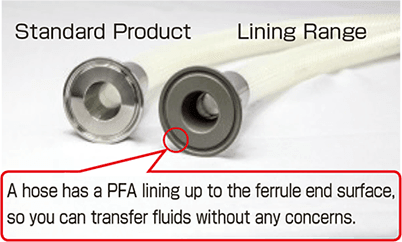

Characteristics PFA Lining

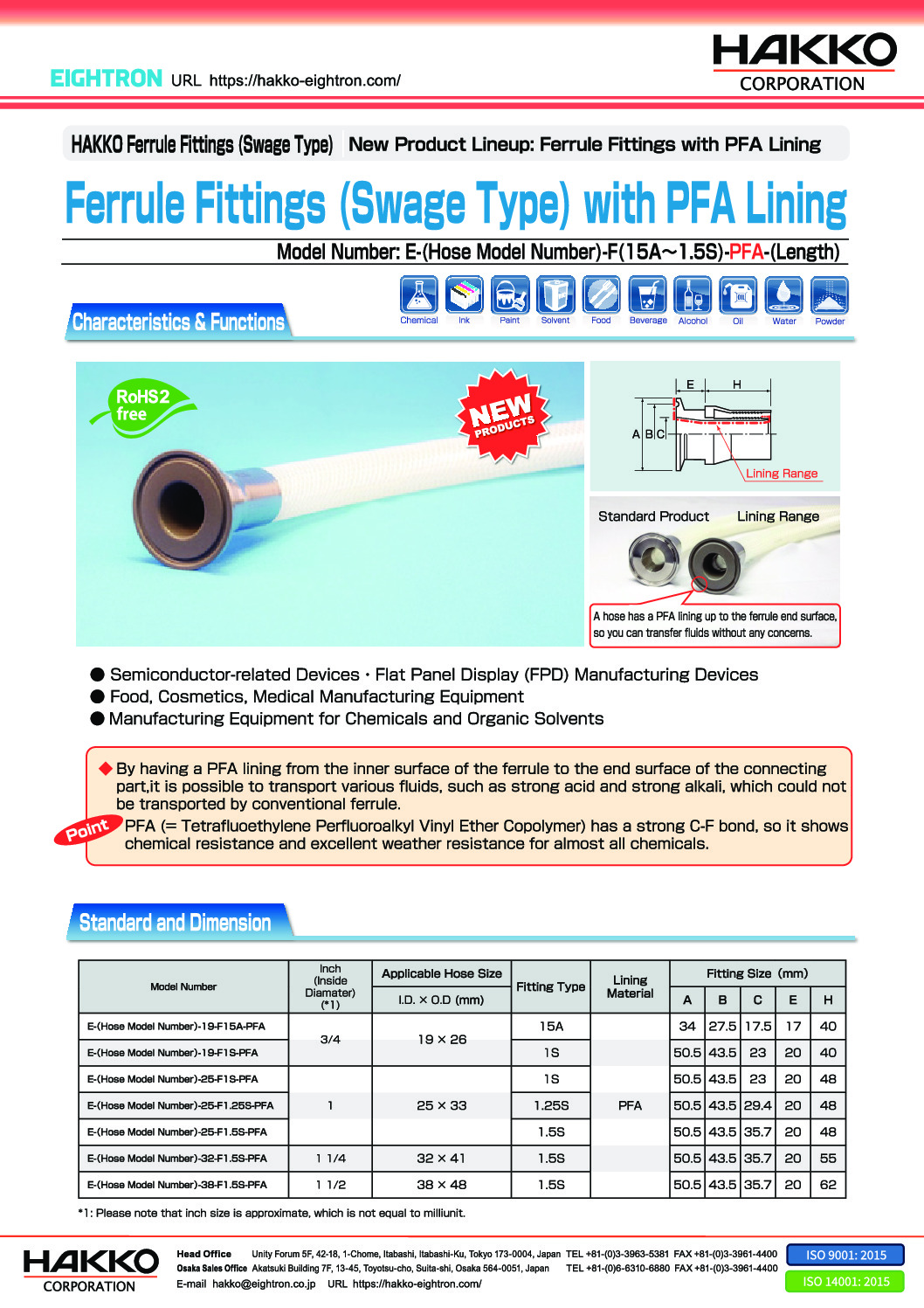

Leaflet Request
For more information on our Product Standard of E-PDB-PFA / E-SJB-PFA / E-SJSP-PFA, please click "Product Leaflet Download" above.
For more information on our Product Standard of E-PDB-PFA / E-SJB-PFA / E-SJSP-PFA, please click "Product Leaflet Download" above.
Flexible Fluorine (PVDF) Resin Yarn Reinforced Hose with PFA Lining Ferrule Fittings [Model Number: E-PDB-F-PFA]
Fluids
chemicals
ink
food
drink
cosmetics
alcohol
oil
water
powderApplications
- For Transferring Chemicals used in Laboratory Equipment
- For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
- For Transferring Beverage and Food
- For Transferring Alcohol. Cosmetics, and Chemicals
- For Transferring Chemicals used in Medical Equipment. Endoscope. and so on
- For Transferring Chemicals used in Manufacturing Fuel Cell and Pure Water
- For Air Supplying Pipes at Clean Room
- For Transferring Screw, Metal Powder, and Solids
Functions
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Food-Sanitation
Pressure-Proof
Gas Barrier
Transparency
Oil-Proof
Characteristics
- Sanitary Fittings…Our original sanitary ferrule fittings fit in well with E-PDB. You do not have to worry about the fluid leakage. Fittings do not come off from the hose. Ferrule fittings allow you to install easily in your workplace and improve the work efficiency. Standardization is possible.
- Safety…Clearly specify the temperature range and working pressure for each hose.
- Sanitation…The edge of nipple is processed as taper, so the gap between the hose inside and the edge of nipple is small. Thus, fluid accumulation of the edge of nipple is minimized.
- Transparency…You can easily check the fluid since E-PDB has higher levels of transparency.
- Chemical Resistance…Fitting nipple is made of SUS316L and the inner layer is made of PVDF. So it is superior in chemical resistance. It can stand proof against a wide range of usages and fluids.
- RoHS2…E-PDB-F-PFA is free from RoHS2 restrictive substances. Certificate is available on request.
- Food Sanitation…E-PDB-F-PFA conforms to the Food Sanitation Law No.370 (No.370 of the Ministry of Health and Welfare for Food Sanitation). (Conformity to N-Heptane). Certificate is available on request.
* Regarding characteristics on E-PDB, please visit the website: “Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose.”
Product Standard
| Model Number | Ferrule Fitting Type | I.D.$\times$O.D. | Working Pressure | Working Pressure | Minimum Bend Radius |
| 20$^\circ$C | 20$^\circ$C | 20$^\circ$C | |||
| mm | MPa | Bar | mm | ||
| E-PDB-19-F15A-PFA | 15A | 19$\times$26 | 0 - 1.0 | 0 - 10 | 135 |
| E-PDB-19-F1S-PFA | 1S | 19$\times$26 | 0 - 1.0 | 0 - 10 | 135 |
| E-PDB-25-F1S-PFA | 1S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-PDB-25-F1.25S-PFA | 1.25S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-PDB-25-F1.5S-PFA | 1.5S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-PDB-32-F1.5S-PFA | 1.5S | 32$\times$41 | 0 - 0.5 | 0 - 5 | 225 |
| E-PDB-38-F1.5S-PFA | 1.5S | 38$\times$48 | 0 - 0.5 | 0 - 5 | 265 |
- Temperature Range : -20 – 80 $^\circ$C
- Color : Clear
* Please click below for a E-PDB-F product.

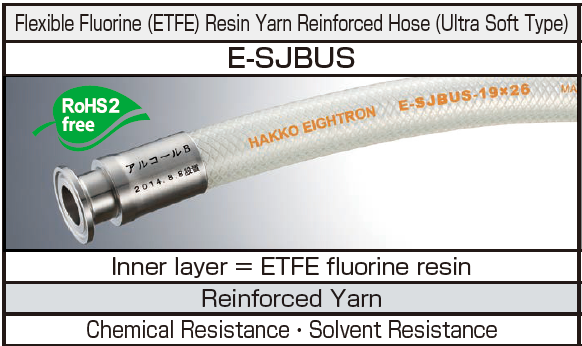

Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose with PFA Lining Ferrule Fittings [Model Number: E-SJB-F-PFA]
Fluids
chemicalsink
paint
fluxfooddrinkcosmeticsalcoholoilwaterpowderApplications
- Machine Tools • Molding Machine • Factory Equipment
- Semiconductor-related Devices • Flat Panel Display (FPD) Manufacturing Devices
- Food, Cosmetics, Medical Manufacturing Equipment
- Manufacturing Equipment for Power Plant, Chemicals, Waste Oil, Waste Liquid, and Organic Solvents
Functions
Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Pressure-Proof
Gas Barrier
Transparency
Oil-Proof
Alcohol Resistance
Characteristics
- Sanitary Fittings…Our original sanitary ferrule fittings fit in well with E-SJB. You do not have to worry about the fluid leakage. Fittings do not come off from the hose. Ferrule fittings allow you to install easily in your workplace and improve the work efficiency. Standardization is possible.
- Safety…Clearly specify the temperature range and working pressure for each hose.
- Sanitation…The edge of nipple is processed as taper, so the gap between the hose inside and the edge of nipple is small. Thus, fluid accumulation of the edge of nipple is minimized.
- Transparency…You can easily check the fluid since E-SJB has higher levels of transparency.
- Chemical Resistance…Fitting nipple is made of SUS316L and the inner layer is made of ETFE. So it is superior in chemical resistance. It can stand proof against a wide range of usages and fluids.
- RoHS2…E-SJB-F-PFA is free from RoHS2 restrictive substances. Certificate is available on request.
- Food Sanitation…E-SJB-F-PFA conforms to the Food Sanitation Law No.370 (No.370 of the Ministry of Health and Welfare for Food Sanitation). (Conformity to N-Heptane). Certificate is available on request.
* Regarding characteristics on E-SJB, please visit the website: “Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose.”
Product Standard
| Model Number | Ferrule Fitting Type | I.D.$\times$O.D. | Working Pressure | Working Pressure | Minimum Bend Radius |
| 20$^\circ$C | 20$^\circ$C | 20$^\circ$C | |||
| mm | MPa | Bar | mm | ||
| E-SJB-19-F15A-PFA | 15A | 19$\times$26 | 0 - 1.0 | 0 - 10 | 135 |
| E-SJB-19-F1S-PFA | 1S | 19$\times$26 | 0 - 1.0 | 0 - 10 | 135 |
| E-SJB-25-F1S-PFA | 1S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-SJB-25-F1.25S-PFA | 1.25S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-SJB-25-F1.5S-PFA | 1.5S | 25$\times$33 | 0 - 1.0 | 0 - 10 | 175 |
| E-SJB-32-F1.5S-PFA | 1.5S | 32$\times$41 | 0 - 0.5 | 0 - 5 | 225 |
| E-SJB-38-F1.5S-PFA | 1.5S | 38$\times$48 | 0 - 0.5 | 0 - 5 | 265 |
- Temperature Range : -20 – 80 $^\circ$C
- Color : Clear
- Material: Fitting Cover: SUS 304, Fitting Nipple: SUS 316L＋ PFA Lining
* Please click below for a E-SJB-F product.

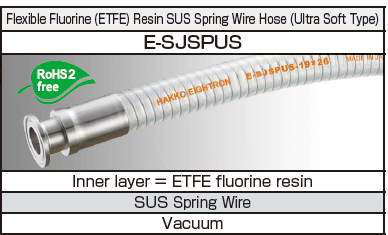

Flexible Fluorine (ETFE) Resin SUS Spring Wire Hose with PFA Lining Ferrule Fittings [Model Number: E-SJSP-F-PFA]
Fluids
chemicalsinkpaintfluxfooddrinkcosmeticsalcoholoilwaterpowderApplications
- Machine Tools, Molding Machine, Factory Equipment
- Semiconductor-related Devices, Flat Panel Display (FPD) Manufacturing Devices
- Food, Cosmetics, Medical Manufacturing Equipment
- Manufacturing Equipment for Power Plant, Chemicals, Waste Oil, Waste Liquid, and Organic Solvents
Functions
Solvent Resistance
Non-PVC
Non-Adhesiveness
Chemical Resistance
Low Elution
Low Odor
Food-Sanitation
Pressure-Proof
Vacuum
Gas Barrier
Transparency
Oil-Proof
Hard to Break
Alcohol Resistance
Characteristics
- Sanitary Fittings…Our original sanitary ferrule fittings fit in well with E-SJSP. You do not have to worry about the fluid leakage. Fittings do not come off from the hose. Ferrule fittings allow you to install easily in your workplace and improve the work efficiency. Standardization is possible.
- Safety…Clearly specify the temperature range and working pressure for each hose.
- Sanitation…The edge of nipple is processed as taper, so the gap between the hose inside and the edge of nipple is small. Thus, fluid accumulation of the edge of nipple is minimized.
- Transparency…You can easily check the fluid since E-SJSP has higher levels of transparency.
- Chemical Resistance…Fitting nipple is made of SUS316L and the inner layer is made of ETFE. So it is superior in chemical resistance. It can stand proof against a wide range of usages and fluids.
- RoHS2…E-SJSP-F-PFA is free from RoHS2 restrictive substances. Certificate is available on request.
- Food Sanitation…E-SJSP-F-PFA conforms to the Food Sanitation Law No.370 (No.370 of the Ministry of Health and Welfare for Food Sanitation). (Conformity to N-Heptane). Certificate is available on request.
* Regarding characteristics on E-SJSP, please visit the website: “Flexible Fluorine (ETFE) Resin Yarn Reinforced Hose.”
Product Standard
| Model Number | Ferrule Fitting Type | I.D.$\times$O.D. | Working Pressure | Working Pressure | Minimum Bend Radius |
| 20$^\circ$C | 20$^\circ$C | 20$^\circ$C | |||
| mm | MPa | Bar | mm | ||
| E-SJSP-19-F15A-PFA | 15A | 19$\times$26 | -0.1 - 0.4 | -1 - 4 | 75 |
| E-SJSP-19-F1S-PFA | 1S | 19$\times$26 | -0.1 - 0.4 | -1 - 4 | 75 |
| E-SJSP-25-F1S-PFA | 1S | 25$\times$33 | -0.1 - 0.4 | -1 - 4 | 100 |
| E-SJSP-25-F1.25S-PFA | 1.25S | 25$\times$33 | -0.1 - 0.4 | -1 - 4 | 100 |
| E-SJSP-25-F1.5S-PFA | 1.5S | 25$\times$33 | -0.1 - 0.4 | -1 - 4 | 100 |
| E-SJSP-32-F1.5S-PFA | 1.5S | 32$\times$41 | -0.1 - 0.3 | -1 - 4 | 130 |
| E-SJSP-38-F1.5S-PFA | 1.5S | 38$\times$48 | -0.1 - 0.3 | -1 - 4 | 150 |
- Temperature Range : -20 – 80 $^\circ$C
- Color : Clear
* Please click below for a E-SJSP-F product.
