Push-to-Connect Fittings for Air Hose Series [Model Number: E-RSS/E-RSP]

Air Hose Fittings | Rotary & Lock Function, Safe, Made-in-Japan One-Touch Coupling | With Bend Restrictor

Leaflet Request

Applications

• Fittings for Automobile / Motorcycle Maintenance (including Tier 1 and Tier 2)
• Fittings for Air Compressor, Woodwork and Factory Facilities

Functions

Characteristics

• Original Fittings...By using the original fittings for E-NF and E-SNF, you can avoid mismatches which are caused by incorrect choices of hose and fittings.
• Lock Function...After installing E-RSS, if you turn left of the socket part, E-RSS will be locked. Lock function prevents the detachment from socket to plug.

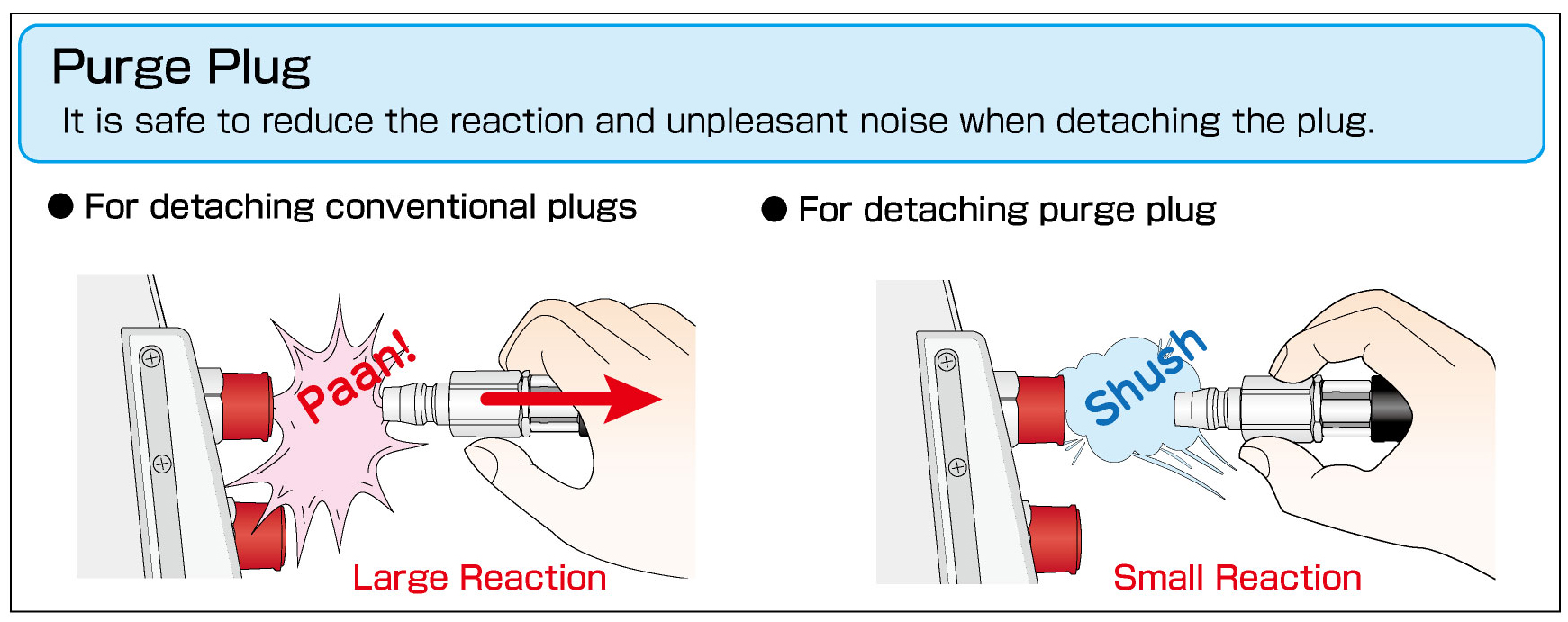

• Purge Plug...E-RSP has a purge function (the residual pressure in the hose is evacuated). When you disconnect the plug, you can eliminate the discomfort of "Burn!" and the reaction against hose joint.

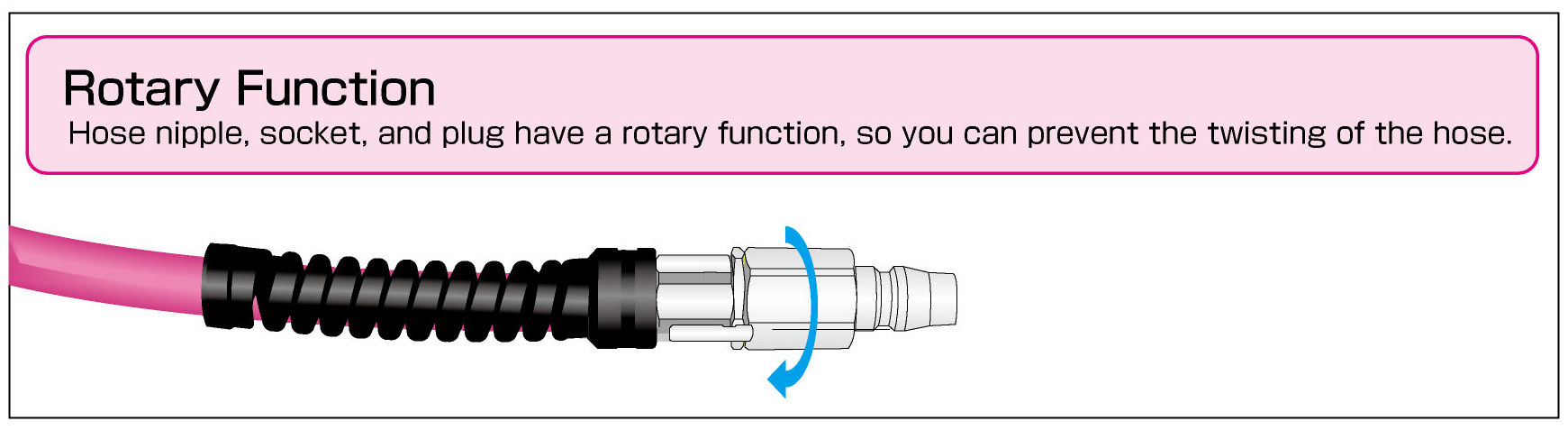

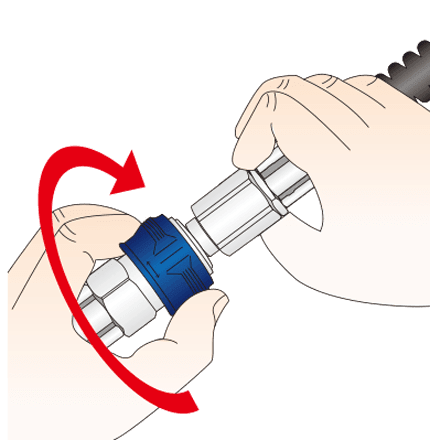

• Rotary Function...E-RSS/E-RSP has rotary functions at the connection parts, so they can prevent the twisting of the hose.
• RoHS Compliant...E-RSS/E-RSP are compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-RSS/E-RSP do not contain RoHS 10 restricted substances or they do not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
• Non-Use of UV-328...E-RSS/RSP does not contain UV-328. Certificate is available on request.

Features

[Lock Socket]
Lock Function prevents the unintentional detachment.

[Purge Plug]
Reducing the noise when disconnecting the fittings is possible.

[Rotary Function]
Rotary function prevents the twisting of the hose.

Product Standard

Type	Image	Model Number	Hose Size	Material	Product Weight
			I.D. $\times$ O.D.（mm）		g / piece
Socket		E-RSS-65P	6.5$\times$10	Steel Chrome plaring	132
		E-RSS-85P	8.5$\times$12.5		146
Plug		E-RSP-65P	6.5$\times$10		88
		E-RSP-85P	8.5$\times$12.5		102

How to Install the Fittings

Applicable Hose

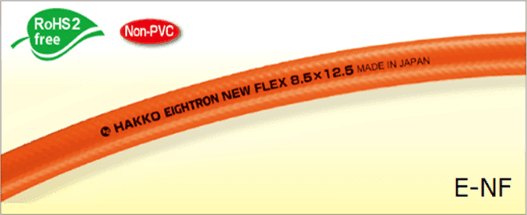

(A) NEW FLEX Air Hose [Model Number: E-NF]

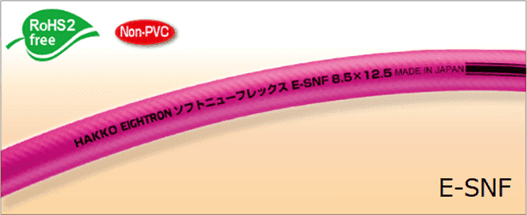

(B) Soft NEW FLEX Air Hose [Model Number: E-SNF]

(C) Soft NEW FLEX Air Hose (Red Color) [Model Number: E-SNF-RED]

Frequently Asked Question

Question: Can we install E-RSS/E-RSP with Air Hose by ourselves?
Answer: Yes, you can install E-RSS/E-RSP Fittings with Air Hose at site. If this is troublesome for you, we can install E-RSS/E-RSP fittings. In this case, please use the model number either E-SNF-RC or E-NF-RC.

HAKKO Original Fittings for E-RSS/E-RSP

Product Name	Materials, Characteristics
Push-to-Connect Fittings for Air Hose Series [Model Number: E-RSS/E-RSP]]	Socket and Plug are connectable without effort. The spring part prevents the twisting of the hose due to the rotary function. Lock function of the socket prevents the hose from hooking off the plug.
