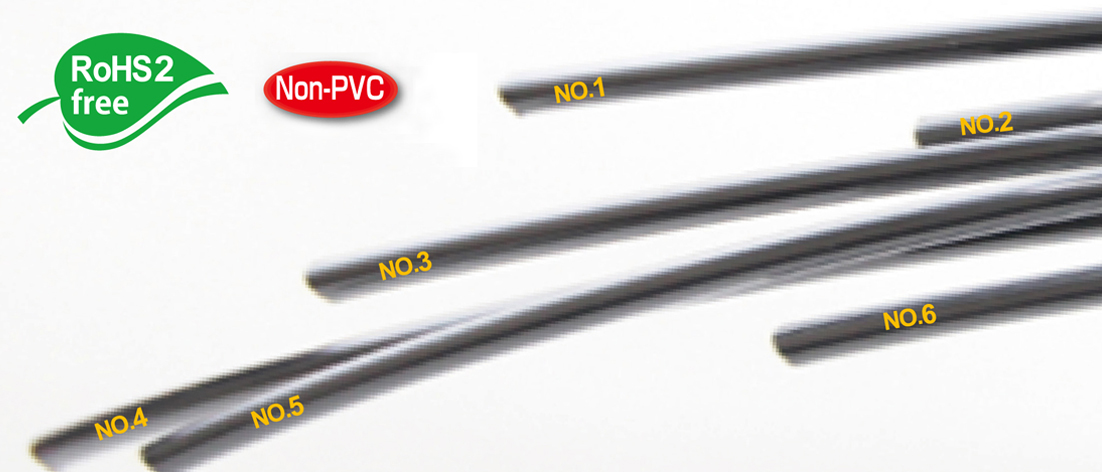

Multi-Line Tubing with Layer and Slit Cutting
Multi-Line Tubing | Up to 8 Lines | Outer Diameter Size up to 8mm | Possible to Install without Cable Conveyor
Tubing depends on customer requirements. | Slit and Layer Cut Based on Customer's Specifications
Fluids
inkUVinkApplications
For Industrial Ink-Jet Printers (For Ink-Supplying Pipes)
Functions
Solvent Resistance
Non-PVC
Flexibility
Ink Resistance
Characteristics
- Up to 8 Lines: We can manufacture a multi-line tubing up to 8 lines. Thus, you can save time to insert a single tubing one by one.
- Tailored to Customer Specifications: Since a multi-line tubing is based on a single-line tubing tailored to the customer needs, you can have your own multi-line tubing.
- Number Marking: We can put number marking onto the tubing, which prevents you from inserting into the incorrect fittings.
- No Glues: This multi-line product can be slit without leaving any marks of heat fusion.
- Layer-Cut & Slit Cut: We can offer you a layer-cut and slit-cut processing.
- Straightness (Flatness) : We control that the cross-section of each tubing stays the flat.
- Save Assembly Time: By adopting multi-line products, you can save assembly time, compared to the insertion time of all ink tubing to fittings. This leads to the improvement of work efficiency.
- Avoid Assembly Mistake: By adopting multi-line products, you can avoid assembly mistake. This also leads to the reduction in the labor costs.
Product Standard
Made-to-Order Product: Size and Length Example
Model Number | Tubing Model | Tubing Size I.D. (mm) | Tubing Size O.D. (mm) | Number of Lines | Layer Cutting | Slit Cutting | Total Length (m) |
PD-2$\times$4-3R-LC-SC 20m | 2 | 4 | 3 | LC | SC | 20 |
|
SJ-2$\times$4-6R-BK-LC 20m | 6 | LC | - |
||||
SJ-3$\times$5-4R-SC 15m | 3 | 5 | 4 | - | SC | 15 |
|
SJUS-4$\times$6-BK-6R-LC-SC 20m | 4 | 6 | 6 | LC | SC | 20 |
|
SJ-4$\times$6-4R-LC 10m | 4 | 6 | 4 | LC | - | 10 |
|
SJUS-4$\times$6-6R-SC 20m | 6 | - | SC | 20 |
|||
BTO-2$\times$4-4R-LC-SC 20m | 2 | 4 | 4 | LC | SC |
||
BTF-3$\times$5-6R-SC 10m | 3 | 5 | 6 | - | SC | 10 |
|
BTF-4$\times$6-BK-6R-LC-SC 10m | 4 | 6 | 6 | LC | SC |
*The above table is just an example. For how to determine the model number code, please refer to "How to Determine the Model Number."
*If you request a layer cutting or slit cutting, please specify the length for each tubing by sending us a drawing. Please note that we might not be able to accept your request, depending on the drawing.

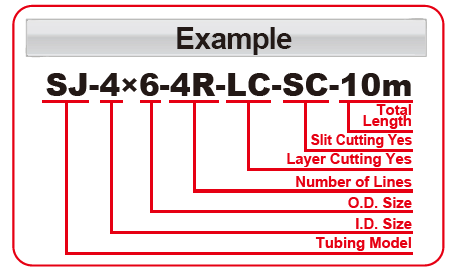

How to Determine the Model Number
- Determine a single tubing model number. The followings are available for your choice: E-PD, E-SJ, E-SJ-BK, E-SJUS, E-SJUS-BK, E-BTO, E-BTF, and E-BTF-BK.
- Determine I.D. and O.D. sizes of the single tubing.
- Determine the Number of Lines. (Please note that the maximum is 8.)
- Determine whether or not you request us to process a Layer-Cutting (LC) and / or a Slit-Cutting (SC). If you request a Layer-Cutting (LC) and / or a Slit-Cutting (SC), please send your drawing.
- Determine the Total Length of the Multi-Line Tubing Product. (Please note that the maximum length is 20 meter (65 Feet).)
*Please note that this is a made-to-order product, so Minimum Order Quantity applies. For more information, please send an inquiry form below.
Leaflet Request

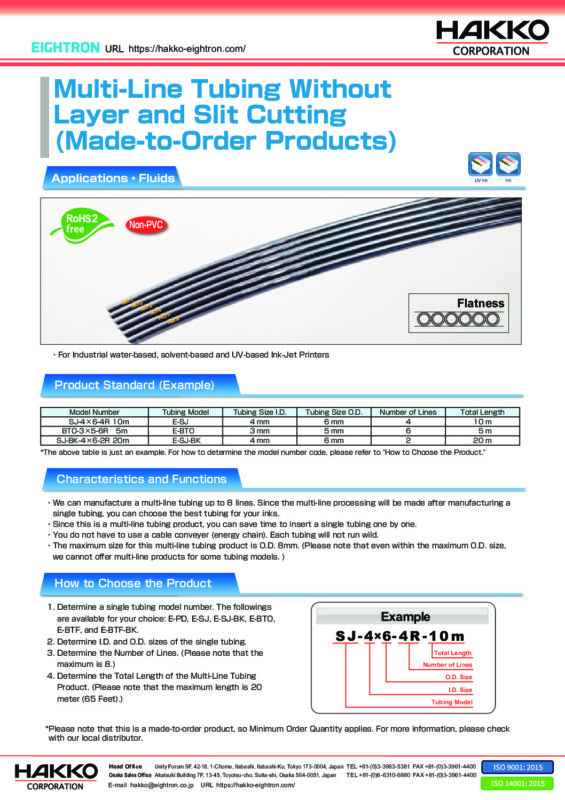

For more information on our Product Standard of Multi-Line Tubing (Layer and Slit Cutting), please click "Product Leaflet Download" above.
