Flexible Fluorine (PVDF) Resin Yarn Reinforced Hose [Model Number: E-PDB]

Multi-Purpose / Chemical Resistance Hose | Single-layer teflon hose is hard and easy to break. Our Flexible Fluorine (PVDF) Resin Yarn Reinforced Hose is an alternative hose for a teflon hose.

Sample Request Food Grade Certificate Request Leaflet Request Specification Request

Fluids

ink

food

drink

alcohol

oil

water

powder

Applications

For Transferring Chemicals used in Laboratory Equipment
For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
For Transferring Beverage and Food
For Transferring Alcohol, Cosmetics, and Chemicals
For Transferring Chemicals used in Medical Equipment, Endoscope and so on
For Transferring Chemicals used in Manufacturing Fuel Cell and Pure Water
For Air Supplying Pipes at Clean Room
For Transferring Screw, Metal Powder and Solids

Functions

Non-PVC

Non-Adhesiveness

Chemical Resistance

Low Elution

Food-Sanitation

Pressure-Proof

Gas Barrier

Transparency

Oil-Proof

Cold Resistance

Alcohol Resistance

Characteristics

Chemical Resistance...Since the inner layer is made of PVDF fluorine resin, E-PDB is resistant to most of the chemical substances. (Please note that E-PDB does not stand proof against organic solvents such as Amine and Ketones, so we recommend you to use E-SJB). For more information, please refer to chemical resistance data.
Flexibility...Due to the laminated structure, compared with a single-layer fluorine tubing, E-PDB is superior in flexibility. This improves your work efficiency.
Gas Barrier...The inner layer of PVDF fluorine has a higher level of gas barrier property, which is suitable for the fluid with high volatility.
Hard to Break...Unlike a single-layer fluorine tubing, E-PDB is hard to break. (Even if it breaks, you can restore its shape to some extent.)
Non-Adhesiveness...Since fluorine resin is superior in water-proof and non-adhesiveness, you can wash out the fluids very easily.
Plasticizer-Free...E-PDB does not contain plasticizer (an elution material) at all. E-PDB is an oil-free tubing.
Non-PVC...E-PDB is made of a non-PVC material.
Low Elution and Low Odor...Since E-PDB contains very low levels of elution and odor, it is highly recommended for use in transfers of food, beverage and cosmetics.
High Purity...Fluorine resin does not contain any additives such as plasticizer, so E-PDB is suitable for transferring high purity chemical fluids.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Transparency...E-PDB enables you to check the fluid very easily.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-PDB is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-PDB does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request. ICP data (Contained Amount Analysis Data of RoHS Restricted Substances) are also available on request.
FDA Compliant (Inner Layer Only)...The inner layer of E-PDB (PVDF material) conforms to FDA standards. Certificate is available on request.
Non-Use of UV-328...E-PDB does not contain UV-328. Certificate is available on request.
Food Sanitation Act Compliant...E-PDB conforms to the Food Sanitation Act No.380 (No.380 of the Ministry of Health and Welfare for Food Sanitation) (Conformity to N-Heptane) and the Food Sanitation Act No.324 (Positive List System) [No.324 of the Ministry of Health, Labour, and Welfare]. Regarding the conformity of the Food Sanitation Act No.324 (Positive List System), please download the certificate.

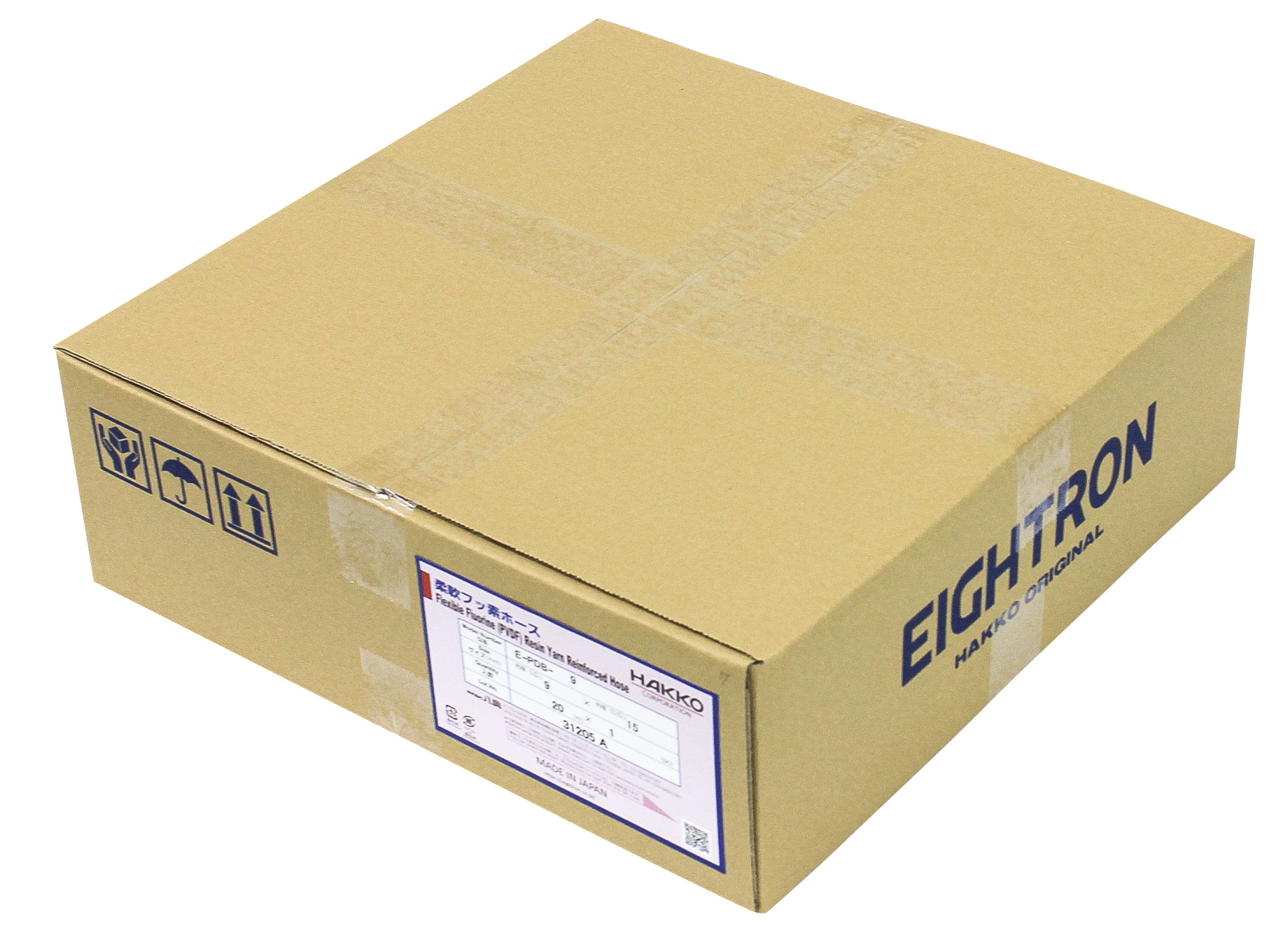

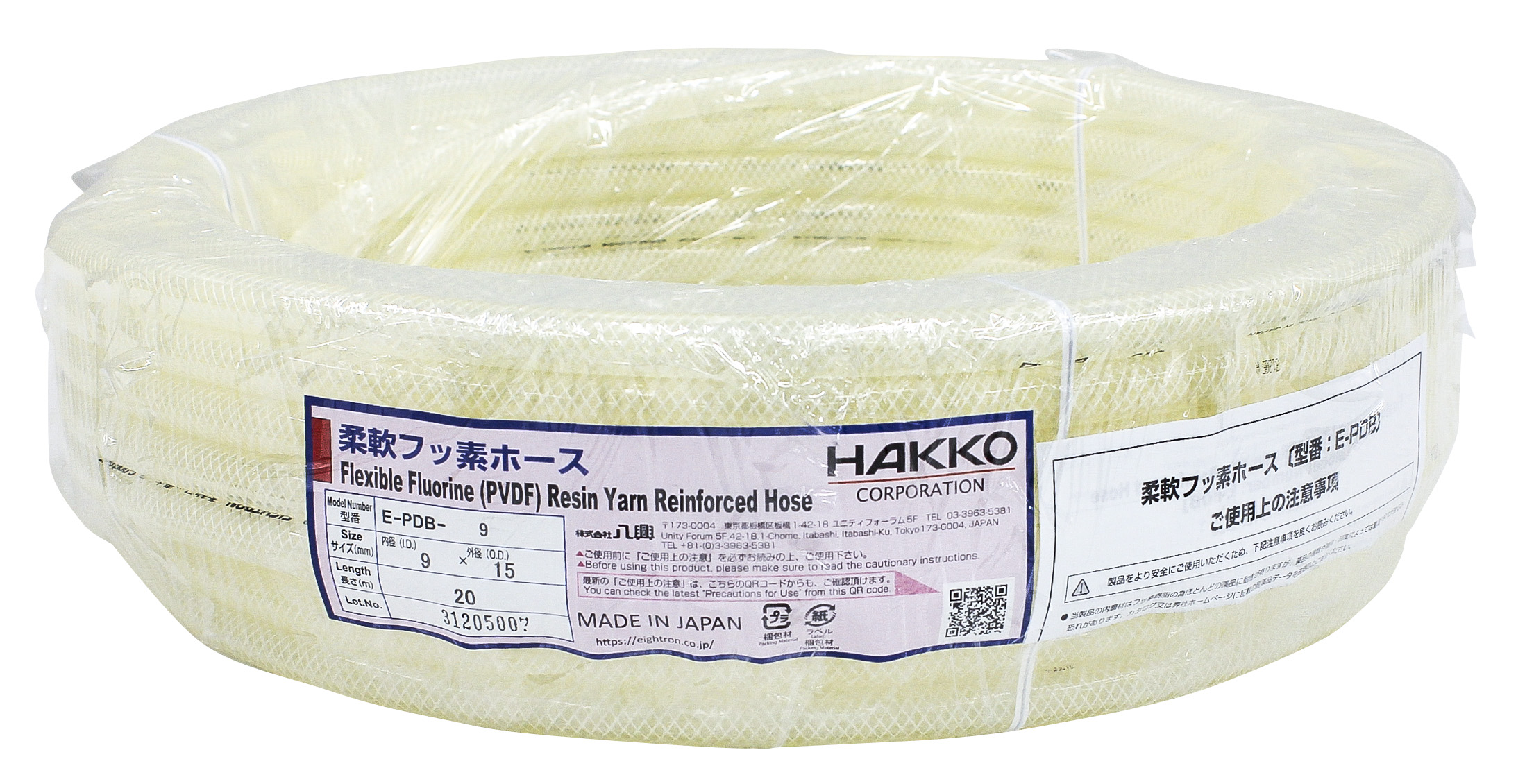

Packing Images

Product Standard

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	Standard Length	I.D. $\times$ O.D.	20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-PDB-9	20	9 $\times$ 15	0 - 1.0	0 - 10	65
E-PDB-12		12 $\times$ 18			85
E-PDB-15		15 $\times$ 22			105
E-PDB-19		19 $\times$ 26			135
E-PDB-25		25 $\times$ 33			175
E-PDB-32		32 $\times$ 41	0 - 0.5	0 - 5	225
E-PDB-38		38 $\times$ 48	0 - 0.5	0 - 5	265
E-PDB-50		50 $\times$ 62	0 - 0.4	0 - 4	500

Temperature Range : -20 - 80 $^\circ$C (-4$^\circ$F - 176$^\circ$F)
Color : Clear

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

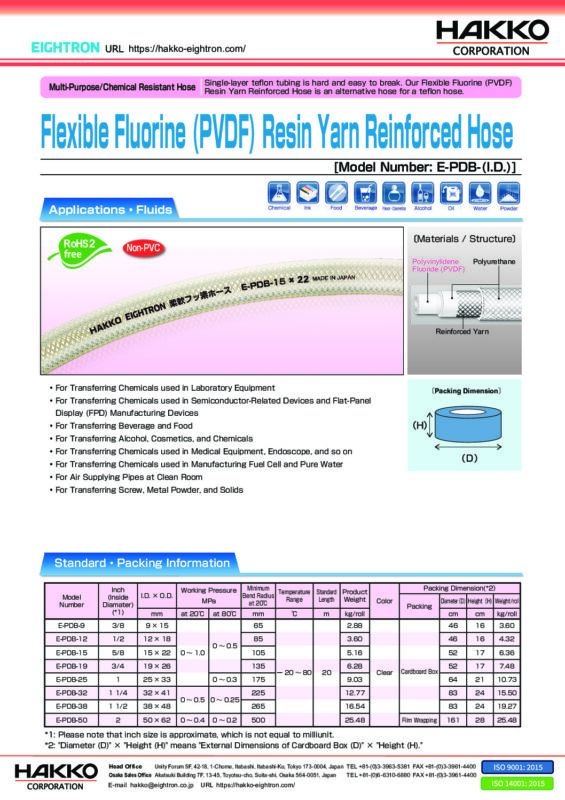

Leaflet Request

For more information on our Product Standard of E-PDB, please click "Product Leaflet Download" above.

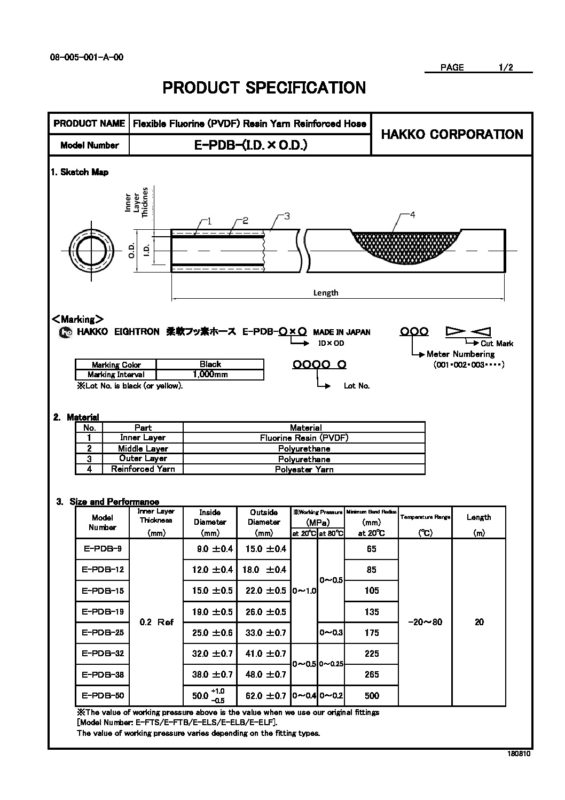

Specification Request

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-PDB, please click "Product Specification Download" above.

Cautions:

Due to the laminated structure hose, please use the joints to seal an inner surface of the hose.
Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
When you use our products, please refer to "Precautions for Use." ("The Precautions for Use" of E-PDB is also downloadable here.)
In terms of chemical resistance, please refer to "Chemical Resistance Data."
Although the inner layer is made of PVDF fluorine, please make sure whether or not E-PDB is usable for high purity fluids before you use.
Although the inner layer is resistant to fluids, depending on working environments, the fluids would be permeated through the inner layer, resulting in the danger of swelling and degradation of the middle or outer layer.

Application Examples

Example 1: Insulating Oil Transfer (X-ray Irradiation Equipment Manufacturer)

Customer A is looking for a hose that stands up to 70$^\circ$C (158$^\circ$F) and 0.3 MPa (3 bar). Also, since Customer A transfers insulating oil, a hose has to have the features of oil resistance and gas barrier. After the product search, Customer A found HAKKO Flexible Fluorine (PVDF) Resin Yarn Reinforced Hose [E-PDB] and has concluded that E-PDB is the best hose for this application.

Technical Information

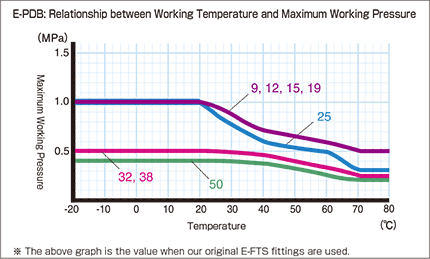

(A) Relationship Graph between Working Temperature and Maximum Working Pressure

E-PDB_Relationship between Working Temperature and Maximum Working Pressure

(B) Non-Adhesiveness Comparison Data

Resins	Critical Surface Tension (dyne/cm)	Contact Angle for Water ($\theta$)
ETFE Fluorine	22	96
PVDF Fluorine	25	82
High Density Polyethylene	31	73
Hard Vinyl Chloride	39	68
PET	43	-
Nylon	46	54

Results: Non-adhesiveness and smoothness, which are peculiar to fluorine resin, make it easier to wash out the fluid. You can check the data about critical surface tension and contact angle against water.

Critical Surface: The surface tension of the assumed fluid which has the contact angle of zero against solid.

(C) Comparative Data on Gas Barrier Property

	Transmission Coefficient (cc/mm/sec・cm²・cmHg)	Transmission Coefficient (cc/mm/sec・cm²・cmHg)
Type of Gas	Polyvinylidene Fluoride	Polyethylene
Oxygen	2.4$\times$10^-12	5900$\times$10^-12
Nitrogen	5.5$\times$10^-12	330$\times$10^-12
Carbonic Acid Gas	9$\times$10^-12	28000$\times$10^-12

HAKKO Original Fittings for E-PDB

Product Name	Materials, Characteristics
EIGHTLOCK S Fittings [Model Number: E-ELS]]	Material: SUS304 (SS304) (Body, Ring, Nut), POM (Sleeve) Our Nut Type Original Made-in-Japan Fittings Since the inner layer of the fitting is flat and does not use the rubber packing, fluid accumulation is unlikely to occur. Thus, it is easy to wash out. Since you do not need hose clamp and the controlling torque value, you can standardize how to install the fitting.

EIGHTLOCK B Fittings [Model Number: E-ELB]]	Material: BSBM (Body, Ring, Nut), POM (Sleeve) Our Nut Type Original Made-in-Japan Fittings Since the inner layer of the fitting is flat and does not use the rubber packing, fluid accumulation is unlikely to occur. Thus, it is easy to wash out. Since you do not need hose clamp and the controlling torque value, you can standardize how to install the fitting.

EIGHTNIPPLE S Fittings [Model Number: E-FTS]]	Material: SUS316L (SS316L) SUS316L (SS316L) is superior in corrosion resistance, so you can transfer a wide range of fluids. Two-stage flat nipple structure which maximizes hose pressure Our Original Barb Nipple Fittings Made-in-Japan Fittings

EIGHTNIPPLE B Fittings [Model Number: E-FTB]]	Material: BSBM (Brass) Compliant with RoHS2 requirement Two-stage flat nipple structure which maximizes hose pressure Our Original Barb Nipple Fittings Made-in-Japan Fittings

EIGHTLOCK Ferrule Fittings [Model Number: E-ELF]]	Material: Body: SCS16, Nut and Ring: SCS13 (Sleeve: POM) You can replace a hose even though the hose needs replacement, since EIGHTLOCK Ferrule Fitting is a nut ferrule fitting. You can install and detach the fitting on site. You can make use of a wide range of usages such as pipes for chemicals, food, beverage and alcohol. The nipple end is less likely to accumulate fluids, so you do not have to worry about contamination very much.

EIGHTLOCK Ferrule Fittings with PFA Lining [Model Number: E-ELF-PFA]]	Material：Body: SCS16, Wetted Part: PFA Lining, Nut and Ring: SCS13 (Sleeve: POM) Due to PFA Lining, you can transfer fluids that are not possible for metal fittings. You can replace a hose even though the hose needs replacement, since EIGHTLOCK Ferrule Fitting is a nut ferrule fitting. You can install and detach the fitting on site. You can make use of a wide range of usages such as pipes for chemicals, food, beverage and alcohol. The nipple end is less likely to accumulate fluids, so you do not have to worry about contamination very much.

EIGHTLOCK S Fittings (with Hose Guide) [Model Number: E-ELS-GN]]	Material: SUS304 (SS304) (Body, Ring, Nut), POM (Sleeve) Our Nut Type Original Made-in-Japan Fittings with Hose Guide Since the inner layer of the fitting is flat and does not use the rubber packing, fluid accumulation is unlikely to occur. Thus, it is easy to wash out. Since you do not need hose clamp and the controlling torque value, you can standardize how to install the fitting. With Hose Guide: prevent kinking

EIGHTLOCK Ferrule Fittings (with Hose Guide) [Model Number: E-ELF-GN]]	Material: SCS16 (Equivalent to SUS316L), Ring: SCS13 (Equivalent to SUS304), Sleeve: POM, Hose Guide/Nut: SUS304 You can replace a hose even though the hose needs replacement, since EIGHTLOCK Ferrule Fitting is a nut ferrule fitting. You can install and detach the fitting on site. You can make use of a wide range of usages such as pipes for chemicals, food, beverage and alcohol. The nipple end is less likely to accumulate fluids, so you do not have to worry about contamination very much. With Hose Guide: prevent kinking

*About Ferrule Fittings with Swage Type (Normal Type) of E-PDB, please click E-PDB-F.

*About Ferrule Fittings with Swage Type (PFA Lining) of E-PDB, please click E-PDB-F-PFA.

*About Ferrule Fittings with Swage Type (EP Processing) of E-PDB, please click E-PDB-F-EP.

Cautions:

For EIGHTNIPPLE S and B Fittings, please fasten with two hose clamps.
For EIGHTLOCK S, B and Ferrule Fittings, its sleeve is not reusable. When you reinstall a hose, please use a new one.

HAKKO Original Accessory for E-PDB

Product Name

Materials, Characteristics

Protective Spring Guards [Model Number: E-HSL]]

Material: SUS304 (Band, Spring and Fastener)
Spring guards prevent kinking, so you can transfer fluids safely.
E-HSL prevents kinking even if the bending radius is small due to the space-saving piping.
When you install E-HSL on the fitting, E-HSL can be used as an alternative to flat band.
