Solvent Transfer Hose [Model Number: E-SV]

Solvent Transfer Hose for Solvent-Based Paints | Paint Hose with Grounding Wire; Possible to eliminate Static Electricity charged to the Spray Gun; Lightweight Paint Hose

Sample Request Leaflet Request Specification Request

Fluids

chemicals

ink

paint

flux

air

Applications

For Manual Painting such as Automobiles, Motorcycles and Auto Parts (Solvent-Based Paints)
For Pipes at Manufacturing Plants of Solvents and Paints
For Transferring Air and Chemicals which require measurements against Anti-Static (Splash Charge)

Functions

Solvent Resistance

Non-PVC

Pressure-Proof

Transparency

Ground Wire

Prevention of Static Charge

Characteristics

Ground Wire...Without taking the ground wire out of the hose and by attaching our original fittings to the hose, you can prevent the splash charge.
Remove Static Electricity...With the ground wire and the conductive line, regardless of hose length, it shows higher ability to remove the static electricity (Patent Registered). Electrical Resistivity Data is available under the section of Technical Information.
Solvent Resistance...Since the inner layer is made of Nylon resin, it shows greater levels of solvent resistance against paints, organic solvents, thinner and so on.
Lightweight...Compared with the standard paint hose made of rubber, E-SV is a lightweight paint hose. As a result, E-SV leads to the reduction on the burdens of your arms and shoulders.
Flexibility...Due to the laminated structure, compared with Nylon tubing, it shows higher levels of flexibility and kink-proof.
Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
Transparency...E-SV (clear color) enables you to check the fluid very easily.
Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

Certificates and Regulations

RoHS Compliant...E-SV is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-SV does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.
EU REACH and UK REACH...E-SV is compliant with REACH SVHC 23rd list (209 substances). Certificate is available on request.
Non-Use of UV-328...E-SV does not contain UV-328. Certificate is available on request.

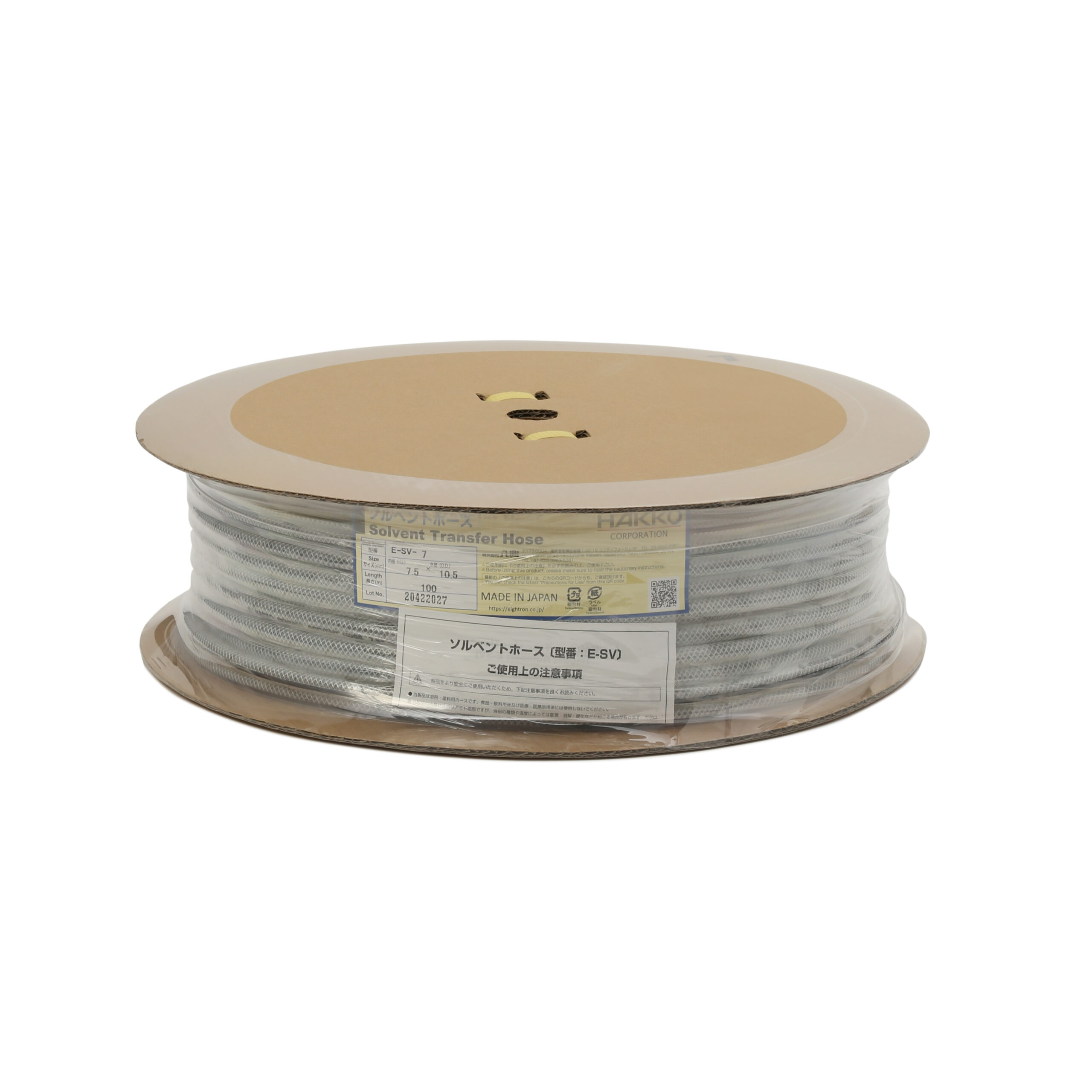

Packing Images (Front and Back Sides)

Product Standard

Hose Only

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20$^\circ$C	20$^\circ$C	20$^\circ$C
	m	mm	MPa	Bar	mm
E-SV-6.5	20	6.5 $\times$ 9.5	0 - 1.5	0 - 15	50
	100
E-SV-7	20	7.5 $\times$ 10.5			60
	100
E-SV-9	20	9.5 $\times$ 14			80
	100

Temperature Range : -20 - 60 $^\circ$C (-4$^\circ$F - 140$^\circ$F)
Color : Clear + Conductive Line

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please contact us and request the sample.

Hose with Fittings (Made-to-Order Product)

Model Number	Hose Model Number	Fittings' Model Number	Fittings' Model Number	Total Length (m)
SV-6.5-G1/4$\times$G1/4-B-10m	E-SV-6.5	E-FB-6.5-G1/4	E-FB-6.5-G1/4	10
SV-6.5-G3/8$\times$G3/8-B-10m		E-FB-6.5-G3/8	E-FB-6.5-G3/8
SV-6.5-G1/4$\times$G1/4-S-10m		E-FS-6.5-G1/4	E-FS-6.5-G1/4
SV-6.5-G3/8$\times$G3/8-S-10m		E-FS-6.5-G3/8	E-FS-6.5-G3/8
SV-6.5-G1/4$\times$G1/4-BG-10m		E-FBG-6.5-G1/4	E-FBG-6.5-G1/4
SV-6.5-G3/8$\times$G3/8-BG-10m		E-FBG-6.5-G3/8	E-FBG-6.5-G3/8
SV-6.5-G1/4$\times$G1/4-SG-10m		E-FSG-6.5-G1/4	E-FSG-6.5-G1/4
SV-6.5-G3/8$\times$G3/8-SG-10m		E-FSG-6.5-G3/8	E-FSG-6.5-G3/8
SV-7-G1/4$\times$G1/4-B-10m	E-SV-7	E-EM-75-G1/4-B	E-EM-75-G1/4-B
SV-7-G3/8$\times$G3/8-B-10m		E-EM-75-G3/8-B	E-EM-75-G3/8-B
SV-7-G1/4$\times$G1/4-S-10m		E-EM-75-G1/4-S	E-EM-75-G1/4-S
SV-7-G3/8$\times$G3/8-S-10m		E-EM-75-G3/8-S	E-EM-75-G3/8-S
SV-9-G3/8$\times$G3/8-B-10m	E-SV-9	E-EM-95-G3/8-B	E-EM-95-G3/8-B

*If you are interested in E-SV with fittings, please inform us of your requested part number and quantity on the following form. (We can change the total length into your preferred length.)

Inquiry Form

Leaflet Request

For more information on our Product Standard of E-SV, please click "Product Leaflet Download" above.

Specification Request

For more technical information (such as Thickness of Each Layer and Precautions in Use) on E-SV, please click "Product Specification Download" above.

Cautions:

Due to the laminated structure hose, please use the joints to seal an inner surface of the hose.
Please do not use the joints to seal an outer surface of the hose. This may result in the bursting or coming off from the hose.
When you use our products, please refer to "Precautions for Use."
In terms of chemical resistance, please refer to "Chemical Resistance Data." ("The Precautions for Use" is also available at the product specifications of E-SV, which can be downloadable from here.)

Case Study

Problem: Fire accident occurred in the paint booth.

Company A, manufacturing plastic injection parts for Tier I automotive company, recently had a fire accident in the paint booth. Although the cause of this fire accident was not identified, a factory manager decided to list all possible causes of the fire. A factory manager found that a nylon tubing was used in the painting processes and looked for the alternative paint hose.

HAKKO Solution:

HAKKO proposed E-SV: Solvent Transfer Hose and provided a sample. E-SV is made of nylon resin with ground wire and conductive line on the outer layer. With these features, E-SV can get rid of the static electricity, charged to the spray gun. Besides this, E-SV is more flexible and easy to handle than a single-layer nylon tubing. As a result, a factory manager decided to use E-SV for all painting lines at their booths.

Selection Chart for Solvents

Product Model Number	I.D Size	Chemical Resistance of Inner Layer	Anti-Static	Vacuum	Color
E-SJ	2mm - 9mm 1/8" - 3/8"		$\times$	$\times$	Clear
E-SJECO	4mm - 6mm		$\times$	$\times$	Clear
E-SJAST	4mm - 8mm			$\times$	Clear
E-SJ-CBU	2mm - 8mm		$\times$	$\times$	Clear Blue
E-SJB	9mm - 38mm		$\times$	$\times$	Clear
E-SJSP	12mm - 38mm		$\times$		Clear
E-SJD	6mm / 8mm			$\times$	Sliver
E-SJSD	12mm - 25mm				Sliver
E-PFF	6.5mm		$\times$	$\times$	Clear
E-PFFG	6.5mm			$\times$	Clear
E-PFN	6.5mm / 8.9mm		$\times$	$\times$	Clear
E-SV	6.5mm - 9.5mm			$\times$	Clear

Chemical Resistance: = Better = Best
Anti-Static: = Yes $\times$ = No
Vacuum: = Yes $\times$ = No

Selection Chart Based on Types of Solvents

Technical Information

(A) Relationship between Working Temperature and Maximum Working Pressure

e-sv_Relationship between Working Temperature and Maximum Working Pressure

(B) Bending Test For Ground Wire

Product Name	Results (Bending Angle 120 Degree; Load 500 Gram)
Solvent Transfer Hose I.D. 7.5mm	Bending 30,000 times without breaking Ground Wire
Copper Wire Sold in the Market	Bending only 110 times before breaking Ground Wire

(C) Paint Hose Series/Data of Soaking into Paint

Test Procedure

Pieces of dumbbell (Inner Layer: Nylon Resin and ETFE Fluorine Resin) are soaked into respective types of paint in order to determine the post-soaking tensile strength and calculate its tensile strength in the formula below.

Tensile Strength (%) = (Tensile Strength After Soaking / Tensile Strength Before Soaking) × 100

Soaking Time: 50 Days (1,200 Hours)

Type of Paint	Inner Layer Material	Retention of Tensile Strength
Clear	Nylon Resin	83%
Clear	ETFE Fluorine Resin	100%
Solvent Methyl Based	Nylon Resin	78%
Solvent Methyl Based	ETFE Fluorine Resin	100%
Solvent Sulfur Monoxide Based	Nylon Resin	75%
Solvent Sulfur Monoxide Based	ETFE Fluorine Resin	100%
Water-Based	Nylon Resin	88%
Water-Based	ETFE Fluorine Resin	100%
Solvent Coating	Nylon Resin	80%
Solvent Coating	ETFE Fluorine Resin	100%
Two Component Clear	Nylon Resin	88%
Two Component Clear	ETFE Fluorine Resin	100%
Two Component Fluorine Clear	Nylon Resin	90%
Two Component Fluorine Clear	ETFE Fluorine Resin	100%
Fluorine Hardener	Nylon Resin	92%
Fluorine Hardener	ETFE Fluorine Resin	100%
Solvent Based	Nylon Resin	68%
Solvent Based	ETFE Fluorine Resin	95%
Solvent Clear Based	Nylon Resin	88%
Solvent Clear Based	ETFE Fluorine Resin	98%
Solvent Conductive Primer	Nylon Resin	80%
Solvent Conductive Primer	ETFE Fluorine Resin	100%
Solvent Primer	Nylon Resin	80%
Solvent Primer	ETFE Fluorine Resin	100%

Smaller percentage means that the material swells and deteriorates against the chemical. ETFE fluorine resin shows higher paint resistance than Nylon Resin.

This data is measured under the certain circumstances. Thus, depending on the using conditions, environments and duration, this data might not be reliable. The results shown above are NOT guaranteed. Please make sure to check under your working conditions.

(D) Electrical Resistivity Data

Test Sample	Resistance Value Data	Resistance Value Data	Resistance Value Data
Length	1m	5m	10m
E-SV-6.5	20K$\Omega$	21K$\Omega$	23K$\Omega$
E-SV-7	12K$\Omega$	13K$\Omega$	14K$\Omega$
E-SV-9	20K$\Omega$	21K$\Omega$	27K$\Omega$

Measurement method: HAKKO original fittings are attached to both ends, and the resistance value between the fittings is measured by an insulation resistance meter. (However, in order to accurately measure the resistance value for a product with conductive line layers, please do not attach the lead rods on the line layer.)

Notes: The data above are the test values and are not guaranteed values. Please note that data above are NOT guaranteed values. Also, depending on how you measure the resistance value, fittings and the tester maker, the result will vary. Please check the resistance value in your application. If you request electrical resistivity data of other specific length (such as 3m), please contact us.

[POINT!]

Since E-SV includes a ground wire and a conductive PU line [unlike other air hoses only with ground wire], you do not have to pull out the ground wire. This is because the metal fiber and the conductive line resin layer are coiled as spiral. Also, these are contacted with regular intervals, regardless of the hose length. For the hose which only includes carbon, the electrical resistivity goes up in proportion to the hose length. By only attaching our original fittings to the hose, you can eliminate the static electricity charged to equipment such as spray gun. You can reduce the effort to pull out a ground wire.

*For how to measure the resistance value correctly, please take a look at the short video clip below.
